Quick Details
-
Span:
-
7.5-31.5m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YuGong
-
lifting height:
-
6m,9m,12m,18m,24m,30m
-
Limted switch:
-
included
-
Voltage lower protection:
-
included
-
Weight overload protection:
-
included
-
Control model:
-
pedent control, cabin control, and wireless remote control
-
OEM:
-
acceptable
-
Motor:
-
Nanjing/ABM/SEW and etc.
-
Certification:
-
ISO,CE, EAC certificate.
Quick Details
-
Max. Lifting Height:
-
30m
-
Rated Lifting Moment:
-
320KN
-
Max. Lifting Load:
-
32T
-
Span:
-
7.5-31.5m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YuGong
-
lifting height:
-
6m,9m,12m,18m,24m,30m
-
Limted switch:
-
included
-
Voltage lower protection:
-
included
-
Weight overload protection:
-
included
-
Control model:
-
pedent control, cabin control, and wireless remote control
-
OEM:
-
acceptable
-
Motor:
-
Nanjing/ABM/SEW and etc.
-
Certification:
-
ISO,CE, EAC certificate.

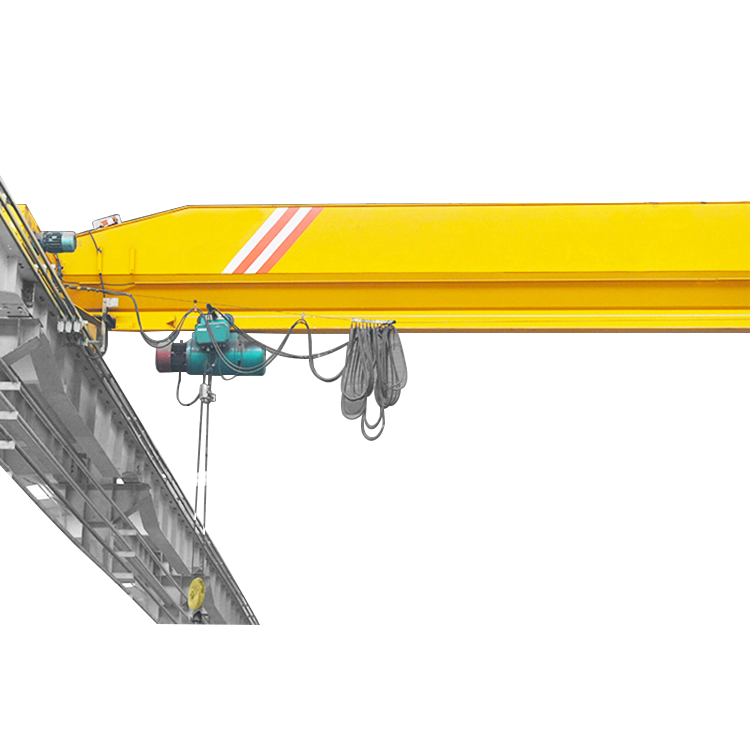

. . . . Single Girder Overhead Crane
|
Lift Capacity: 5t |
Lift Height: 9.6m |
Span: 20.04m |
|
Lift Mechanism |
Type |
5t Electric Hoist |
| Lift Height | 9.6m | |
| Lift Speed | 0.8/8 m/min | |
| Travel Speed | 2-20 m/min | |
| Lift Motor | ZDY141-4 | |
| Travel Motor | ZDY1 21-4 | |
|
Crane Travel Mechanism |
Wheel Dia | Φ270mm |
| Motot | ZDY1 21-4 | |
| Travel Speed | 2-20 m/min | |
|
Wire Rope |
Structure | 6x37 |
| Wire Rope Dia | Φ15 | |
| Power. Supply | Enclosed bus bar(include collector, tighter, and other spare parts) | |
| Control Method | Pendent push button+ wireless remote contor | |
| Type | HD single girder overhead crane with low headroom hoist | |
| Usage | Lift goods, this type more suitable for some place where thd workshop’s self height is limited, at the same time, client have requiremet of lift heitht | |
| Delivery Method | 1 set 40’gp container(the 20.04m main beam is divided into 2 parts to be loaded by container) | |
