Quick Details
-
Brand Name:
-
CanSen
-
Model Number:
-
LW26S-20 0-1 4P S4
-
Max. Current:
-
20A
-
Mechanical Life:
-
100000
-
layers:
-
two
-
Pole:
-
4
-
colour:
-
blue
-
Handle:
-
S4
-
Installation:
-
Plate
-
Certification:
-
CE, TUV,UL
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
690V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CanSen
-
Model Number:
-
LW26S-20 0-1 4P S4
-
Max. Current:
-
20A
-
Mechanical Life:
-
100000
-
layers:
-
two
-
Pole:
-
4
-
colour:
-
blue
-
Handle:
-
S4
-
Installation:
-
Plate
-
Certification:
-
CE, TUV,UL
| Specification | LW26-20 | |||
| LW26-20X | ||||
| LW26-20C | ||||
| Rated insulation voltage | 660/690 | |||
| Rated thermal current | 20 | |||
| Rated working voltage | 24 | 110 | 240 | 440 |
| Rated working current | ||||
| AC-21A | / | / | 20 | 20 |
| AC-23A | / | / | 15 | 15 |
| AC-2 | / | / | 15 | 15 |
| AC-3 | / | / | 11 | 11 |
| AC-4 | / | / | 3.5 | 3.5 |
| AC-15 | / | / | 5 | 4 |
| DC-13 | 12 | 0.4 | 0.4 | / |
| Power | ||||
| AC-23A | / | / | 3.7/2.5 | 7.5/3.7 |
| AC-2 | / | / | 4 | 7.5 |
| AC-3 | / | / | 3/2.2 | 5.5/3 |
| AC-4 | / | / | 0.55/0.75 | 1.5/1.5 |
1.Products Introduction

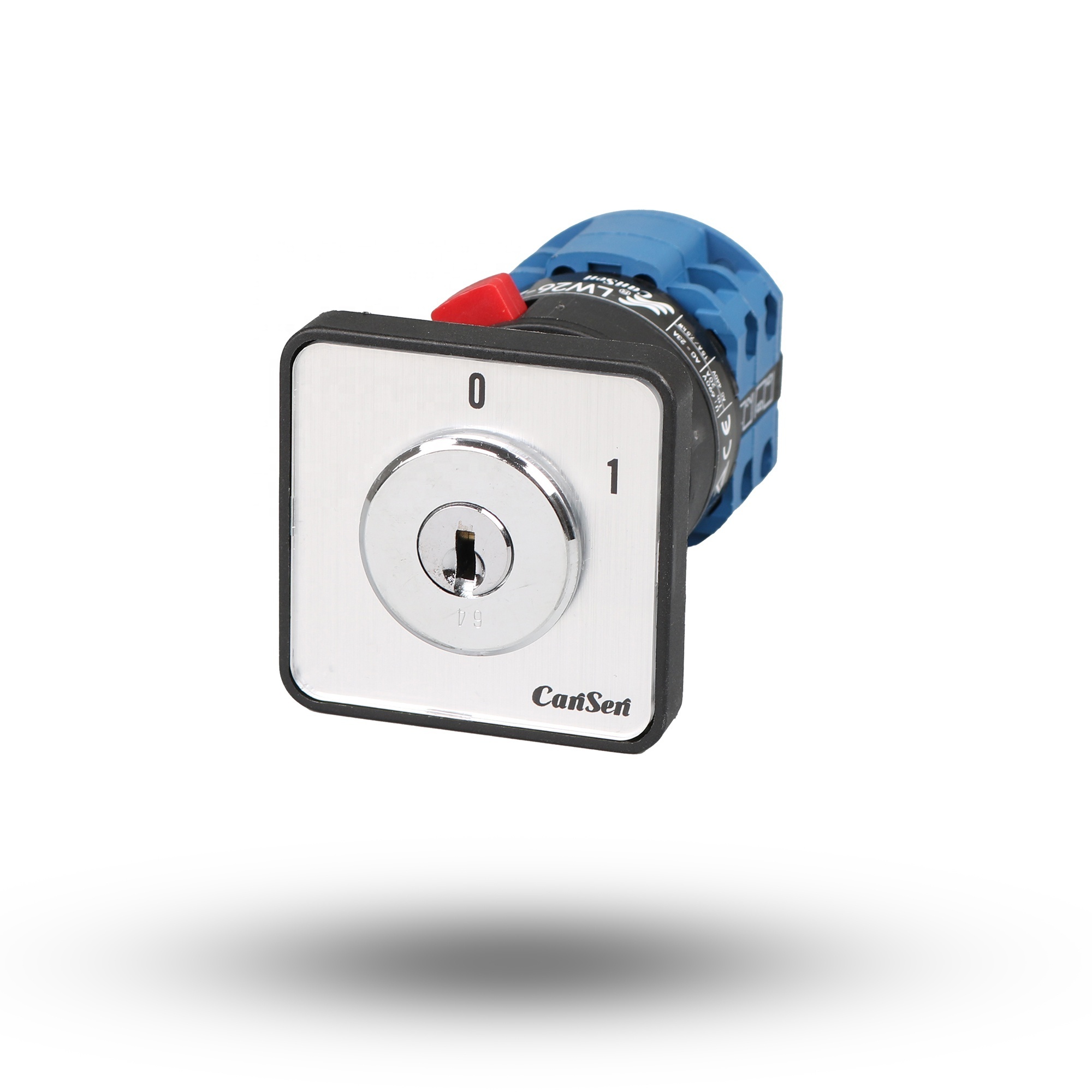

LW26S Key-lock type switch is derivatives of LW26 rotary switch.Installed in equipments,which requires a key to lock the switch.It prevents the unauthorized personnel from mis-operation.
LW26S Key-lock type switch comply with the GB 14048.3 and IEC 60947-3.
2.Working Conditions
a. Ambient temperature DO NOT exceed 40℃, and the average temperature,measured over a period of 24 hours,
DO NOT exceed 35℃.
b.Ambient temperature should not be below -25℃.
c.Should not be isstalled above 2000m above sea level.
d.The humidity should not exceed 50% when the ambient temperature is 40℃ and higher humidity is allowed for lower temperature.
3.Installation Conditions
a. A clean environment is required
b.Please follow our manual
4.Order Procedure
When placing an order please specify the contact diagram of the product you require.The LW26 series rotary switch have the similar contact diagram as the other rotary switches like LW2D,LW5D,LW6D,LW8D,LW12,LW15,HZ5D and HZ25D.Our factory have published<The General Contact Diagram for Cansen Rotary Switches >Which will help you to specify the contact diagram.
In addition,please specify the current rating, mounting plate,handle type,color and quantityas well.
For instance:
When ordering 20A,rotary angle 60°, character code C,contact diagram code 5391, M1 plate, black R handle 20 unites. The order can be: LW26-20.6C5391/2A11R(M1R)20units.
Due to the update of the technologies, we reserve the righting of updating the catalogue without further notices.
