Quick Details
-
Model Number:
-
mini electric valve
-
Brand Name:
-
TOYI
-
Product name,:
-
wifi ball valve water valve wifi automatic shut off valve smart valve
-
Body material:
-
SS304/Brass
-
screw:
-
BSP/NPT
-
Size:
-
DN15~DN32
-
Voltage:
-
DC5V
-
Output Torque:
-
10Nm
-
Operating time:
-
<30S fully open/close
-
Working pressure:
-
Max1.0MPa
-
Protection grade:
-
IP65
-
Type:
-
Electric Motorized Ball Valve
Quick Details
-
Port Size:
-
1/4"~5/4'' 2-way,DN8~DN32
-
Warranty:
-
1 years
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
mini electric valve
-
Brand Name:
-
TOYI
-
Product name,:
-
wifi ball valve water valve wifi automatic shut off valve smart valve
-
Body material:
-
SS304/Brass
-
screw:
-
BSP/NPT
-
Size:
-
DN15~DN32
-
Voltage:
-
DC5V
-
Output Torque:
-
10Nm
-
Operating time:
-
<30S fully open/close
-
Working pressure:
-
Max1.0MPa
-
Protection grade:
-
IP65
-
Type:
-
Electric Motorized Ball Valve
Product Description

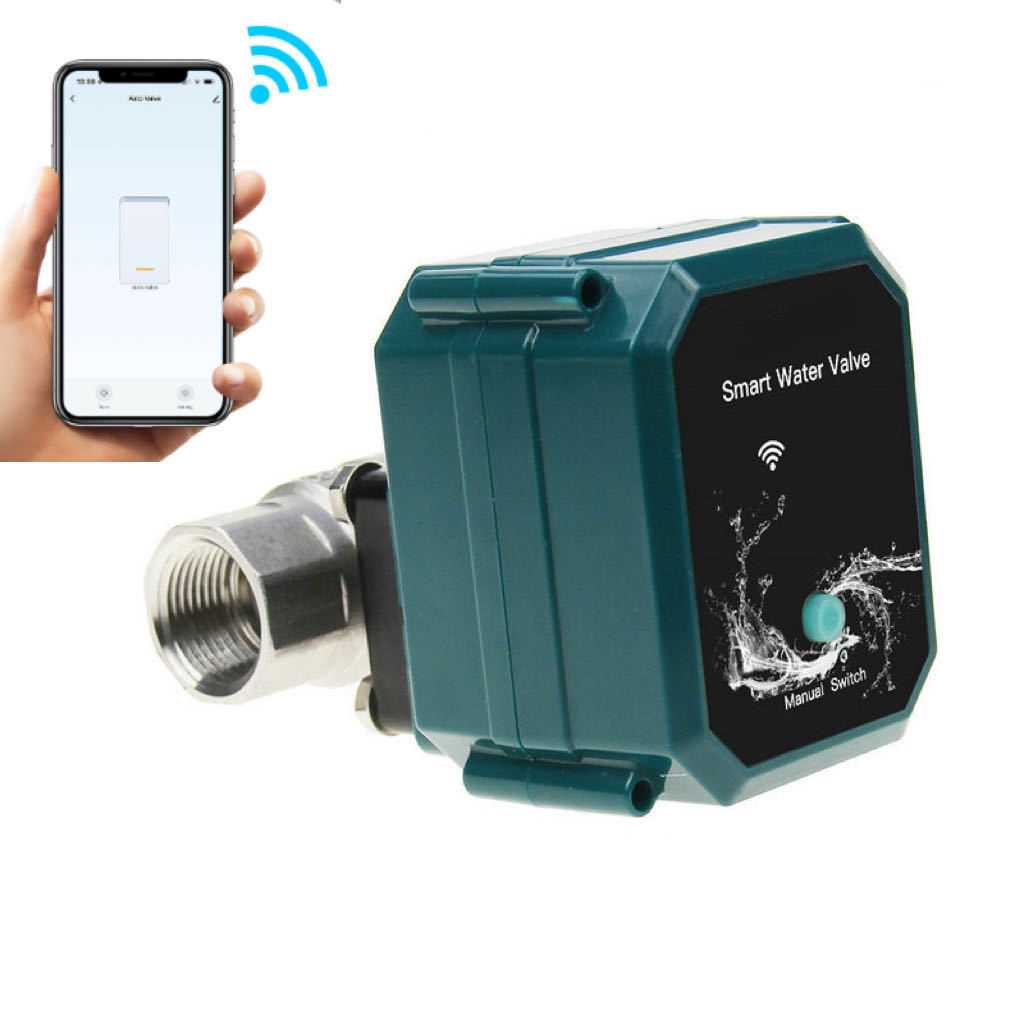

Tuya wifi ball valve wifi water valve wifi automatic shut off smart valve stainless steel brass BSP NPT motorized flow control valve
intelligent wifi water shutoff valve
intelligent wifi water shutoff valve
|
Body size
|
DN15-DN32
|
Voltage
|
DC5V
|
|
Output torque
|
10NM
|
Fully open/close time
|
<30s
|
|
Transmission mode
|
WIFI
|
WIFI frequency
|
2.4G
|
|
Motor power
|
<5W
|
Working current
|
<200mA
|
|
Medium temperature
|
0-90℃
|
Protect level
|
IP65
|
This product is widely used for various liquid, gas, pressure, temperature and other needs
1. University laboratories, automobile laboratories;
2. Drug production, diesel energy saving, etc.;
3. University water-saving, automatic control system, industrial automatic control and other small equipment;
4. Environmental protection, water supply and drainage, and water treatment projects;
5. Places solenoid valve can not be used normally;
6. Water-saving appliances, drinking water equipment,
1. University laboratories, automobile laboratories;
2. Drug production, diesel energy saving, etc.;
3. University water-saving, automatic control system, industrial automatic control and other small equipment;
4. Environmental protection, water supply and drainage, and water treatment projects;
5. Places solenoid valve can not be used normally;
6. Water-saving appliances, drinking water equipment,
*High performance industrial computer core, high torque output; Dn8-dn32 diameter ball valve can be driven.
WIFI wireless connection;
*2.4G frequency transmission, in line with IEEE 802.11b/G/N standard; Remote control of mobile APP;
*Real-time status feedback; Control accuracy: 0.5%~1%; Easy to install, plug and play;
*The electric actuator has two working states: timing mode and Angle adjustment mode;
* Open angle can choose from 10%,20%,30%,40%,50%,60%,70%,80%,90%,100%
WIFI wireless connection;
*2.4G frequency transmission, in line with IEEE 802.11b/G/N standard; Remote control of mobile APP;
*Real-time status feedback; Control accuracy: 0.5%~1%; Easy to install, plug and play;
*The electric actuator has two working states: timing mode and Angle adjustment mode;
* Open angle can choose from 10%,20%,30%,40%,50%,60%,70%,80%,90%,100%
|
Material
|
Caliber size
|
L
|
Фd
|
H
|
|
SS304
|
DN15
|
55
|
15
|
62
|
|
|
DN20
|
63
|
20
|
71
|
|
|
DN25
|
78
|
25
|
81
|
|
|
DN32
|
84
|
32
|
93
|
|
UPVC
|
DN15
|
50
|
15
|
121
|
|
|
DN20
|
62
|
20
|
135
|
|
|
DN25
|
69
|
25
|
150
|
|
|
DN32
|
82
|
32
|
165
|
