Quick Details
-
Insulation Material:
-
PVC
-
Place of Origin:
-
China
-
Model Number:
-
BVVB
-
Product name:
-

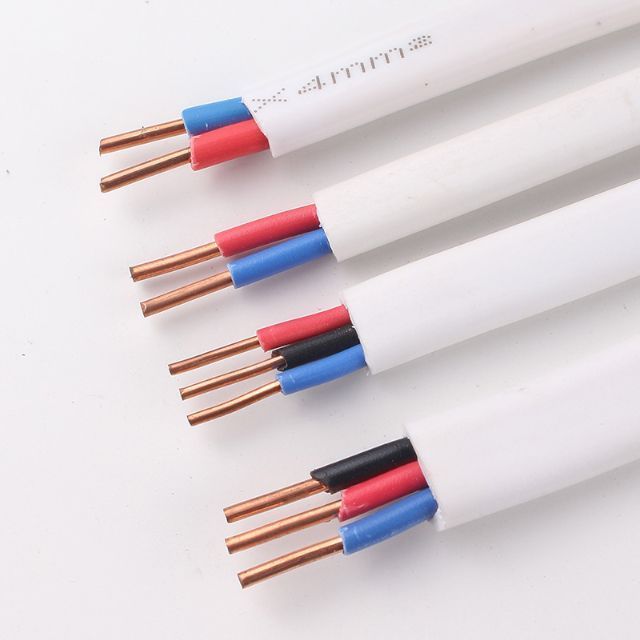

BVVB copper core sheathed cable
-
Material:
-
copper+PVC+PVC
-
Colour:
-
white
-
Rated Voltage:
-
300/500V
-
Certification:
-
CE ROHS
-
MOQ:
-
1000m
-
Sample:
-
free
-
Length:
-
100m/roll
-
Package:
-
Seaworthy Packing
-
Delivery time:
-
within 7 days
Quick Details
-
Application:
-
Underground
-
Conductor Material:
-
Copper
-
Conductor Type:
-
Solid
-
Insulation Material:
-
PVC
-
Place of Origin:
-
China
-
Model Number:
-
BVVB
-
Product name:
-
BVVB copper core sheathed cable
-
Material:
-
copper+PVC+PVC
-
Colour:
-
white
-
Rated Voltage:
-
300/500V
-
Certification:
-
CE ROHS
-
MOQ:
-
1000m
-
Sample:
-
free
-
Length:
-
100m/roll
-
Package:
-
Seaworthy Packing
-
Delivery time:
-
within 7 days
Product Paramenters
1. Product use
The product is suitable for fixed wiring of power plant and electrical equipment with rated AC voltage up to and including 450/750V.
2.operating characteristic
A)U0/U is 450/750V, 300/500V and 300/300V
B) The long-term allowable working temperature of the cable core shall not exceed 70℃
Bv-90 should not exceed 90℃, short-term working temperature can be raised
to 105℃
The cable laying temperature shall not be lower than 0℃
C) Allowable bending radius of cable:
If the cable outer diameter (D) is less than 25mm, it should not be less than 4D
If the cable diameter (D) is 25mm and above, it shall not be less than 6D
3.
Product Technical Parameters
300/500V Copper and aluminum conductor PVC insulated and sheathed flat cable（BVVB、BLVVB）
|
nominal cross section mm2
|
Min number of single wires in a solid or stranded core
|
Nominal insulation thickness mm
|
Nominal thickness of sheath mm
|
Mean Outside Diameter
mm
|
|
Maximum DC resistance of conductor at 20℃
Ω/km
|
|
|
Minimum Insulation resistance at 70℃
MΩ·km |
|||
|
|
|
|
|
lower limit
|
upper limit
|
Copper core
|
tinned copper core
|
aluminum core
|
|
|||
|
2×0.75
|
1
|
0.6
|
0.9
|
3..8×5.9
|
4.6×7.1
|
24.5
|
24.8
|
-
|
0.012
|
|||
|
2×1.0
|
1
|
0.6
|
0.9
|
3.9×6.1
|
4.8×7.4
|
18.1
|
18.2
|
-
|
0.011
|
|||
|
2×1.5
|
1
|
0.7
|
0.9
|
4.4×7.0
|
5.3×8.5
|
12.1
|
12.2
|
-
|
0.011
|
|||
|
2×2.5
|
1
|
0.8
|
1.0
|
5.1×8.4
|
6.2×10.1
|
7.41
|
7.56
|
12.1
|
0.010
|
|||
|
2×4
|
1
|
0.8
|
1.0
|
5.6×9.2
|
6.7×11.1
|
4.61
|
4.70
|
7.41
|
0.0085
|
|||
|
2×4
|
7
|
0.8
|
1.0
|
5.7×9.5
|
6.9×11.5
|
4.61
|
4.70
|
-
|
0.008
|
|||
|
2×6
|
1
|
0.8
|
1.1
|
6.2×10.4
|
7.5×12.5
|
3.08
|
3.11
|
4.61
|
0.0070
|
|||
|
2×6
|
7
|
0.8
|
1.1
|
6.4×10.8
|
7.8×13.0
|
3.08
|
3.11
|
-
|
0.0065
|
|||
|
2×10
|
7
|
1.0
|
1.2
|
7.9×13.4
|
9.5×16.2
|
1.83
|
1.84
|
3.08
|
0.0065
|
|||
|
3×0.75
|
1
|
0.6
|
0.9
|
3.8×7.9
|
4.6×9.6
|
24.5
|
24.8
|
-
|
0.012
|
|||
|
3×1.0
|
1
|
0.6
|
0.9
|
3.9×8.4
|
4.8×10.1
|
18.1
|
18.2
|
-
|
0.011
|
|||
|
3×1.5
|
1
|
0.7
|
0.9
|
4.4×9.6
|
5.3×11.7
|
12.1
|
12.2
|
-
|
0.011
|
|||
|
3×2.5
|
1
|
0.8
|
1.0
|
5.1×11.6
|
6.2×14.0
|
7.41
|
7.56
|
-
|
0.010
|
|||
|
3×4
|
1
|
0.8
|
1.1
|
5.8×13.1
|
7.0×15.8
|
4.61
|
4.70
|
7.41
|
0.0085
|
|||
|
3×4
|
7
|
0.8
|
1.1
|
5.9×13.5
|
7.1×16.3
|
4.61
|
4.70
|
-
|
0.008
|
|||
|
3×6
|
1
|
0.8
|
1.1
|
6.2×14.5
|
7.5×17.5
|
3.08
|
3.11
|
4.61
|
0.0070
|
|||
|
3×6
|
7
|
0.8
|
1.1
|
6.4×15.1
|
7.8×18.2
|
3.08
|
3.11
|
-
|
0.0065
|
|||
|
3×10
|
7
|
1.0
|
1.2
|
7.9×19.0
|
9.5×23.0
|
1.83
|
1.84
|
3.08
|
0.0065
|
|||
