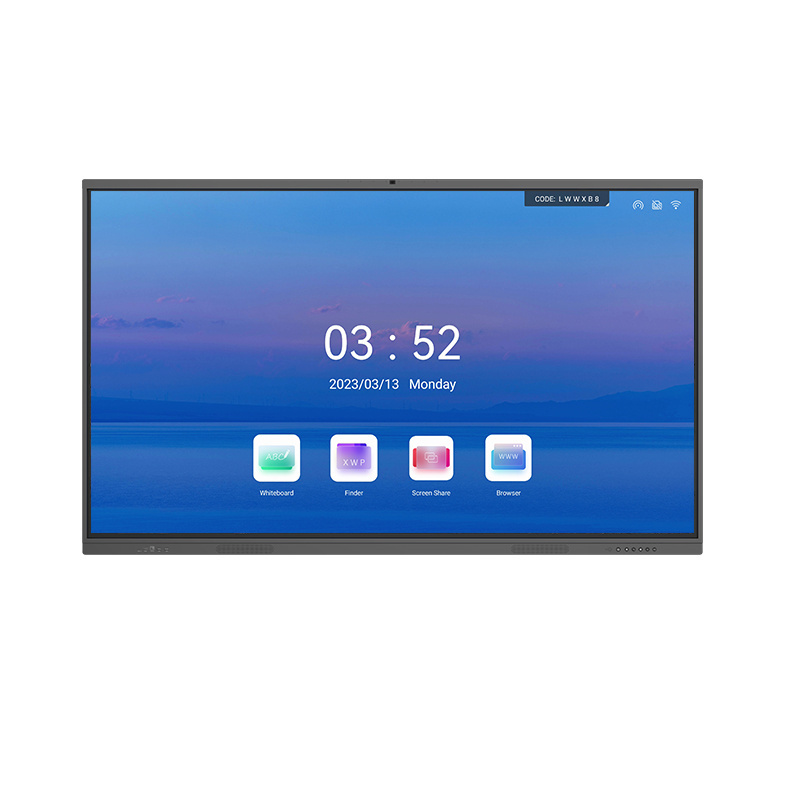

CSOT/BOE A panel 4K capacitive touch interactive white board for the high end meeting or school presentation
CSOT/BOE A panel 4K capacitive touch interactive white board for the high end meeting or school presentation
CSOT/BOE A panel 4K capacitive touch interactive white board for the high end meeting or school presentation
CSOT/BOE A panel 4K capacitive touch interactive white board for the high end meeting or school presentation
CSOT/BOE A panel 4K capacitive touch interactive white board for the high end meeting or school presentation
CSOT/BOE A panel 4K capacitive touch interactive white board for the high end meeting or school presentation
CSOT/BOE A panel 4K capacitive touch interactive white board for the high end meeting or school presentation
CSOT/BOE A panel 4K capacitive touch interactive white board for the high end meeting or school presentation

CSOT/BOE A panel 4K capacitive touch interactive white board for the high end meeting or school presentation

FOB Reference Price: Get Latest Price
≥5 Pieces
US $939
≥200 Pieces
US $903
≥500 Pieces
US $899
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Model Number:
PR86
Weight:
85kg
Aspect Ratio:
16:9, 16:9
Panel Type:
TFT LED
Packing Dimension:
1706*1022*121mm
Product Dimension:
86 inch
Product Name:
Interactive flat panel display
Bezel color:
Aluminum frame(grey color)
Contrast Ratio:
1500:1
Brightness:
350cd/m2
System support:
Win10/Win8/Win7/Mac OS /Android/Chrome OS/Linux
Screen surface:
4mm thickness Anti-Glare glass
Minimum object size:
2mm
Response Time:
<8 ms
Front Button:
Power on/off

Quick Details

Panel Size:
86 inch
Place of Origin:
Guangdong, China
Brand Name:
Ikinor
Model Number:
PR86
Weight:
85kg
Aspect Ratio:
16:9, 16:9
Panel Type:
TFT LED
Packing Dimension:
1706*1022*121mm
Product Dimension:
86 inch
Product Name:
Interactive flat panel display
Bezel color:
Aluminum frame(grey color)
Contrast Ratio:
1500:1
Brightness:
350cd/m2
System support:
Win10/Win8/Win7/Mac OS /Android/Chrome OS/Linux
Screen surface:
4mm thickness Anti-Glare glass
Minimum object size:
2mm
Response Time:
<8 ms
Front Button:
Power on/off
Product Paramenters
---Ikinor Comference PCAP Touch Interactive Whiteboard Specification---
Product Name
Pcap touch interactive whiteboard
Option Size
65'',75'',86''.
Operation System info
Android version
Android 11 / Android 12
Mainboard solution
T982/311D2
CPU
Core-A55*4 (T982)
Core-A73*4 + A53*4 (311D2)
RAM (option)
4GB,8GB
Touch points
40 points (Win 7/8/10)
20 points touch (Android)
ROM (option)
32GB,64GB,128GB.
Support OS
Windows,Android,mac OS,Linux
Resolution
3840*2160 /UHD
Standard OPS OS
Windows 7/10
OPS CPU (option)
i3/i5/i7
Power of speaker
8Ω15W*2
Built-in camera (option)
13 MP + 8 array MIC
Size of product(mm)
1706*1022*121
Product Type
75''
Size of package(mm)
1958*1171*131
G.W.(KGS)
68
Android interface(I/O)
Front ports
USB3.0*2,Touch USB A*1,HDMI in*1,Type-C*1.
Back ports
Optional ports: HDMI OUT *1, DP IN *1, VGA in *1, VGA AUDIO in *1.
USB 3.0 *2 , RJ45 In/out *2, Type-C 3.0 *1, HDMI In *2, Touchout *2 (Type B),
COAX OUT *1, RS232 *1, OTG-USB 2.0 *1, Earephone/Line out *1.
Front buttons
Indicator: Red/Blue; Lighter Sensor; Power.
Products Description
Ikinor Conference Capacitive Touch Interacrive Display
Advanced Capacitive(PCAP) touch technology

Ikinor PCAP Touch Technology .

Using optical bonding technology improved shock resistance, stress mitigation, increased contrast, reduced parallax and improved luminance.

Ikinor interactive panel is a PCAP touch screen with advanced optical bonding technology, which can respond quickly, display bright images and give users a smooth writing experience.

Advanced Capacitive (PCAP) touch technology - a direct-bonding glass touchscreen to deliver precise responsiveness and the most accurate experience.

Write Fluency & Accurately .

Ikinor interactive panel achieves accurate touch, giving users a smooth writing experience.

Ultra fine touch technology produces a lag-free, pen-on-paper writing experience.

Writing accuracy is greatly improved and participant interaction flows more naturally thanks to real-time response rates, dual-pen recognition and our new 3mm tipped pens.

Ikinor IFP front quick access & Easy Connectivity .

USB-C connectivity provides up to 60W power delivery for convenient charging of your peripherals and accessories.

Designed for simple use, the Ikinor IFPs offers a USB-C port as part of its comprehensive connectivity.

With this one-cable-solution, simply plug-in any compatible device for instant multimedia playback, data transfer, and power charging while enjoying a clutter-free space.
