Quick Details
-
Brand Name:
-
JXPC or OEM
-
Material:
-
box
-
Medium:
-
Compressed Air
-
Max. Working Resistance:
-
1.7 MPa(250psi)
-
Working Temperature:
-
-5~80℃(No Freeze)
-
Filter Bowl Capacity:
-
8500cc
-
Container Cup Material:
-
Water Cup: metal
-
Nominal Flow Rate:
-
600cfm
-
Port size:
-
2 inch
-
Filter element:
-
0.01 micron
Quick Details
-
Weight (KG):
-
17.5
-
Marketing Type:
-
New Product 2022
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JXPC or OEM
-
Material:
-
box
-
Medium:
-
Compressed Air
-
Max. Working Resistance:
-
1.7 MPa(250psi)
-
Working Temperature:
-
-5~80℃(No Freeze)
-
Filter Bowl Capacity:
-
8500cc
-
Container Cup Material:
-
Water Cup: metal
-
Nominal Flow Rate:
-
600cfm
-
Port size:
-
2 inch
-
Filter element:
-
0.01 micron

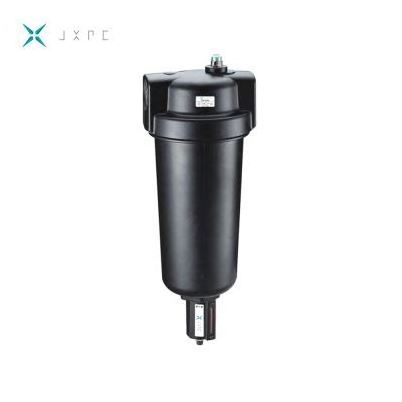

4ZL22 is big size 2 inch pneumatic filter with 0.01 micron, it is widely used in big equipment to ensure good quality air go through the machine.
It also equipped with automatic drain valve that could physically drain out the water when water level goes high.
Features:
1. 0.01μm could provide equipment with high quality air, it remove the wear caused by impurities, thereby improving the equipment’s lifetime.
2.
8500cc’s filter bowl capacity could go with 600 nominal flow rate, high flow and large bowl capacity could give you large capacity cleared air in short time.
| Model Type | Heavy duty with HIgh flow |
| 4ZL22 | |
| Medium | Compressed Air |
| FIlter Precision | 0.01µm |
| Working Pressure | 1MPa(150psi) |
| Max. Working Resistance | 1.7MPa(250psi) |
| Guaranteed Pressure Resistance | 2.5MPa(365psi) |
| Working Temperature | -5~80℃(No Freeze) |
| Filter Bowl Capacity | 8500cc |
| Container Cup Material | Metal water cup: Alumimum die-casting |
| Protective Cover | / |
| Nominal Flow Rate | 600 Cfm |
| Weight | 17.5kg |
| Port Size | NPT 2 |
|
*In order to increase the service life, we suggest you install 5µm' filter which will keep the efficiency of filter precision.
* When the red annunciator shows up, under the circumstance of inlet and
* G, NPT, PT port size is optional. |
|
| Model | A | B | C | D | E | P |
| 4ZL22 | 209 | 207 | 678 | 47 | 80 | NPT2 |
