Quick Details
-
Screen Size:
-
5.7inch
-
Weight:
-
0.5
-
Model Number:
-
S80
-
Place of Origin:
-
China
-
Model:
-
S80
-
Barcode scanner:
-
1D,2D Barcode Scanner Optional
-
RFID:
-
LF(125K)NFC(13.56MHZ)/UHF(900MHZ) Optional
-
OS:
-
Android 9.0
-
Camera:
-
Rear 8.0M Pixels
-
Communication:
-
2G/3G/4G/WIFI/BT/GPS
-
GPS:
-
Built-in GPS
-
Memory:
-
16GB ROM + 2GB RAM
-
CPU:
-
ARM A53 64bitQuad-core CPU(1.3GHz)
-
Certification:
-
FCC, ce, RoHS
Quick Details
-
Operating System:
-
Android
-
Style:
-
barcode scanner
-
Memory Capacity:
-
2G+16GB
-
Screen Size:
-
5.7inch
-
Weight:
-
0.5
-
Model Number:
-
S80
-
Place of Origin:
-
China
-
Model:
-
S80
-
Barcode scanner:
-
1D,2D Barcode Scanner Optional
-
RFID:
-
LF(125K)NFC(13.56MHZ)/UHF(900MHZ) Optional
-
OS:
-
Android 9.0
-
Camera:
-
Rear 8.0M Pixels
-
Communication:
-
2G/3G/4G/WIFI/BT/GPS
-
GPS:
-
Built-in GPS
-
Memory:
-
16GB ROM + 2GB RAM
-
CPU:
-
ARM A53 64bitQuad-core CPU(1.3GHz)
-
Certification:
-
FCC, ce, RoHS

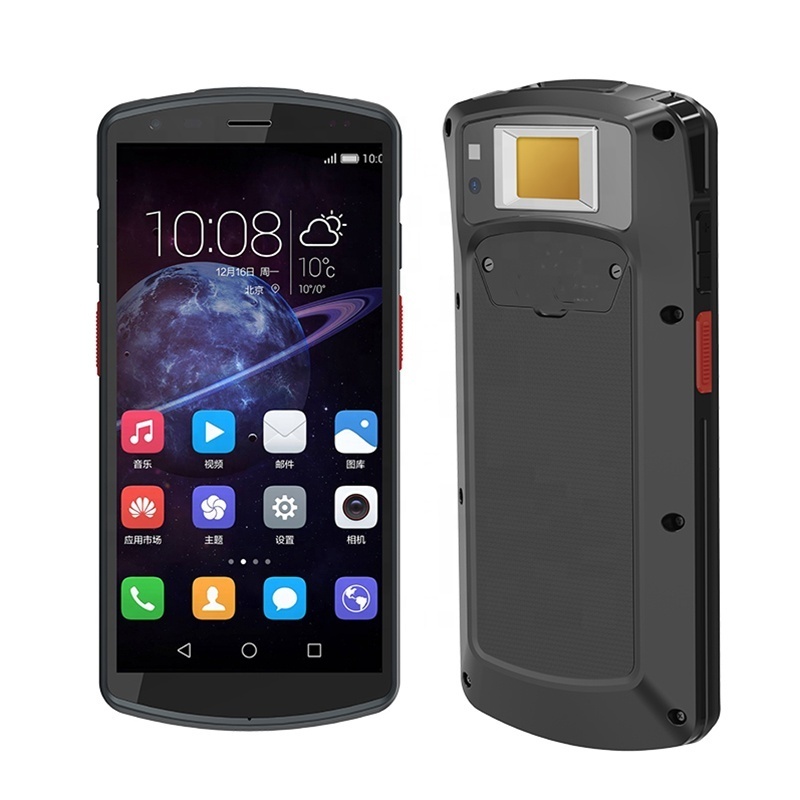

Waterproof Android 9.0 Rugged Industrial handheld Terminal Data Scanner S80 1D 2D Barcode Scanner PDA with Fingerprint Reader
Waterproof Android 9.0 Rugged Industrial handheld Terminal Data Scanner S80 1D 2D Barcode Scanner PDA with Fingerprint Reader
| Structural Parameter | |
| Dimensions | Dimensions 159mm×75mm×18mm |
| Weight | <500g |
| Display Screen | 5.7 inch IPS color display with resolution 720*1440 |
| Expand Port | SIM card, micro SD (TF) Card |
| Communication Interface |
Type-C USB |
| Input Mode | Standard Stylus, Handwriting, touching input or keyboard input,Function key×4 |
| Battery Capacity |
Rechargeable polymer battery (3.8V 4200mAh) removable |
| Frequency | 8ohm 1W speaker |
| Key | Silicone button |
| Performance Parameter | |
| OS | Android 9.0 |
| CPU |
Cortex-A53 Octa-core 64-bit 2.0GHz high-performance processor |
| RAM | 3G/4G RAM |
| Flash ROM | Standard 32G/64G NAND Flash Storage |
| micro SD/TF port (Max up to 128G) | |
| Data Communication | |
| WI-FI |
Dual-band 2.4GHz / 5GHz, Supporting IEEE 802 a/b/g/n/ac protocol |
| FDD/TDD-LTE 4G |
FDD:B1/B3/B4/B7/B8/B12/B20 TDD:B38/B39/B40/B41 |
| WCDMA 3G |
WCDMA(850/900/1900/2100MHz) |
| GSM 2G |
GSM(850/900/1800/1900MHz |
|
BT |
Support BT 2.1+EDR/3.0+HS/4.1+HS Transmission distance 5-10 meters |
| Standard Modules | |
|
Rear camera |
13MP HD camera,Support auto focus, Flash, Anti-shake, Macro shooting |
|
Front camera |
2MP color camera |
|
GNSS |
Support GPS, Galileo, Glonass, Beidou |
| Operating Environment | |
| Operating | -20°C to 55°C |
| Storage Temperature | -40°C to 70°C |
| Environment Humidity | 5%RH-95%RH(no condensation) |
| Drop Specifications |
6 sides Supports 1.5 meters drops and 30 times to the concrete within the operating temperature |
| Roll Specifications |
500×0.5m rolling for 6 sides |
| Sealed Environment | IP66 |
| Fingerprint recognition (Optional) | |
| Sensor | TCS2SS |
| Sensor type | Capacitive Sensor |
| Function | Enrollment, compare, deletion etc. |
| Resolution | 508DPI |
| Memory | 1,000 PCS fingerprints |
| ID card identification (Optional) | |
| Security module | ID verification system dedicated module |
| Distance | 0~5cm |
| Frequency | 13.5MHz±7kHz |
| NFC Reader (Optional) | |
| Frequency | 13.56MHz |
| Protocol |
Support ISO14443A/B, 15693 agreement |
| Range |
2-5cm
|
