Bed was milled by 5 axis CNC central machine,make sure the machine with high precision.
- Product Details
- {{item.text}}
Quick Details
-
Positioning Accuracy (mm):
-
0.01 mm
-
Number of Axes:
-
Single
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
6/9KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Hopetool
-
Voltage:
-
220/380V
-
Dimension(L*W*H):
-
4000x2150x2200 mm
-
Weight (KG):
-
2000
-

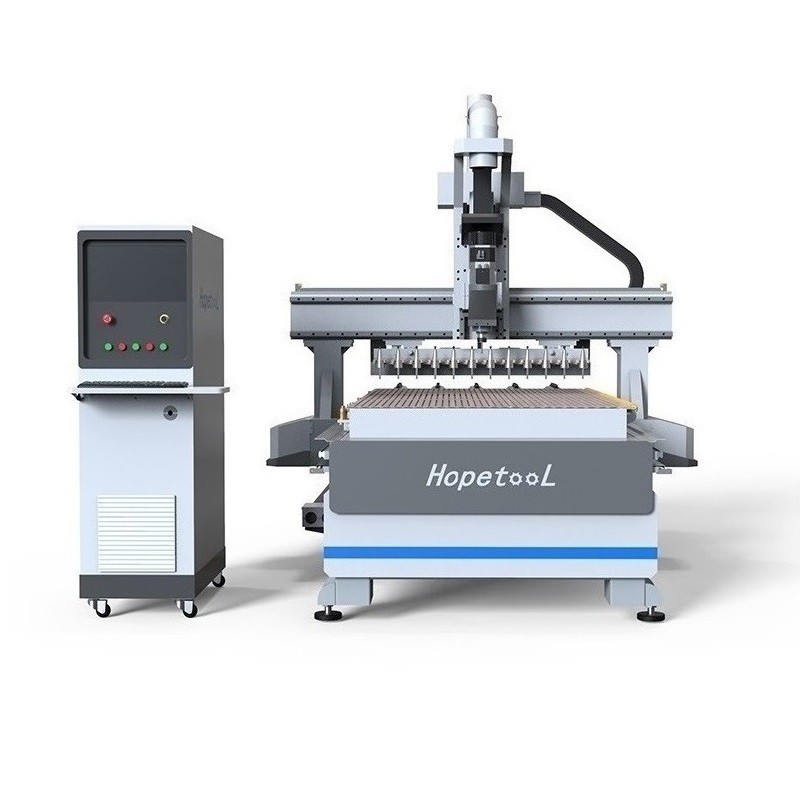

Name:
-
atc cnc router 1325
-
XYZ travel positioning accuracy:
-
±0.03/300mm
-
Lathe Structure:
-
Welded Strucutre
-
Spindle speed:
-
0-24000RPM
-
Table size:
-
1440X3040mm
-
Z Structure:
-
Ball Screw, Shaft Linear Bearings
-
X,Y,Z Working Area:
-
1300X2500X200mm
-
Software:
-
Type3,Ucancam
-
Operating System:
-
SYNTEC
-
Working Mode:
-
Servo
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
6000 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.01 mm
-
Number of Axes:
-
Single
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
6/9KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Hopetool
-
Voltage:
-
220/380V
-
Dimension(L*W*H):
-
4000x2150x2200 mm
-
Weight (KG):
-
2000
-
Name:
-
atc cnc router 1325
-
XYZ travel positioning accuracy:
-
±0.03/300mm
-
Lathe Structure:
-
Welded Strucutre
-
Spindle speed:
-
0-24000RPM
-
Table size:
-
1440X3040mm
-
Z Structure:
-
Ball Screw, Shaft Linear Bearings
-
X,Y,Z Working Area:
-
1300X2500X200mm
-
Software:
-
Type3,Ucancam
-
Operating System:
-
SYNTEC
-
Working Mode:
-
Servo
Products Description
Performance Parameter
Characteristic
:
1)HT-1325E is linear Auto tool change machine, X,Y axises adopt gear-wheel, speed is fast. It adopts domestic no oil vaccum pump
with high efficiency.
2)Adopt Japan yaskawa servo motor ,built-in encoder,It can stop automatically when graunch happens,so can avoid accidents .
3)Italy air cooling spindle or China water cooling spindle with tool change, high power , imported tool holders with high
precision and long lifetime.
4)Whole machine is welded with seamless steel structure, the regidity is good , not easy to be deformed.The gantries adopt steel
structure
5)All adopt imported square oribit, heavy loading, stable working , high precision and long lifetime. Imported ballscrew , high
precision.
6)Taiwan leading control system: The embedded numerical control system based on windows platform can upgrade the functions
infinitively. Anti-interference design of the hard and soft ware synchronistically make sure of the reliable operation. Advance 3D
space curve prediction algorithm can make sure of the evenness of polyline and the speed and precision of curve lines. Advanced
file pretreatment function can correct the error in the files and is compatible with the process codes of multiple national and
international software. (such as Mastercam,Typ3,UG,Artcam,Caxa).
7)6 zones vaccum table, it is a professional wood door making and furniture making machine.
Performance parameter:
1)HT-1325E is linear Auto tool change machine, X,Y axises adopt gear-wheel, speed is fast. It adopts domestic no oil vaccum pump
with high efficiency.
2)Adopt Japan yaskawa servo motor ,built-in encoder,It can stop automatically when graunch happens,so can avoid accidents .
3)Italy air cooling spindle or China water cooling spindle with tool change, high power , imported tool holders with high
precision and long lifetime.
4)Whole machine is welded with seamless steel structure, the regidity is good , not easy to be deformed.The gantries adopt steel
structure
5)All adopt imported square oribit, heavy loading, stable working , high precision and long lifetime. Imported ballscrew , high
precision.
6)Taiwan leading control system: The embedded numerical control system based on windows platform can upgrade the functions
infinitively. Anti-interference design of the hard and soft ware synchronistically make sure of the reliable operation. Advance 3D
space curve prediction algorithm can make sure of the evenness of polyline and the speed and precision of curve lines. Advanced
file pretreatment function can correct the error in the files and is compatible with the process codes of multiple national and
international software. (such as Mastercam,Typ3,UG,Artcam,Caxa).
7)6 zones vaccum table, it is a professional wood door making and furniture making machine.
Performance parameter:
|
Description
|
parameter
|
|
|
||
|
XYZ working area
|
1300*2500*200mm
|
1500*3000*200mm
|
2000*3000*200mm
|
||
|
Table size
|
1440X3040mm
|
1640*3540mm
|
2140*3540mm
|
||
|
X,Y,Z Traveling Positioning Accuracy
|
±0.03/300mm
|
|
|
||
|
X,Y,Z Repositioning Positioning Accuracy
|
±0.01mm
|
|
|
||
|
Lathe Structure
|
Welded Strucutre
|
|
|
||
|
X, Y Structure
|
Gear Wheel Transmission, Shaft Linear Bearings
|
|
|
||
|
Z Structure
|
Ball Screw, Shaft Linear Bearings
|
|
|
||
|
Max.Consume Power
|
20KW
|
|
|
||
|
Max.Speed
|
0-60000mm/min
|
|
|
||
|
Max.Working Speed
|
0-25000mm/min
|
|
|
||
|
Spindle Power Motor
|
9KW ATC spindle
|
|
|
||
|
Spindle Speed
|
0-24000RPM
|
|
|
||
|
Working Mode
|
Servo system
|
|
|
||
|
Working Voltage
|
AC380V/50/60Hz , 3PH
|
|
|
||
|
Command
|
G Code, *uoo, *mmg, *plt
|
|
|
||
|
Operating System
|
SYNTEC or Weihong System
|
|
|
||
|
Interface
|
Internet line
|
|
|
||
|
Flash Memory
|
512M
|
|
|
||
|
Collet
|
ER32
|
|
|
||
|
X,Y Working Delicacy
|
<0.01mm
|
|
|
||
|
Software
|
Type3 software, Wentai software,Artcam software
|
|
|
||
|
Running circumstance
|
Temperature: 0°C~45°C,
Relative humidity: 30%~75%
|
|
|
||
|
Packing Size
|
4000x2150x2200 mm
|
|
|
||
|
Net Weight
|
2000KG
|
|
|
||
|
Gross Weight
|
2300KG
|
|
|
||
Details Images
High quality guide Hiwin brand,make sure with high accuracy.
Taiwan 2 die grinding rack,with high solidity and fast speed.
Have Feeding stick on side, it is easy when put material on side.
Can control the switch ,easy to operate the machine.
