Quick Details
-
Model Number:
-
PT124B-214
-
Name:
-
flush diaphragm Pressure sensor for Food Processing machine
-
Pressure Range:
-
0bar~16bar~700bar
-
Electrical connector:
-
Bendix, Hischman DIN, Gland lead
-
Output:
-
1.5mV/V ; 2mV/V
-
Power supply:
-
10 V DC
-
Operating temperature:
-
-20~80 ℃
-
temperature compensation:
-
0-75 ℃
-
Over load:
-
150%FS
-
Process connection:
-
M20 ,G1/4,G1/2 optional
-
Accuracy:
-
0.5%
Quick Details
-
Warranty:
-
18 months
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
ZHYQ
-
Model Number:
-
PT124B-214
-
Name:
-
flush diaphragm Pressure sensor for Food Processing machine
-
Pressure Range:
-
0bar~16bar~700bar
-
Electrical connector:
-
Bendix, Hischman DIN, Gland lead
-
Output:
-
1.5mV/V ; 2mV/V
-
Power supply:
-
10 V DC
-
Operating temperature:
-
-20~80 ℃
-
temperature compensation:
-
0-75 ℃
-
Over load:
-
150%FS
-
Process connection:
-
M20 ,G1/4,G1/2 optional
-
Accuracy:
-
0.5%
Product Paramenters
|
Name
|

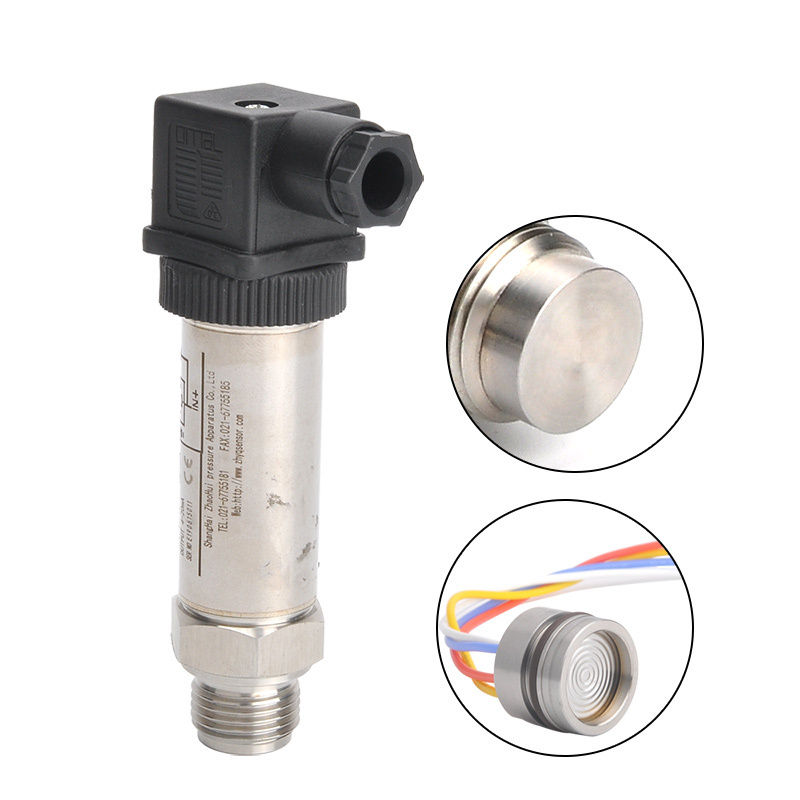

Flush Diaphragm Pressure Transmitter
|
|
Model
|
PT124B-214
|
|
Range
|
0-10bar~800bar
|
|
Accuracy
|
0.5%FS
|
|
Nonlinearity
|
0.2%FS
|
|
Reliability
|
0.2%FS
|
|
Output
|
4-20mA,0-10V, 0-5V, 0.5-4.5V (PT124B-214) ;
1.5mV/V , 2mV/V (PT124G-214) Optional |
|
Input voltage
|
24VDC ( 4-20mA,0-10V, 0-5V output )
5 V DC ( 0.5-4.5V output ) 10V DC ( 1.5mV/V , 2mV/V output ) Optional |
|
Operate Temperature
|
-20~80℃
|
|
Compensated Temperature
|
0~75℃
|
|
Overload Pressure
|
150%FS
|
|
Medium Material
|
Stainless steel (SS304 or SS316)
|
|
Electric Connector
|
Hirschman(DIN), M12(4pins) , 5pins , gland cable, direct cable optional
|
|
Process Connector
|
G1/2, 1/2NPT, M22*1.5(Customer design)
|
|
Housing Shell Diameter
|
Φ26mm, Φ38mm optional
|
Product Information
