Quick Details
-
Voltage:
-
AC220V-440V
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
PUDA
-
Dimension(L*W*H):
-
1.8*1.5*2.0m
-
After Warranty Service:
-
Video technical support, Online support, Field maintenance and repair service
-
Local Service Location:
-
Canada
-
After-sales Service Provided:
-
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Engineers available to service machinery overseas
-
Product name:
-
25kg powder packing machine
-
filling speed:
-
1-4bags/minute
-
weighing range:
-
10-50kg
-
weighing accuracy:
-
±0.2%
-
warrany time:
-
10 years
-
Air source requirement:
-
0.4-0.8Mpa compressed dry air
-
Design:
-
puda design
-
Usage:
-
indoor
-
Certification:
-
ISO9001 and BV
Quick Details
-
Function:
-
FILLING, Sealing
-
Packaging Type:
-
Bags
-
Packaging Material:
-
Paper, Plastic
-
Voltage:
-
AC220V-440V
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
PUDA
-
Dimension(L*W*H):
-
1.8*1.5*2.0m
-
After Warranty Service:
-
Video technical support, Online support, Field maintenance and repair service
-
Local Service Location:
-
Canada
-
After-sales Service Provided:
-
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Engineers available to service machinery overseas
-
Product name:
-
25kg powder packing machine
-
filling speed:
-
1-4bags/minute
-
weighing range:
-
10-50kg
-
weighing accuracy:
-
±0.2%
-
warrany time:
-
10 years
-
Air source requirement:
-
0.4-0.8Mpa compressed dry air
-
Design:
-
puda design
-
Usage:
-
indoor
-
Certification:
-
ISO9001 and BV

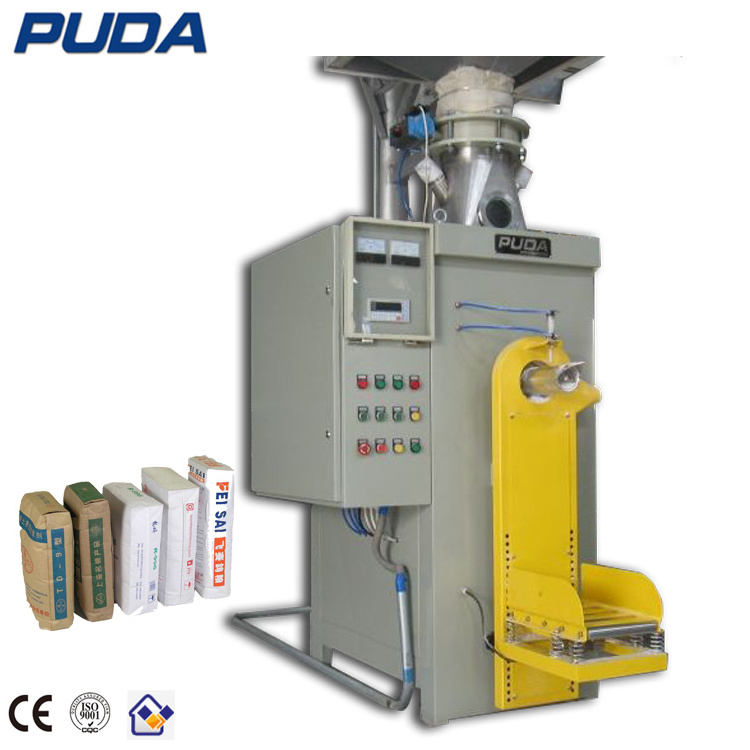

25kg cassava corn starch powder packing machine for plastic bags
Our machines use world famous parts. Such as FESTO Cylinder, Germany Siemens PLC, Japan Unipulse Mating instrument, and France Schneider Mating low voltage apparatus. Ensure your quality!
1.Applications
Our packing machines are customized, can meet different types of bag and material. Such as flour, fertilizer, rice, powder, granule. If you have any requirements, please feel free to contact us. We will provide professional service!
1. Food industry:Starch, Baking powder, Flour Mixes, Cake mixes, Milk Powder, Yeast, Ingredients, Tea, Sugar, Salt, etc.
2.Feed:Supplements, Alfalfa Meal, Fish Meal, Blood Meal, etc.
3.Chemicals:Carbon black , Fertilizers, Pigments, Resins, Heavy calcium carbonate, Gypsum, Titanium dioxide, etc.
4.Minerals:Cement, Clay, Mica, Lime, Stucco, Tile grout, etc.
2.Specifications
1.Valve size: 55mm-89mm
2.Container type: Valve bag with internal self closing or external (tuck-in) valve
3.Filled container weight: 5-50 kg
4.Bag material: Paper, plastic, or woven polypropylene sacks
5.Production rate 1 - 3 Bags/min
6.Product bulk density: 0.5-2.0 ton/m3
7:Accuracy: +-0.2% - 0.4%, depending in the product bulk density, flow characteristics, and parcel size
8.Electrical requirements: 220V/1PH/50Hz; 380V/3PH/50Hz
9.Operating temperature: 2°C-45°C
3.Features and Benefits
1.High quality components that meet the requirements of heavy industry.
2.Consistent and high fill accuracy.
3.Easy to use operator interface with PLC.
4.Advanced dust cleaning technology which promotes cleanliness of the equipment during operation.
5.Low dust emission
6.Easy to clean
7.Adjustable sack support saddle for different sack sizes
8.Fully automation available with options of peripheral equipments
9.Various products are accommodated by a multi-configuration of material inlets and bottom transition hoppers
4.Working Principle:
Material is fed into surge bin through customer`s hopper. The homogenizing system in surge bin agitates the material to vent the gas contained in material out of the bin to prevent bridge forming during packing process. Material is then filled into bags through screw which is controlled by frequency convertor. When reaching the target value, feeding section stops and the filled bag is ready to be manually or automatically discharged. The machine is ready for a new filling circle.
5.Specification and Model:
|
Model |
Weighing Range |
Filling speed |
Accuracy |
Power |
Referenced Weight |
Referenced Size L×W×H(m) |
Proper Application |
|
DCS-CFJL Single Screw |
10-50kg |
1-4 bags/minute |
±0.1-0.4% |
4.5kw |
750kg |
1.4×1.2×1.8 |
Free-flowing Powder |
|
DCS-CFJD Single Screw with Single Agitator |
10-50kg |
1-4 bags/minute |
±0.2-0.4% |
5kw |
800kg |
1.5×1.2×2.0 |
High Bulk Density Powder |
|
DCS-CWJS Single Screw with Twin Agitators |
10-50kg |
1-4 bags/minute |
±0.2-0.4% |
6kw |
850kg |
1.6×1.4×2.1 |
Non-free Flowing Powder with High Air Content |
Packing: wooden case
Shipping : sea shipping or car shipping
1. Payment term: T/T in advance. 30% down payment, balance should be paid by T/T or L/C before shipment.
2. We will do test running and make proper adjustments according to customers’ specific requirement before shipment.
3. Customization is available.
4. What's the information should I let you know if I want to get a detailed quotation?
Please advise your products shape (powder, granule, irregular shape), the grain size and weight of each bag ,bag type, type of package material, packing speed and quantity, etc.
5. Wooden carton package for the machine.
6. Transformer is provided.
7. Technical manual in English is provided.
8. Optional devices can be added to link with our machines.
9. One year warranty.
