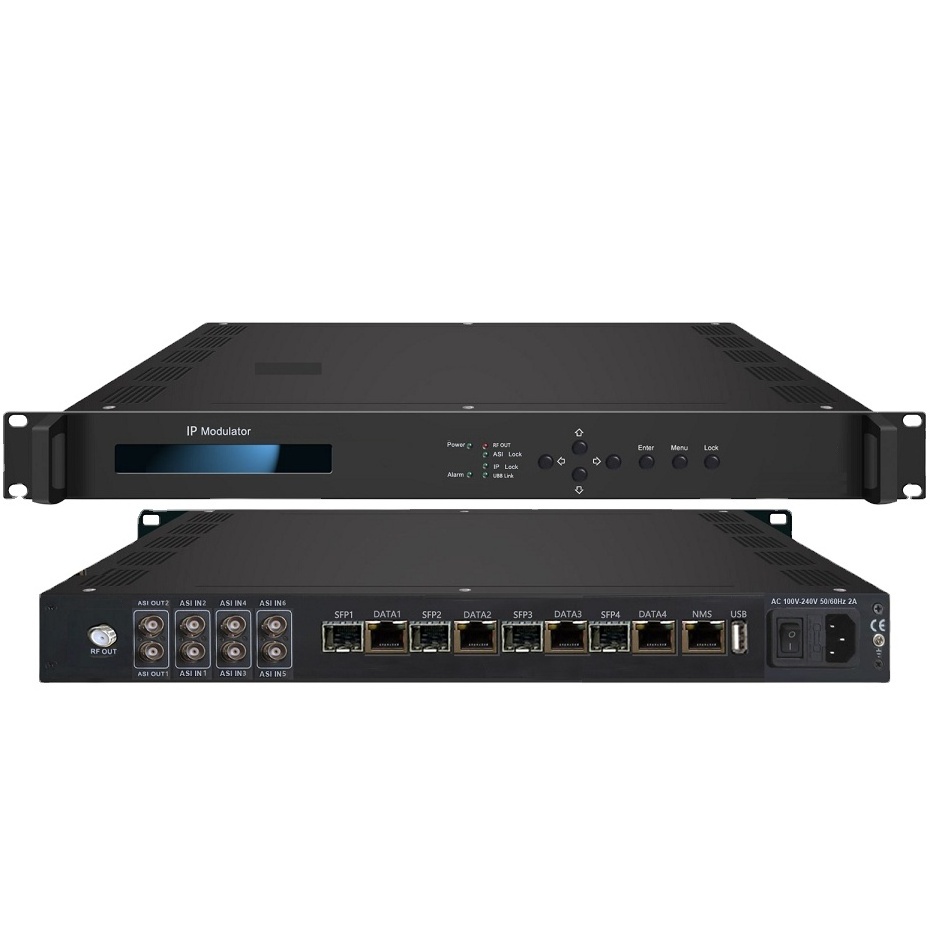

3308M -16RF Output IP to isdbt Modulator Digital IPTV to ISDBT IP/ASI to 16 carriers rf ISDB-T Modulator (DVB-T DVB-C optional)

Product Overview

The Product 8 in1/16in1 ISDB-T /DVB-C/DVB-T/ATSC modulator is the latest generational Mux-modulating device developed by our company . It has 8 (or16) multiplexing channel s and ISDB-T /DVB-T/DVB-C modulating channel s, and supports maximum 192 (or 512) IP input through the 8 GE port s and 8 (or16) ISDB-T non- adjacent carriers (50 M Hz ~ 960 M Hz) output through the RF output interface. The device is also characterized with high integrated level, high performance and low cost. This is very adaptable to newly generation D TV broadcasting system.

Key Features

4 GE SFT and 4 DATA ports for date input and output

M ax 840Mbps for each GE input

S upport s accurate PCR adjusting

Supports CA filtering, PID remapping and PSI/SI editing

Supports u p to 256 PIDS remap ping per channel

S upport 8/16 IP output through Data1 ~ Data 4 over UDP/RTP/RTSP--Version I

S upport 16 IP output through Data1 & Data2 over UDP/RTP/RTSP--Version II

8 (or 16) non- adjacent c arriers output, compliant to ISDB-T b /DVB-T/DVB-C (ARIB STD-B31)

Support Web-based Network management

Advantage:
1.4 SFP input > other suppplier 0 port
2.4 Gigabit input > other suppplier 3 Gigabit port
3.6 asi input > other suppplier 4 asi input
4.USB Video add self-program> other suppplier 0 port
