Quick Details
-
Brand Name:
-
NEKO
-
Model Number:
-
HFS-15
-
Model No:
-
HFS-20
-
Product Name:
-
Flow Switch
-
Media:
-
Liquid
-
Operating Temperature:
-
0℃-80℃
-
Rating:
-
15A /250VAC
-
Max working pressure:
-
1.0Mpa
-
Touch spot life:
-
100000 times
-
Pipe contact:
-
R thread(customized NPT thread or G thread)
-
Protaection grade:
-
IP54
Quick Details
-
Type:
-
Liquid
-
Material:
-
Plastic, Brass, SS, Brass,Stainless steel
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
NEKO
-
Model Number:
-
HFS-15
-
Model No:
-
HFS-20
-
Product Name:
-
Flow Switch
-
Media:
-
Liquid
-
Operating Temperature:
-
0℃-80℃
-
Rating:
-
15A /250VAC
-
Max working pressure:
-
1.0Mpa
-
Touch spot life:
-
100000 times
-
Pipe contact:
-
R thread(customized NPT thread or G thread)
-
Protaection grade:
-
IP54
PRODUCT INFORMATION

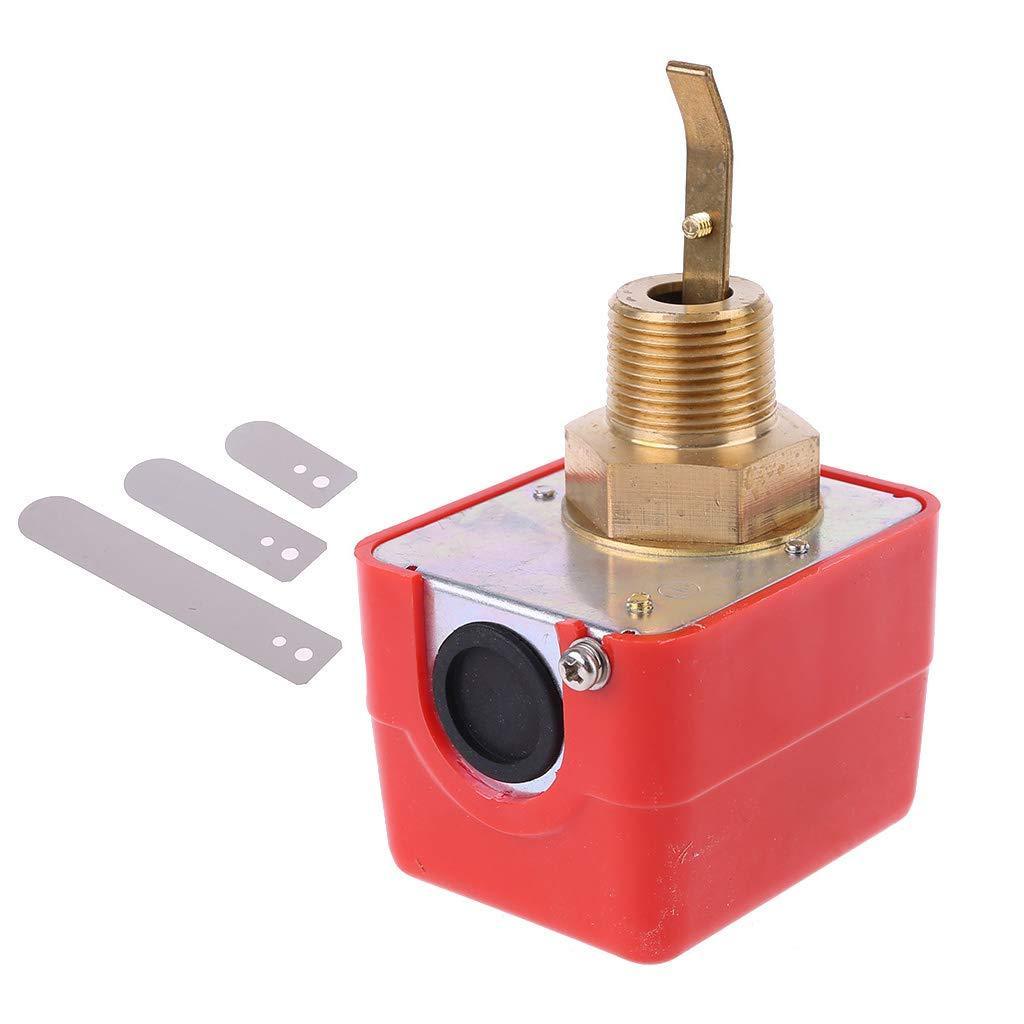

Water Flow Control Switch (HFS-25, HFS-20, HFS-15)
Flow switch is used to sense the flow rate of liquid in the pipe line, when the flow rate reaches the setting point,it turns off (or turn on) to protect the torrential flow.
The setting point could be adjusted according to different request of flow rate.
Paddle type flow switch can be used wherever a simple,economical and reliable monitor instrument.
it can monitor flow in water or other non-corrosive liquid.
PRODUCT SPECIFICATION
|
Model
|
Connection Size
|
Paddle(pcs)
|
Fluid temperature
|
Max.fluid pressure
|
protection class
|
|
HFS-15
|
1/2''
|
3
|
0℃-120℃
|
1.7Mpa
|
IP54
|
|
HFS-20
|
3/4''
|
3
|
|
|
|
|
HFS-25
|
1''
|
5
|
|
|
|
RECOMMEND PRODUCTS
PACKING & SHIPPING
All products, we will pack them carefully, items will be pakaged with PP bag, carton or any other protective stuff if necessarily, then placed in pallets or plywood case. [Fit in international shipment].To make it faster, you can also choose to ship the goods by air, such as DHL, UPS, Fedex, TNT and so on.
CLICK TO CONSULT THE SHIPPING COST.
CERTIFICATIONS
FAQ
|
Q1: Could I get samples?
|
|
|
|
|
||||
|
A1: Yes, Samples can be customized for your test.
|
|
|
|
|
||||
|
Q2: What is the lead time for samples and bulk order?
|
|
|
|
|
||||
|
A2: Sample time is about 3 days, bulk order is about 2 weeks normally.
|
|
|
|
|
||||
|
The specific time depens on your order QTY.
|
|
|
|
|
||||
|
|
|
|
|
|
||||
|
Q3: What's the payment term?
|
|
|
|
|
||||
|
A3: For samples, we require 100% payment in advance.
|
|
|
|
|
||||
|
For custom products, we will require 50% deposit in advance.
|
|
|
|
|
||||
|
|
|
|
|
|
||||
|
Q4: How to place an order to you?
|
|
|
|
|
||||
|
A4:1) you send us your order Qty and requirement through our website forms
|
|
|
|
|
||||
|
2) We quote you the price and delivery time
|
|
|
|
|
||||
|
3) Once price and delivery time confirmed, please send us a formal order including all the details.
|
|
|
|
|
||||
