Quick Details
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
thermal printer ribbon gold foil for carbon ribbon/resin labels
-
Application:
-
Coated paper,thermal transfer,plain paper,rough paper,tag stock
-
Color ribbon Material:
-
Wax, Wax/Resin, Resin,Wash, Color
-
Core Material:
-
Paper /Plastic Roll
-
Printing Method:
-
Heat Transfer Printing
-
Raw Material:
-
original Ricoh,Dynic,Fuji,DNP from Japan
-
Core Diameter:
-
1 Inch or 1/2 inch for ink roll
-
Samples:
-
Available
-
Alternative:
-
Barcode Ribbon/Film Ink
Quick Details
-
Size:
-
30*300
-
Brand Name:
-
Protex Barcode Ribbon
-
Model Number:
-
Protex color ribbon
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
thermal printer ribbon gold foil for carbon ribbon/resin labels
-
Application:
-
Coated paper,thermal transfer,plain paper,rough paper,tag stock
-
Color ribbon Material:
-
Wax, Wax/Resin, Resin,Wash, Color
-
Core Material:
-
Paper /Plastic Roll
-
Printing Method:
-
Heat Transfer Printing
-
Raw Material:
-
original Ricoh,Dynic,Fuji,DNP from Japan
-
Core Diameter:
-
1 Inch or 1/2 inch for ink roll
-
Samples:
-
Available
-
Alternative:
-
Barcode Ribbon/Film Ink

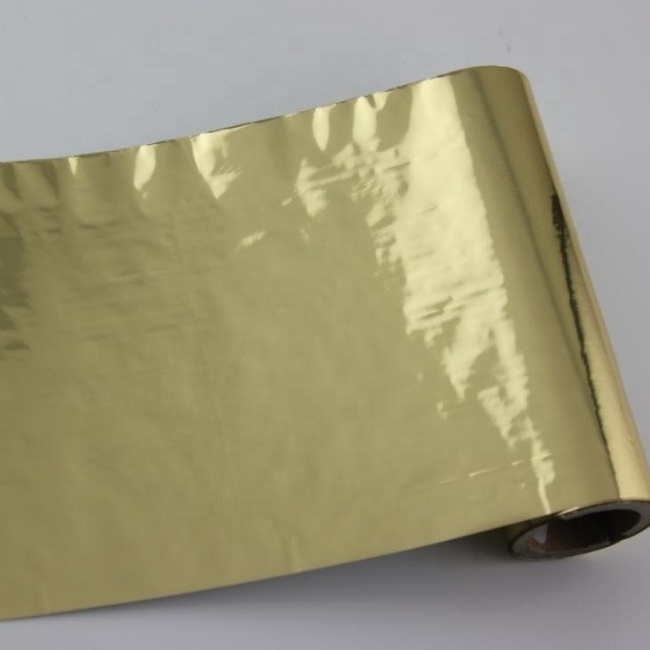

thermal printer ribbon gold foil for carbon ribbon/resin labels
Features of Resin Thermal Transfer Ribbon
1. All outdoor applications, drum labeling, pharmaceutical labeling
2. Excellent heat & chemical resistance
3. High scratch resistance
4. Superior in printing on general wrapping polypropylene
5. Superior in oil and water resistance
6. Cold storage
PRODUCT ATTRIBUTE :
Wax ribbon | Wax/resin | Resin | Washable resin | |
Raw Material | wax |
Semi-wax-based
semi-resin |
Synthetic resin | Special Resin |
Feature |
Economic costs,
Clear print,high-density,high sensitivity |
Combine the avantage of wax and resin ribbon ,high resolution ,Excellent printting result apply various materials | Durability ,abrasion ,high temperature resistance ,excellent print quality | Washable ,durable,high temperature resistance ,can ironing |
Application
Range |
Delivery/Warehouse /Outer casing /Clothing/Logistics/Reatail | Delivery/Warehouse /Outer casing /Clothing /Logistics/Reatail | Fixed assets/Jewelry Industry | Clothing Industry |
Match Lable | Copper paper/Shelf labels /Clothing tag | Copper paper/Shelf labels /Clothing tag | PET/PVC/Jewelry Lable /Cable Lable | Non-woven/Washed Mark/Ribbons,trademark belt |
1.Wax ribbon :
Protex’s multipurpose wax ribbon product line yields excellent results on a broad range of media due to its anti-static coating and high-sensitivity inks. Operating at a low print energy, our products prolong printhead life and produce high-quality barcodes and images.
PT1 Series WAX thermal transfer ribbon Features :
- o Polyester film, color black.
- o Print speed up to 10 inches / second.
- o Recommended on substrates such as thermal
- o transferpolyolefin, polyethylene, Kimdura, Valeron.
- o Applicable prices, bar codes, inventory
Nature |
Wax thermal trasnfer ribbon |
Total Thickness |
7.5±0.5μm |
Penetration Density |
At least 1.2(Macbeth Densitometer) |
Print Speed |
Max.8inch/sec |
Print Energy |
At least 12mj/sq.mm |
Print Density |
At least 1.9(Macbeth Densitometer) |
Grade |
ANSI ABOVE3.5/A(Upright Code) |
Recommended Media Substrates |
Coated Paper/Thermal Transfer Paper |
Scratch Resistance |
Image density:Above80%(Uncoated paper) |
Light Resistance |
Image density:Above70%(Uncoated paper) |
Recommended Applicationsof Resin Thermal Transfer Ribbon
Polyvinyl chloride PVC, Polypropylene PP, Polyethylene PE films, Dumb membrane materials material
ITEM |
SPECIFICATION |
Carrier |
PET Film |
Base Film Thickness (μm) |
4.5±0.1 |
Color |
Black |
Ink Thickness (μm) |
3.1±0.2 |
Ink Melting Point |
80 |
2.Wax/resin ribbon:
Owing to that the exclusive anti-static properties extra printhead protection, our wax/resin ribbons print on a broad range of label stocks, producing higher durability images that can withstand rough handling, abrasion, occasional chemical exposure or outdoor elements.
PT2 Series WAX/RESIN thermal transfer ribbon Features :
- o Wide print latitude to broad range of plastic films, synthetics, and polyesters
- o Strong scratch and smear abrasion resistance
- o Excellent edge definition and print quality at high dpi and print speeds - up to 8 IPS
- o Anti-static formulation and backcoating to prolong print-head life
Base Film thickness |
4.5 +/- .3 micron |
Ribbon thickness |
6.7 +/- .5 micron |
Base Film |
Polyester Film |
Ink Color Printing Density |
> 1.80 Macbeth Densitometer |
Transmission Density |
> 1.00 Macbeth Densitometer |
Sensitivity |
16mj/mm2 |
Recommended maximum |
print speed 8 inches/(203mm) per second |
3.Resin ribbon:
Protex’s elite resin ribbons are formulated specifically for extreme conditions and harsh work environments, delivering consistent high-density bar codes and images and outperforming the competition in abrasion and solvent resistance, as well as printhead protection and life extension.
PT3 Series RESIN thermal transfer ribbon Features:
- o Available in black or in colour
- o Various types of resin ribbons in the range, corresponding with the appropriate customer applications.
- o Multi-layer ribbons inc. excellent reverse coating for optimal protection of the printhead.
- o For plastic labels such as PET, PE, PP and plate-type labels, smooth surfaces
- o Very high abrasion and scratch resistance
Thermal Transfer Ribbon Properties |
|
Film Thickness |
4.5 ± 1.0µ |
Total Thickness |
7.3 ± 1.0µ |
Ink Melting Point |
75~85°C |
Maximum Print Speed |
150 mm/second |
4.Color ribbon
Multiple choices: red, blue, green, white, grey, matt silver, metallic silver, metallic gold.
PRODUCT DISPLAY:
.
