Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Fect
-
Voltage:
-
380V
-
Power:
-
6KW
-
Dimension(L*W*H):
-
2100 x 970 x 1500 mm
-
Weight:
-
1680 kg
-
Marketing Type:
-
paper cup making machine
-
Name:
-
Fully automatic carton one time paper cup making machine manufacturers
-
Keyword:
-
paper carton cup making machine
-
Cup size:
-
40ml-16 oz (other customized size)
-
Production capacity:
-
65-85 pcs/min
-
Suitable Material:
-
150-350g/m2 (Double-coated pap
-
Air source:
-
0.4-0.6 Mpa
-
Product name:
-
carton one time paper cup making machine manufacturers of paper cups
-
Finished Products:
-
paper cup , carton cup, paper glass
-
Function:
-
carton cup making machine
-
Total Power:
-
6KW
Quick Details
-
Production Capacity:
-
65-85 pcs/min
-
Product Type:
-
Paper cup machine
-
Processing Type:
-
Paper cup making machine
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Fect
-
Voltage:
-
380V
-
Power:
-
6KW
-
Dimension(L*W*H):
-
2100 x 970 x 1500 mm
-
Weight:
-
1680 kg
-
Marketing Type:
-
paper cup making machine
-
Name:
-
Fully automatic carton one time paper cup making machine manufacturers
-
Keyword:
-
paper carton cup making machine
-
Cup size:
-
40ml-16 oz (other customized size)
-
Production capacity:
-
65-85 pcs/min
-
Suitable Material:
-
150-350g/m2 (Double-coated pap
-
Air source:
-
0.4-0.6 Mpa
-
Product name:
-
carton one time paper cup making machine manufacturers of paper cups
-
Finished Products:
-
paper cup , carton cup, paper glass
-
Function:
-
carton cup making machine
-
Total Power:
-
6KW

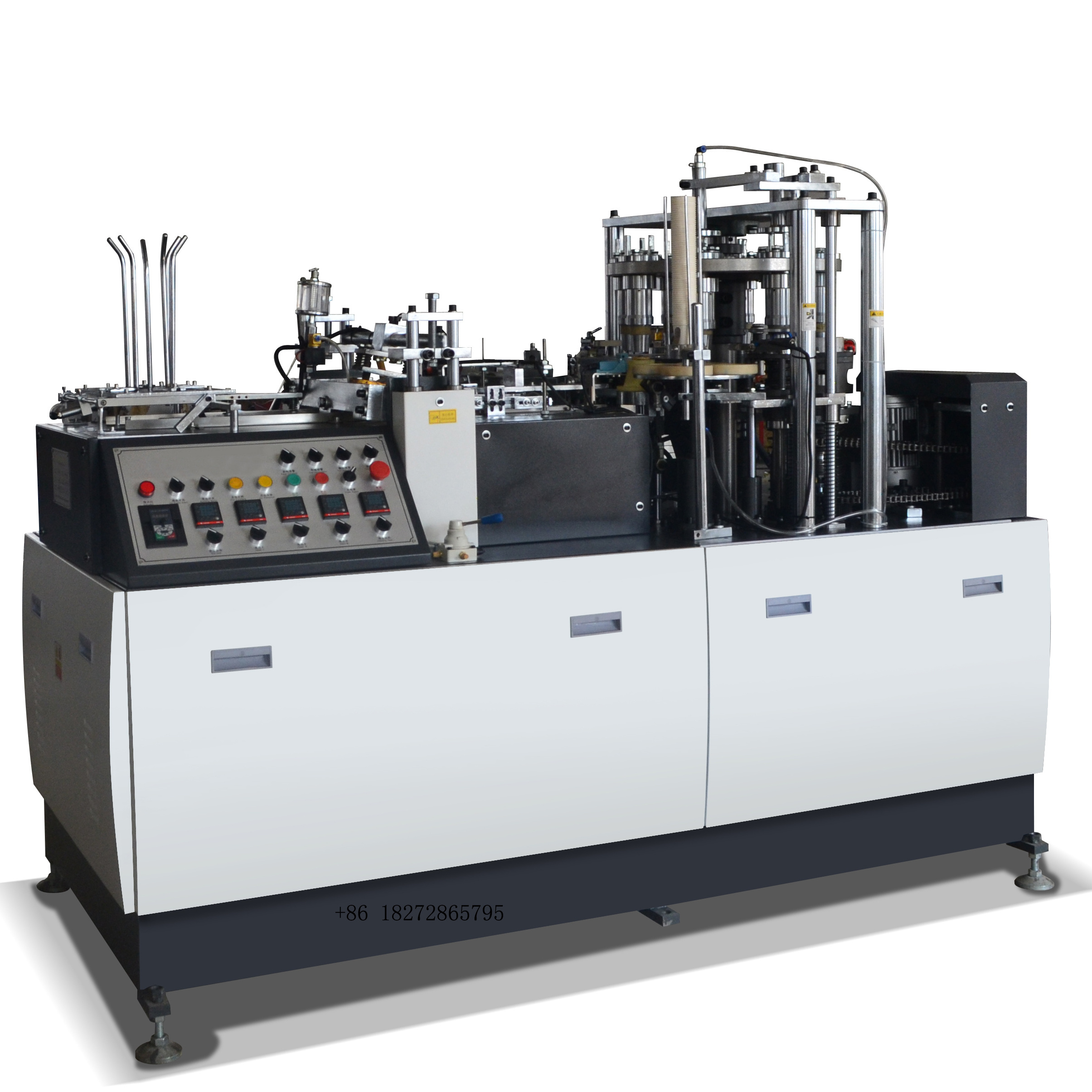

Fully automatic carton one time paper cup making machine manufacturers of paper cups
♦Description♦
PFD-9 automatic Double coated paper cup making machine is a multi station automatic molding machine, it has automatic paper feeding, cup wall sealing (ultrasonic sealing), cup bottom punch and insert to cup wall, bottom pre-heating, main heating , bottom knurling, top curling, discharging and collecting .
Built-in ultrasonic, save the external space of the machine, reduce the size of the machine and reduce the area occupied by the machine
It is ideal equipment for making both hot drinking paper cups for (coffee, tea, soup, food, snacks, etc).
♦Technical Parameters♦
|
Type |
PFD-9 |
|
Cup size: |
40ml- 1 6 oz ( other customized size ) |
|
Production capacity |
65-85 pcs/min |
|
Power source: |
380V / 220V 50HZ( please inform us your power in advance ) |
|
Suitable Material: |
1 5 0- 35 0g/m2 ( Double -coated paper) |
|
Air source |
0.4-0.6 Mpa |
|
Total Power: |
6 KW |
|
Weight: |
1 680 KG |
|
Machine size |
2 1 00 x 970 x 1 5 00 mm |
|
Package size: |
2200 x 1100 x 1900 mm (4.598CBM) |
|
|
A: top diameter: Min 4 6 mm---Max 1 1 0mm B: bottom diameter Min 35mm---Max 7 0mm C: total height Min 32 mm---Max 13 2 mm |
♦Features♦
|
Light Eye Detection The encoder and the light eye control the machine at the same time, a fan-shaped plate with a cup bottom to avoid waste. Failure alarm, automatic shutdown. |
|
|
Sheave drive The inside of the machine is connected by groove wheels, and the parts are more tightly connected. It is not easy to loosen during the operation of the machine and the work is more accurate |
|
|
Bottom punching system In the past, the complicated paper feeding process of the bottom suction paper was prone to overturning. After improving the equipment, the direct bottom punching method was used to avoid the bottom turning in one step. |
♦Details♦
For more related products, please click here:
|
Package detail |
Wooden case/ Fully automatic carton one time paper cup making machine manufacturers of paper cups |
|
Package size |
2200 * 1100* 1900 mm (4.598CBM) |
|
Gross weight |
1680KG |
