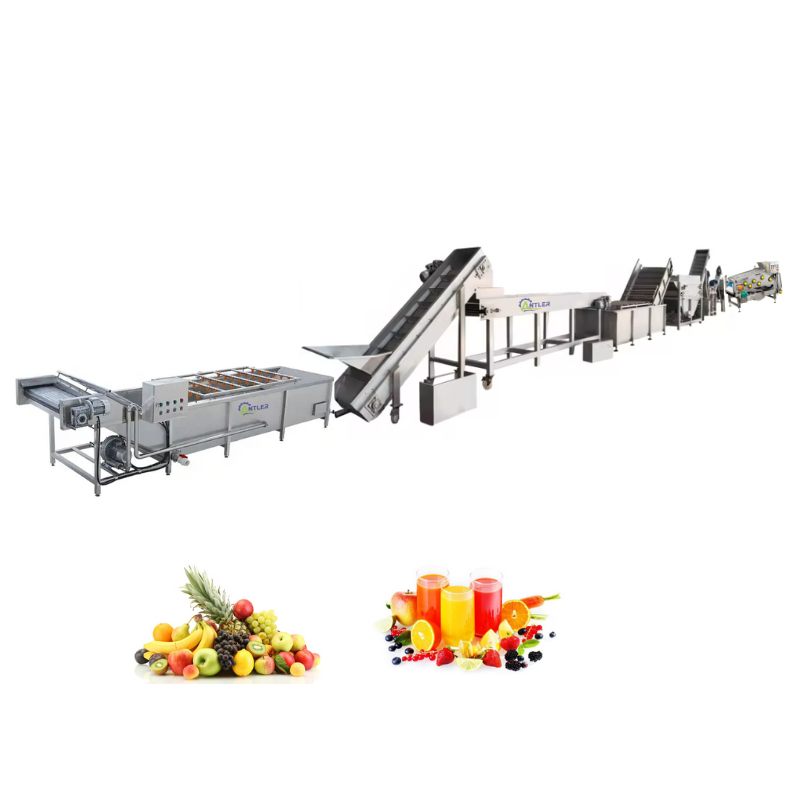

Complete Set Apple Juice Production Line Watermelon Juice Processing Plant

Complete Set Apple Juice Production Line Watermelon Juice Processing Plant

FOB Reference Price: Get Latest Price

≥1 Sets

US $150000

≥2 Sets

US $140000

≥3 Sets

US $130000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: Customized

Power:: 2200

Weight:: 4500 KG

Dimension(L*W*H):: 4800*3800*2200

Year:: 2023

Product name:: Fresh Fruit Juice Processing Line

After-sales Service Provided:: Service Machinery Overseas

Material:: 304 Stainless Steel

Advantage:: Easy Operation High Efficiency

Capacity:: 500-1000kg/h

Raw material:: Fresh Fruit Vegetable

Package:: Standard Wooden Case

MOQ:: 1 Set

Color:: Customers' Requirements

Final product:: Fruit Juice

Quick Details

Place of Origin:: Jiangsu, China

Brand Name:: Antler

Type:: Fruit juice processing line

Voltage:: Customized

Power:: 2200

Weight:: 4500 KG

Dimension(L*W*H):: 4800*3800*2200

Year:: 2023

Product name:: Fresh Fruit Juice Processing Line

After-sales Service Provided:: Service Machinery Overseas

Material:: 304 Stainless Steel

Advantage:: Easy Operation High Efficiency

Capacity:: 500-1000kg/h

Raw material:: Fresh Fruit Vegetable

Package:: Standard Wooden Case

MOQ:: 1 Set

Color:: Customers' Requirements

Final product:: Fruit Juice

Product Description

Final Products for Reference

Processing Line

The Bottle Juice Filling complete production line includes:

1> PET bottle blow molding machine
2> Juice blending system
3> Water treatment system
4> Bottle washing filling and capping machine
5> Bottle cooling tunnel
6> PVC shrink sleeve / OPP hot glue / Adhesive sticker labeling machine
7> PE film packaging machine / Carton packaging machine
8> Automatic palletizer

Bottle blowing system

1> Blow moulding machine 1,000-24,000bph, and 0.25-2L PET bottles are available.

2> It is widely used to produce the carbonated
bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle, etc.
3> The man-machine interface is highly automated and easy to operate.
4> The compact machine occupies a smaller area.
5> The simple slide-in way of mold mounting makes it possible for the operators to change molds easily within 30 minutes.

Juice blending system

1--SUGAR / RAW MATERIAL MELTING SYSTEMHigh-shear emulsifying tank / Centrifugal pump / Duplex bag filter Plate heat exchagner / Electric cabinet / CIP back pump
2--MIXING SYSTERM
Raw material mixing tank / Centrifugal pump
Duplex pipeline filter /Electric cabinet / CIP back pump
3--TUBULAR STERILIZING AND HOMOGENOZER SYSTEM Tubular full automatic sterilizer / Vacuum degasser / Homogenizer Juice storage tank / Centrifugal pump / Electric cabinet / CIP back pump

Water treatment system

1> Pre-treatment system (water tank / multi-medium filter / active carbon filter / ion exchanger / precious filter)
2> Membrane separation system (ultrafilter / nanometer filter / RO reverse osmosis system)
3> Electrodialysis device / Sterilization system (UV device, ozone device) product water tank and so on.

4> Used for pure water, mineral water and other bottled water，water for food and beverage production.

Bottle washing filling and capping machine

1> Juice filling line production capacity is usual in 1,000-36,000bph, 0.25-2.5L PET bottles are available.
2> Juice filling line can apply to fill fruit juice, energy drink, hot tea drink into PET bottle by changing few spare parts.
3> Automatic juice filling machine adopts rinsing, filling and capping 3-in-1 technology, PLC control, touch screen. It is mainly made of SUS304/ SUS316.
4> Pivotal electrical parts adopt Mitsubishi, OMRON, and SIEMENS for juice filling production line.

Bottle Washing

Juice Filling

Bottle Capping

Bottle cooling tunnel

1>It is with the advantages of sterilizing temperature automatic control and adjustable sterilizing time.
2> It can be designed and made to the sterilization conditions and production provided by the customer.
3> It can be widely used in sterilizing and cooling of juice and beverage in various bottles and cans, electrolyte beverage, wine and condiments. It adopts warm water to preheat, sterilize with recycling hot water, recycling warm water to pre-cool, and cooling water to cool.

PVC Shrink sleeve labeling machine

1> The mainly used for container labeling cylindrical, square or other special shapes of detergents, beverages, mineral water, food, etc.
2> Labeling machine is controlled by PLC touch screen, all-electric eyes are using imported advanced configuration.

3> High speed, high accuracy, stable performance.
4> Easy to operate and look elegant appearance.

Auto PE Film wrapping shrink packing machine

1> Compact &artistic shape. The frame is novel, unique.
2> Electronic induction feeding film, action is balanced and quickly replacing film.
3> Isothermal sealing cutter .The seal intensity is above cooling sealing cutter 3 times, the seal is even and the life is above cooling sealing cutter 80 times.

Specification

Item	Data
Raw material	Fresh fruit ( Apple ,pear, mango, pineapple, orange, peach, apricot ......)
Finished product	Juice , puree , concentrate
Packaging	Plastic/glass bottle , Tin cans , Aseptic bricks / bag, pouch etc.
Processing capacity	Input fruit 500kg - 20000kg per hour
Filling Speed	2000-24000BPH
Working voltage	380V 50Hz (to be customized)
Filling Temperature	Hot Fiiling
Layout	As per equipment list

The project will be designed base on below information and we shall prepare the quotation accordingly.

1. Raw material : which fruit or vegetable ?
2. End product : juice ? puree or concentrate ?
3. Request processing capacity per hour ?
4. Request packaging for end product ?
Note : Different fruit may requires different juicing system
