Quick Details
-
Brand Name:
-
Mayatech
-
Model Number:
-
DLE35RA
-
Size:
-
230*246*143mm
-
Quantity:
-
1 pcs
-
Tool Supplies:
-
Assembled class
-
RC Parts & Accs:
-
Engines
-
For Vehicle Type:
-
Airplanes
-
Remote Control Peripherals/Devices:
-
Motor
-
Material:
-
Metal
Quick Details
-
Use:
-
Vehicles & Remote Control Toys
-
Type:
-
Engine
-
Place of Origin:
-
China
-
Brand Name:
-
Mayatech
-
Model Number:
-
DLE35RA
-
Size:
-
230*246*143mm
-
Quantity:
-
1 pcs
-
Tool Supplies:
-
Assembled class
-
RC Parts & Accs:
-
Engines
-
For Vehicle Type:
-
Airplanes
-
Remote Control Peripherals/Devices:
-
Motor
-
Material:
-
Metal
DLE35 Model Gasoline Engine Two Strokes Single Cylinder Rear Exhaust Natural Air Cooling Hand Start 35CC Emission
Details Images
Product Paramenters

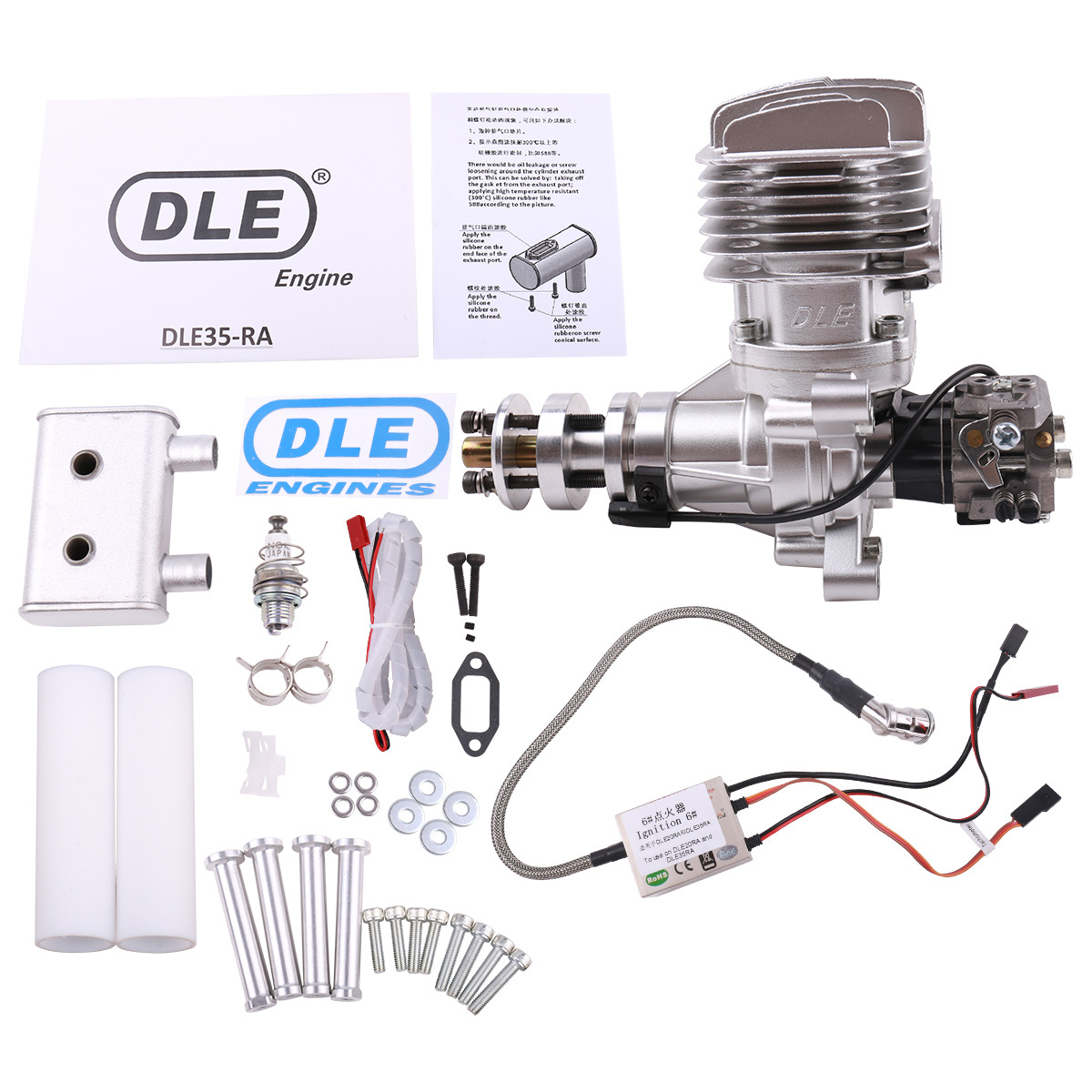

Packing list:
DLE engine * 1
DLE electronic igniter set (CDI) * 1
Carburetor * 1
Engine aluminum column nail set * 1
Exhaust pipe group * 1
Product parameters
performance：4.1HP/8500rpm
Idle speed:1500rmp / min
Tension:9kg / 100M above sea level，7.8kg, altitude 1800 m
Applicable propeller specification:18*10 19*8 20*8 20*10
Applicable spark plug model: NGK CM6
Exhaust volume：34.9cm³
Cylinder bore × Stroke:38.5mm*30mm
Compression ratio:7.6:1
Lubrication ratio:30:1
Weight of main engine：930g
Weight of exhaust pipe：120g
Weight of igniter：140g
Voltage of igniter：4.8v-8.4v
Note：
If the engine is to be run in or tested on the test bench，There must be a good shock absorber，Otherwise, some parts of the engine may be damaged，It is best to install the engine on the aircraft for running in。
When the engine is running，No one is allowed to be in front of the propeller rotation plane。
If the engine is to be run in or tested on the test bench，There must be a good shock absorber，Otherwise, some parts of the engine may be damaged，It is best to install the engine on the aircraft for running in。
When the engine is running，No one is allowed to be in front of the propeller rotation plane。
Product specification
Net weight of engine: 915g (excluding accessories)
Weight after packaging: 1678g (slight error)
Length after packaging: 246mm width: 230mm height: 143mm
Net weight of engine: 915g (excluding accessories)
Weight after packaging: 1678g (slight error)
Length after packaging: 246mm width: 230mm height: 143mm
