Quick Details
-
Application:
-
Office Building
-
Design Style:
-
Modern
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Kingkus
-
Model Number:
-
Kustar
-
Product name:
-
Kustar PET acoustic panel
-
Material:
-
100% Polyester Fiber
-
Size:
-
915*792*140mm
-
Stock panel thickness:
-
9mm/12mm/24mm
-
Other thickness:
-
3/6/15/18/20mm
-
Color:
-
40 colors
-
Formaldehyde test:
-
EN 717-1 class E0
-
Fireproof test:
-
EN 13501-1 class B
-
NRC:
-
0.8
Quick Details
-
Warranty:
-
More than 5 years
-
After-sale Service:
-
Online technical support, Return and Replacement
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
-
Application:
-
Office Building
-
Design Style:
-
Modern
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Kingkus
-
Model Number:
-
Kustar
-
Product name:
-
Kustar PET acoustic panel
-
Material:
-
100% Polyester Fiber
-
Size:
-
915*792*140mm
-
Stock panel thickness:
-
9mm/12mm/24mm
-
Other thickness:
-
3/6/15/18/20mm
-
Color:
-
40 colors
-
Formaldehyde test:
-
EN 717-1 class E0
-
Fireproof test:
-
EN 13501-1 class B
-
NRC:
-
0.8
KuStar helping you design visually stunning, acoustically-controlled spaces for creative, productive living, working and play. With ceiling-hung 3D acoustic panel, you can transmit your design values while helping room occupants communicate freely and creatively. The diamond facets deflect sound waves while the Kingkus acoustic panel surface absorbs sound, reducing echo and controlling noise.
NRC (SOUND ABSORPTION RATING): SGS
While all Kingkus Acoustic Panel products offer varying degrees of sound absorption, not all have been tested for NRC using the SGS standard test method for sound absorption.
Fire Rating
SGS class B (Class A treatment available)
Available colors
Refer to Kuspanel Standard Colors
Size
792*915*139(Thickness)mm
| Material | 100% Polyester Fiber |
| Size | 915*792*140mm |
| Density | 1900gsm |
| Stock thickness | 9mm/12mm/24mm |
| Other thickness | 3/6/15/18/20mm |
| Colors | 40colors |
| Formaldehyde test | EN 717-1 class E0 |
| Fireproof test | EN 13501-1 class B |
| NRC | 0.8 |
Packaging
Carton Size: 930*810*295mm
G.W.: 10KGS
Quantity: 5 PCS per Carton
Installation and Hardwares

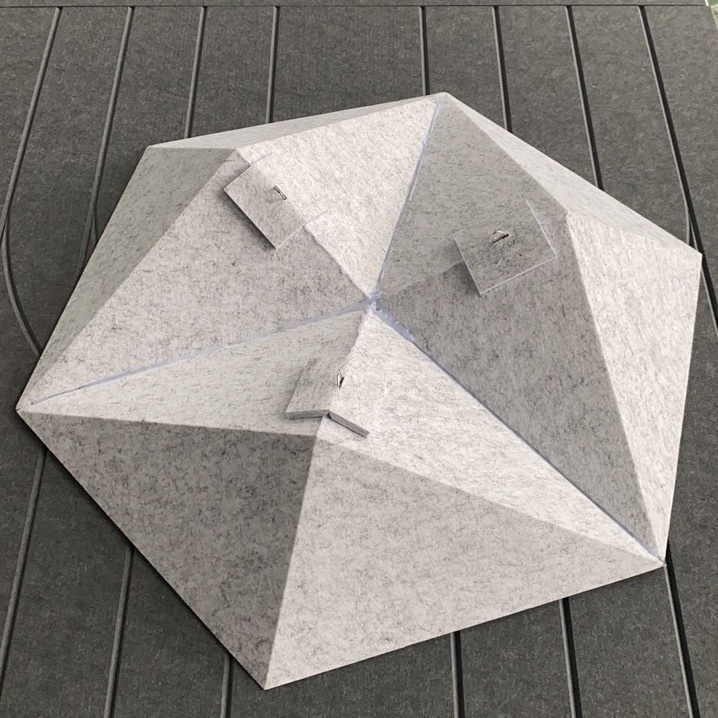

KuStars can be ceiling hung using cable and appropriate ceiling mounts. The suspension clamps have been installed at the back, and three lifting ropes are used to connect the ceiling and Kustars(1 m, 1.5 m, 2 m and 2.5 m ropes are available)
Joiners are used to unify kuStar clusters at each adjoining flat edge where two kuStars meet. When ordering multiple KuStar units to be hung in groups, order one Joiner bracket for each pair of edges where kuStars meet.
10PCS/CARTON. 100PCS/PALLET
