Quick Details
-
Power:
-
3KW
-
Min. Lifting Height:
-
1.5M
-
Table Size:
-
1500*1600MM
-
Overall Dimensions:
-
2000*2000*3000MM
-
Weight:
-
400 kg
-
Application:
-
indoor ,outdoor, widely
-
Battery::
-
4pcs*6/230 v/Ah
-
Voltage::
-
220/380V 50/60hz
-
Tyres::
-
four solid rubber tyres
-
Platform::
-
anti-skid
-
Power source::
-
battery
-
color:
-
according to your reuqest
-
Platform Extend Length:
-
900mm
-
Charger::
-
24/20-30v/ah (can be made as your requirement )
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
MODERN
-
Power:
-
3KW
-
Min. Lifting Height:
-
1.5M
-
Table Size:
-
1500*1600MM
-
Overall Dimensions:
-
2000*2000*3000MM
-
Weight:
-
400 kg
-
Application:
-
indoor ,outdoor, widely
-
Battery::
-
4pcs*6/230 v/Ah
-
Voltage::
-
220/380V 50/60hz
-
Tyres::
-
four solid rubber tyres
-
Platform::
-
anti-skid
-
Power source::
-
battery
-
color:
-
according to your reuqest
-
Platform Extend Length:
-
900mm
-
Charger::
-
24/20-30v/ah (can be made as your requirement )
manual push scissor lift table , electronic hydraulic scissor lift platform

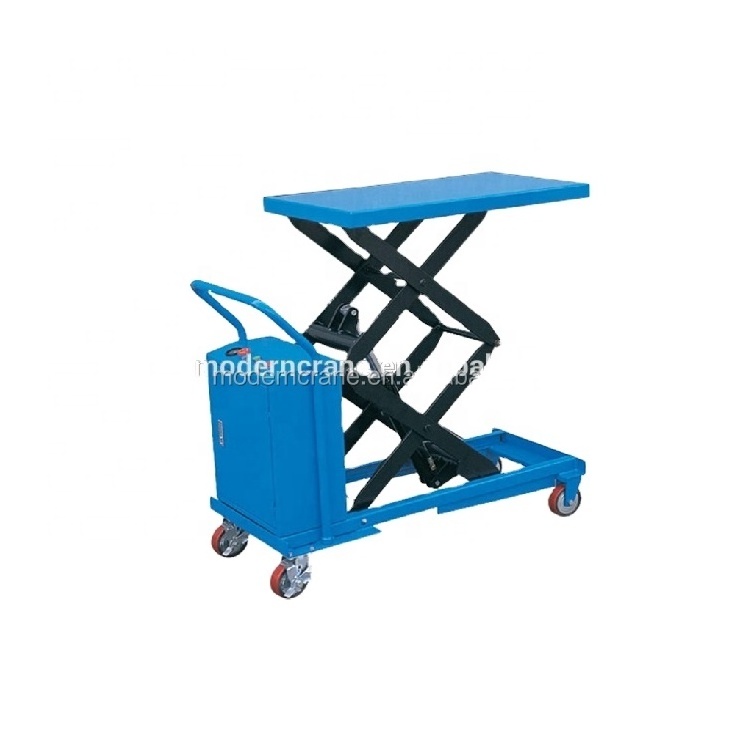

Portable Single Scissor Lift
Ideal for transporting loads to and from work cells, the portable hydraulic single scissor lift can be used as work platforms or raised and lowered to facilitate load transfer to tables or benches.
Specifications:
| Model | PTS1000 | |
| Measurements | Metric | US |
| Raised height | 1700 mm | 5 ft 7 in |
| Lowered height | 500 mm | 20 in |
| Tabletop thickness | 80 mm | 3 in |
| Wheel dimensions | Φ150 mm | Φ6 in |
| Packing Size(L/W/H) | 1370/620/500 mm | 54/24.4/20 in |
| Productivity | ||
| Load capacity | 1,000 kg | 2,200 lbs |
| Platform Size(LxW) | 1200 x 610 mm | 47.2 x 24 in |
| Weight | ||
| Net weight | 225 kg | 496 lbs |
Features:
• This manual portable single scissor lift lifts and lowers heavy cargo for easy loading and unloading.
• Welded all-steel frame with powder-coat finish for maximum durability and protection.
• Dual-Cylinder design provide safety lifting.
• Chromed handle frame is both attractive and durable .
• Convenient foot pump for easy lifting and lowering.
• Moves easily on 4-polyurethane casters, 2 swivel with brakes and 2 rigid.
•
Safety Instruction.
• Double scissor lift provides additional lifting height (Item# 278/2981/300).
•
AC or DC Models are available.
Customized lifts with your size and capacity is available
PICTURE SHOW
According to meet various requirements from customers, we also produce electronic sicssor lift platform with pillars , Manual traction scissor lifting platform,guide rail hydraulic lifting platform , gantry crane , electric
flat car , overhead/bridge crane , jib crane , electric hoist ect. If you have any interests in any of our products , please contect me or view our wedsite for more details.
