Quick Details
-
Rated Capacity:
-
10 t/h (wheat)
-
Application:
-
Dry, granular, free flowing material such as seeds, cereal grains...
-
Total Power:
-
15 kW
-
Screen Area:
-
5.36 m2
-
Selection Efficiency:
-
≥ 98.5%
-
Cleaning Efficiency (Light):
-
≥ 95%
-
Cleaning Efficiency (Heavy):
-
≥ 90%
-
Overall Dimension (LxWxH):
-
4300x2300x2500 mm
-
Supply Scope:
-
We supply complete seed cleaning plant
-
Certification:
-
ISO9001:2008, SGS
Quick Details
-
Place of Origin:
-
Henan, China
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product Name:
-

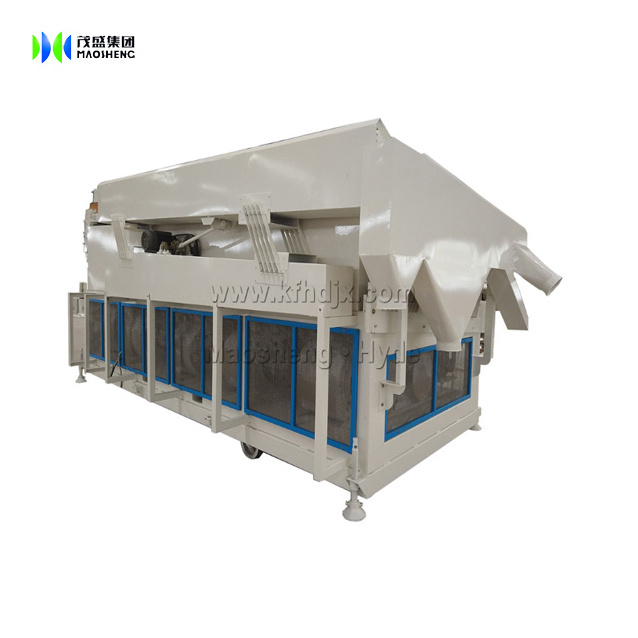

5XZ-10 Corn seed gravity separator machine
-
Rated Capacity:
-
10 t/h (wheat)
-
Application:
-
Dry, granular, free flowing material such as seeds, cereal grains...
-
Total Power:
-
15 kW
-
Screen Area:
-
5.36 m2
-
Selection Efficiency:
-
≥ 98.5%
-
Cleaning Efficiency (Light):
-
≥ 95%
-
Cleaning Efficiency (Heavy):
-
≥ 90%
-
Overall Dimension (LxWxH):
-
4300x2300x2500 mm
-
Supply Scope:
-
We supply complete seed cleaning plant
-
Certification:
-
ISO9001:2008, SGS
Hyde Machinery (Maosheng Group)
- Kinds of Seeds Cleaning Processing line/Plant: 1~100TPH
- Rice/Wheat Flour Milling Line/Plant: 5 ~1000TPD
- Manufacturer Since 1976
Product Overviews
Grain Beans Seeds Cleaning Line/Plant
Seeds Cleaning Plant Drawing
Grain Beans and Seeds Cleaning Machines
5XZ Gravity Table 5X Air Screen Seed Cleaner TQSF De-stoner
HZZD Large Rotary Cleaner TQLZ Vibration Cleaner 5XW Indented Cylinder
Maosheng Roller Mill
(1). Fully pneumatic control can be accomplished by manual control, automatic control and remote centralized control.
(2). Inlet opening is automatically adjusted by incoming flow to ensure the dynamic balance of grain feeding and grinding.
(3).Stable and reliable operation, good milling quality, high precision adjustment, low noise.
Flour Milling Plants
Agricultural machinery big capacity commercial automatic wheat flour milling machine
- Turkey project machine and service available for wheat, maize, buckwheat, barley etc. grain milling.
- Building structure and steel structure.
Technical Specification
Agricultural machinery big capacity commercial automatic wheat flour milling machine
Technical Parameter of MaoSheng MS Series Roller Mill
* Up to Date MSQ and MSJ Roller Mills.
|
Model |
Size (mm) |
Weight (kg) |
Inlet Diameter(mm) |
||
|
φ =D |
φ =d |
||||
|
MSD/Q 125*30*2 |
2060*1676*2006 |
4650 |
160 |
150 |
|
|
MSD/Q 100*25*2 |
1810*1676*2005 |
3950 |
160 |
150 |
|
|
MSD/Q 80*25*2 |
1610*1526*1955 |
2850 |
160 |
150 |
|
Maosheng Group
