Quick Details
-
Table Travel (Z) (mm):
-
150
-
Number of Axes:
-
3/5
-
Brand Name:
-
FEDJET
-
Voltage:
-
220V/380V/415V
-
Rated Power:
-
37KW/50HP
-
Dimension(L*W*H):
-
1200*1200*2200mm
-
Weight (KG):
-
2500 KG
-
Cutting Range:
-
1000*1000mm(X*Y)
-
Cutting Table Structure:
-
Gantry
-
X Axis Route:
-
1000mm
-
Rapid Movement Speed:
-
10m/min
-
Straightness:
-
±0.01mm/m
-
Repeat Positioning Accuracy:
-
±0.01mm
-
Max Swing Angle:
-
10°
-
Cutting accuracy:
-
±0.1mm
-
Cutting Mode:
-
PC i-Telli control system
-
Control Mode:
-
Bus control
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Table Travel (X) (mm):
-
1000
-
Table Travel (Y) (mm):
-
1000
-
Table Travel (Z) (mm):
-
150
-
Number of Axes:
-
3/5
-
Brand Name:
-
FEDJET
-
Voltage:
-
220V/380V/415V
-
Rated Power:
-
37KW/50HP
-
Dimension(L*W*H):
-
1200*1200*2200mm
-
Weight (KG):
-
2500 KG
-
Cutting Range:
-
1000*1000mm(X*Y)
-
Cutting Table Structure:
-
Gantry
-
X Axis Route:
-
1000mm
-
Rapid Movement Speed:
-
10m/min
-
Straightness:
-
±0.01mm/m
-
Repeat Positioning Accuracy:
-
±0.01mm
-
Max Swing Angle:
-
10°
-
Cutting accuracy:
-
±0.1mm
-
Cutting Mode:
-
PC i-Telli control system
-
Control Mode:
-
Bus control
Product Description
1. Name : Best Quality In China Waterjet High Precision Cutting 5axis AB Head
2. Size : 1000mm*1000mm
3. Application: Water jet cutting machine
4. Certification: ISO9001, SGS, CTI, ROHS
|
Product Name
|
Best Quality In China Waterjet High Precision Cutting 5axis AB Head
|
|
Structure Type
|
Gantry
|
|
X Axis Route
|
1000mm
|
|
PressureY Axis Route
|
1000mm
|
|
Cutting Accuracy
|
±0.1mm
|
|
Cutting Mode
|
360Mpa
PC i-Telli control system
|
|
Control Mode
|
Bus control
|

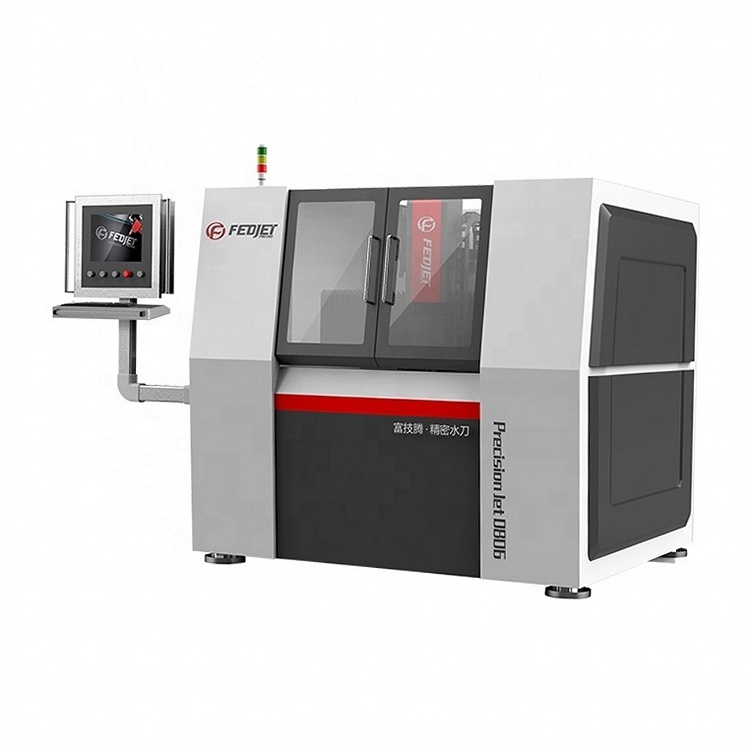

Products Show
What's Water Jet Cutting Machine
?
Fedjet® water jet cutting machine is a high-pressure water jet cutting machine that utilizes straight pure water cutting or
abrasive
waterjet cutting to cut several types of material.
Fedjet® using the water jet high-pressure cutting process to cut material thicknesses from gauge up to 200mm(8").
Edgestream® will cut material such as Aluminum, Armor Plate, Brass, Carpet, Copper, Glass,Granite, Leather, Marble, Mild
Steel,Plastic, Stainless Steel, Stone, Tile, Titanium,Ceramic tile,Acrylic,Fiber glass ,Rubber,Foam,Composite materials etc.
Perfect small water jet cutting machine
Fedjet® water jet cutting machine is achieved by forcing a large volume of pure water under high pressure through a small orifice
in the cutting nozzle. The accelerated steam of water leaving the nozzle impacts the material and starts the cutting process. Kerf
from the accelerated stream of water is extremely narrow. This pressure is then concentrated in a small area on the material which
starts to erode the material. Softer materials can be cut with water pressure. Harder materials require the use of an abrasive
feed system, such as metal cutting.
Specialized Z axis
Double rail slider
Moulding aluminum Z axis
Lubricant System
Automatic lubricant system
Full Stainless Steel Protection
Perfect protection design, which protect the precised transmission parts againt abrsived and water
Wireless Remote Control
Convenient and customer-friendly wireless handwheel
Electric Cabinet
Reliable and Safe layout of the electric cabinet
Abrasive Hopper
Integrated design of abrasive storage and control function.Precised 20-level abrasive feed control
Advanced and Specialized Testing Equipmment
"Quality is the utmost", Fedjet people still believe
and stick to this primciple. We are strict to every detail and always try our best to bring our customers satisfatory !
Our Company
Fedjet
was founded in 2012 and we made many kinds of Ultra-high pressure waterjet cutting machines and waterjet cleaning machines. We have close corporation with ERTI, Stonage, Jetstream from USA Which are the top waterjet manufactures.
Factory
Our Factory
Workshop
Our Workshop
Warehouse
Our Warehouse
Team
Our Team
Cooperation Brands
Company Events
**2012,
Fedjetting set up the ultra-high pressure water washing machine assembly plant in the cooperation with JETSTREAM (USA), and put enough ultra-high pressure pump and spare parts in stock to achieve domestic supply of JETSTREAM ultra-high pressure water washing machine;
**2012,
Fedjetting becomes Stoneage's largest agent in China and the designated maintenance center in Asia-Pacific region.
**2014,
Cooperated with the TST(Swedish company), and becomes TST's tier-one Agentas in China.
**2015,
Introducing the R&D, production, sales and technical services of Water jet cutting parts and began to serve domestic market.
**2016,
Introducing the R&D, production, sales and technical services of ultra high pressure cutting system and started to cooperate with different big water jet cutting company.
**2016,
Customized assembly business of ultra-high pressure cleaning machine was launched. Fedjetting is built into the most professional assembly company according to different market demands.
**2017,
Trend50pro intensifier pump was launched to market.
**2017,
Cooperated with Dongna university to develop the remote monitor system for UHP Intensifier pump
**2018,
The new arrival reactor full automated cleaning system was launched for fine Chemistry
**2018,
5axis laser testing system was put in to use.
**2019,
The zebra stripes washer with full automated recycling function was launched
**2019,
FedJet Cangzhong production base phase II started to build
Application Field
QUALITY
Gives you the ability to cut parts faster and more accurately than with a standard non-Dynamic waterjet.
VARIABILITY
APPLICATION
Our
waterjet's cutting ability to generate exact, clean cuts with speed make it an efficient cutting process for different applications.
VARIABILITY
Like all Flow waterjets, cut a variety of materials, such as metal, stone, glass, and composites.
|
APPLICATION FIELD OF WATER JET CUTTING
|
|
|
|
|||
|
1, Ceramic and stone
|
2, Glass spell flower
|
3, High speed way
|
4, Automobile spare parts
|
|||
|
5, Airplane manufacturer
|
6, Aviation aerospace
|
7, Nuclear power
|
8, Army industry
|
|||
|
9, Foundry industry
|
10, Cleaning scope
|
11, Jewelry industry
|
12, Paper industry
|
|||
|
13, Children diaper industry
|
14, Women sanitary towel
|
15, Food industry
|
16, Electron industry
|
|||
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: Do you accept OEM Service ?
A: Yes, we welcome your OEM service
Q: How long is your delivery time ?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
