20/50/100/300 Micron filter with electric valve wedge wire screen automatic backwash self cleaning water filter

20/50/100/300 Micron filter with electric valve wedge wire screen automatic backwash self cleaning water filter

FOB Reference Price: Get Latest Price

≥1 Pieces

US $3000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Capacity:: 50 m3/h

Design temperature:: 65℃

Replace the pressure:: 2-10bar

Filter Length:: 2.5, 5, 10, 20, 30, 40 inch

Precision water filter Seal type:: O-ring or flat washer

Filtration Precision:: 200 micron

Filter elements:: 222 O-ring,226 O-ring

Rainwater treatment Volume:: 10 - 65 Ton/Hour

Inlet /Outlet Size:: 40-100 mm

Inlet&Outle:: Tri Clamp, Flange, Thread, etc

Quick Details

Weight (KG):: 300

Marketing Type:: New Product 2023

Place of Origin:: China

Capacity:: 50 m3/h

Design temperature:: 65℃

Replace the pressure:: 2-10bar

Filter Length:: 2.5, 5, 10, 20, 30, 40 inch

Precision water filter Seal type:: O-ring or flat washer

Filtration Precision:: 200 micron

Filter elements:: 222 O-ring,226 O-ring

Rainwater treatment Volume:: 10 - 65 Ton/Hour

Inlet /Outlet Size:: 40-100 mm

Inlet&Outle:: Tri Clamp, Flange, Thread, etc

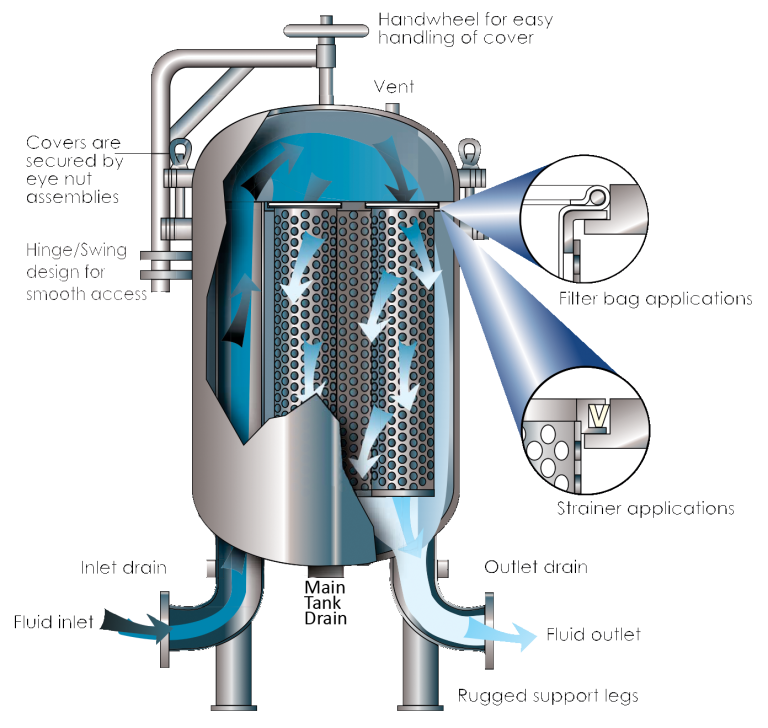

1. The filtering equipment uses the internal mechanical structure which adopts the patented technology
to realize the true back-flushing function, and completely remove the impurities intercepted by the mesh, and clean the mesh with no dead angle and no pollution, and ensure the filtration efficiency and long service life;
2. The highest filtration precision is up to 5—500 microns;
3. The filtering equipment completes the automatic back-flush through its own retrieval and strain function, to cope with unstable fluctuations in water quality without manual intervention;
4. The back-flush pressure difference and setting value of cleaning time can be adjusted according to different water sources and filtration precision;
5. Back-flush and sewage discharge should be continuous and does not affect the pressure at outlet, and smaller amount of sewage;
6. The back-flush cycle is short.

Single filter flow(max)	4000m3/h
Filtration range	20-4000 micron
Working pressure	0.2-1.6Mpa
Adjustable flushing time	10-200 seconds
Power supply	380 v / 50 Hz , AC24V
Control modes	Pressure difference/time/manual/PLC
Shell material	Carbon steel/304 stainless steel/316L
Screen material	304 stainless steel/316L

Features:

1. Easy to clean and reusable
2. Large number of openings and uniform structure, low filtration resistance
3. longer service life than screen filter and ceramic filter
4. Special technology with high strength and high temperature rolling
5. High temperature resistance and corrosion resistance; Good permeability; Uniform filtration

CROWNS MACHINERY

With advanced production equipment, strong R&Dability, and testing equipment all at high state of readiness, Crownwig can satisfy
a variety ofprofessionally customized requirements. After years of unremitting efforts, the company has won high praise from its customers regardingits strict quality management and high-quality after-sales service, the well-known large customersaccounting for up to 95%.

Crownwig assists customers to win a lot of government bidding proiectstogether .

Q1 : Where is your factory located?
A1 : Qingdao crowns machinery co.,ltd is located at Huangdao district ,Qingdao city, China

Q2 : Are you an integrated supplier for industrial filter machine ?
A2 : Yes, we can provide the complete solution line to customer according to customer’s requirement.

Q3 : How about the quality control in your factory?
A3 : Qingdao crowns has the SOP (Standard Operation Procedure) and all the production step must follow
up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully
before shipment.

Q4 : Will you offer the pre-sales service?
A4 : Yes, we have an experienced pre-sales team to support customers not only including machine, technology
also water electrical,machine layout in factory, etc.

Q5 : What about the after-service? Will you send your engineer to my country to help commission and install the
machine?
A5 : Surely, we have many experience technical engineers for oversea service, they would help you install machine
and support training to workers also.

Q6 : What is the delivery time of the machine?
A6 : Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery
time of standard machine could be within 10-30 days

Q7 : What is the warranty of the machine ?
A7 : The whole machine’s warranty period is 12 months and key parts will be depended.

Q8 : Do you provide any spare parts with machine?
A8 : Yes, CROWNS will provide one set standard spare parts to customer according to different machines
