Quick Details
-
Weight (KG):
-
200
-
Voltage:
-
220V/110V, 50Hz, 60Hz
-
Place of Origin:
-
China
-
Dimension(L*W*H):
-
1100*900*1700mm
-
Item Name:
-
Liquid Packing machine
-
Bag type:
-
back sealing, sides sealing bags
-
Usage:
-
Packing liquid or paste
-
Keyword:
-
liquid or paste packing machine
-
Packing speed:
-
30-60 bags/min
-
Packing film material:
-
laminated film
-
Machine type:
-
Automatic Bag Forming Filling Sealing Machine
-
Machine material:
-
Stanless Steel
-
Main Function:
-
packing liquid or paste
-
After Warranty Service:
-
Video technical support
Quick Details
-
Function:
-
FILLING, Wrapping, Labeling, Laminating, COATING, Sealing, Embossing, SLITTING
-
Packaging Type:
-
Stand-up Pouch, Bags, Film, Foil, Pouch
-
Packaging Material:
-
Plastic, Paper
-
Weight (KG):
-
200
-
Voltage:
-
220V/110V, 50Hz, 60Hz
-
Place of Origin:
-
China
-
Dimension(L*W*H):
-
1100*900*1700mm
-
Item Name:
-
Liquid Packing machine
-
Bag type:
-
back sealing, sides sealing bags
-
Usage:
-
Packing liquid or paste
-
Keyword:
-
liquid or paste packing machine
-
Packing speed:
-
30-60 bags/min
-
Packing film material:
-
laminated film
-
Machine type:
-
Automatic Bag Forming Filling Sealing Machine
-
Machine material:
-
Stanless Steel
-
Main Function:
-
packing liquid or paste
-
After Warranty Service:
-
Video technical support
Products Description

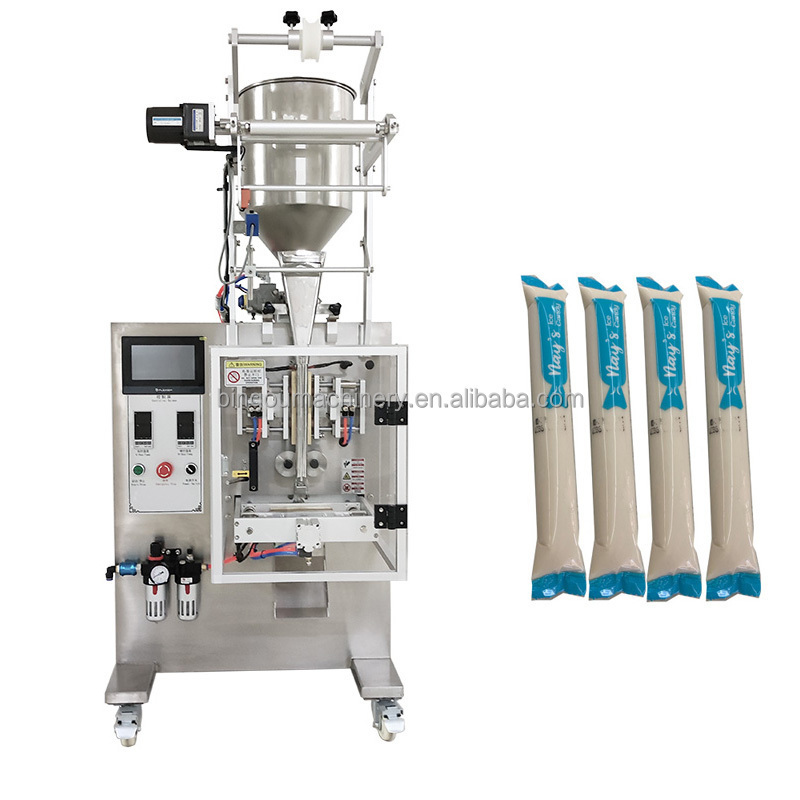

Automatic Liquid or Paste Packing Machine
*
This machine is suitable for packing
all kinds of liquid or paste products such as water, juice, oil, cosmetic cream, jam, butter, tomato paste, ketchup, olive oil, honey,
sauce, shampoo, lotions, etc
sauce, shampoo, lotions, etc
Application
It is widely applied to different kinds of HERBAL TEA, healthy tea , powder tea, medical tea, etc.
Juice
Edible Oil
Honey
Chili Sauce
Tomato Paste
Shampoo
Sample Bags
4 sides sealing connected bags style
4 sides sealing bag with V shape easy tearing notch
4 sides sealing with -- shape easy tearing notch
3 sides sealing bags style
Back center sealing bag style
Back center sealing stick bag style
Product Paramenters
|
Item
|
Automatic Liquid or Paste Packing machine
|
|
Model
|
BG-240Y
|
|
Sealing Method
|
heat sealing
|
|
Filling System
|
Piston pump or megnatic pump
|
|
Packing Speed
|
20-60 bags/min
|
|
Bag Size
|
Bag Length 40-170mm, bag Width 15-120mm
|
|
Filling range
|
Packing volume can be adjusted, depends on your packing variety and packing volume
|
|
Bag Type
|
Four sides sealed bags or three sides sealed bags or back sealed bags
|
|
Cutting type
|
Flat cutting or wave cutting
|
|
Date printer
|
Optional to choose
|
|
Control system
|
Mitsubishi PLC+ screen
|
|
Air Consumpion
|
≥0.6Mpa, 0.4m³/min
|
|
Power
|
220V Single phase 50/60Hz
|
|
weight
|
200 kg
|
|
Overall Denmensions
|
L1000mm*W800mm*H1700 (mm) Package size
|
Features:
1) All the Electronic components adopt international famous brand excluding motor, the motor use regular domestic brand.
2) The raw material of the products adopts stainless steel.
2) Mitsubishi PLC control system
3) English panel
4) Noiseless stepping motor to improve steady working condition and decrease vibrator and noise.
5) Can get a perfect pictures when the packing material with color code.
6) This machine is easy to operate and maintain.
7) This machine can finish pulling, forming, fulfilling, measuring, sealing, cutting, printing automatically.
2) The raw material of the products adopts stainless steel.
2) Mitsubishi PLC control system
3) English panel
4) Noiseless stepping motor to improve steady working condition and decrease vibrator and noise.
5) Can get a perfect pictures when the packing material with color code.
6) This machine is easy to operate and maintain.
7) This machine can finish pulling, forming, fulfilling, measuring, sealing, cutting, printing automatically.
