Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GCHV
-
Dimension(L*W*H):
-
2250 x 1290 x 1980
-
Weight (KG):
-
390 KG
-
Product name:
-

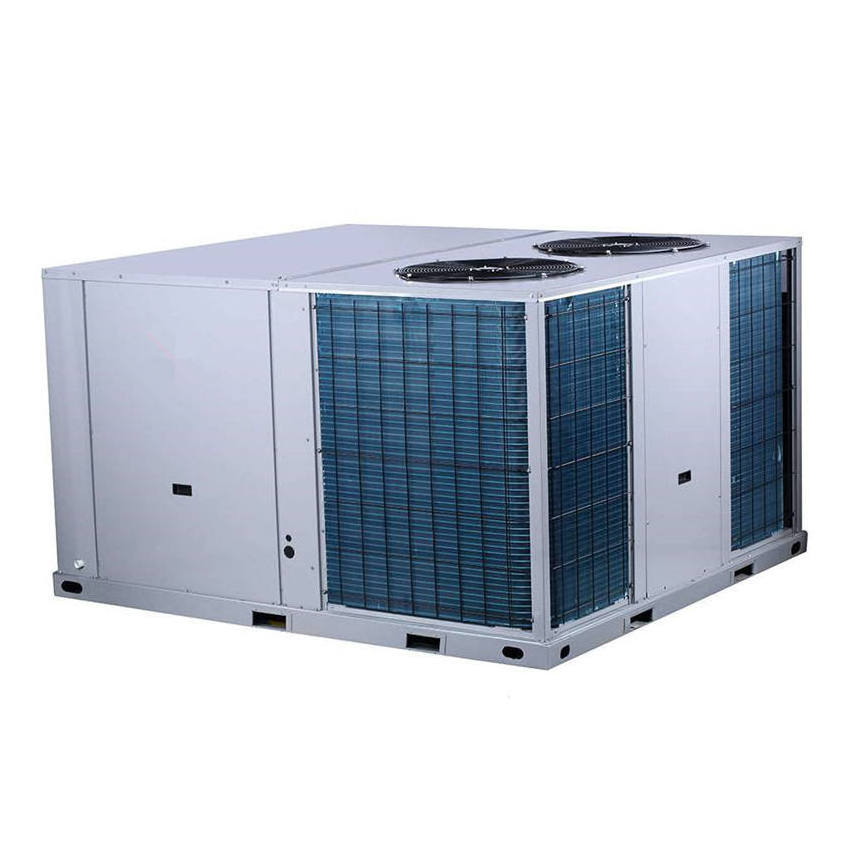

Rooftop Packaged Unit Air Conditioner
-
Voltage:
-
380v/60hz/3ph
-
Cooling and Heating:
-
Cooling only/ Cooling heating
-
Ambient temperature:
-
10-52 ℃
-
Packaging Details:
-
Standard export packing
-
Port:
-
qingdao, tianjin, shanghai, guangzhou, any port of China
-
Cooling capacity of heat pump system:
-
17-98kw
-
Heating capacity of heat pump system:
-
26-111.5kw
-
Ambient temp.operation range(Cooling):
-
10~46℃
-
Ambient temp.operation range(Heating):
-
-9~24℃
Quick Details
-
Type:
-
Rooftop Packaged Unit
-
Mounting:
-
Rooftop
-
Airflow:
-
3800m³/h
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GCHV
-
Dimension(L*W*H):
-
2250 x 1290 x 1980
-
Weight (KG):
-
390 KG
-
Product name:
-
Rooftop Packaged Unit Air Conditioner
-
Voltage:
-
380v/60hz/3ph
-
Cooling and Heating:
-
Cooling only/ Cooling heating
-
Ambient temperature:
-
10-52 ℃
-
Packaging Details:
-
Standard export packing
-
Port:
-
qingdao, tianjin, shanghai, guangzhou, any port of China
-
Cooling capacity of heat pump system:
-
17-98kw
-
Heating capacity of heat pump system:
-
26-111.5kw
-
Ambient temp.operation range(Cooling):
-
10~46℃
-
Ambient temp.operation range(Heating):
-
-9~24℃
Product Description
Rooftop Package (R410A) Specifications
|
Nominal Ton
|
|
|
|
3
|
|||
|
Model
|
|
|
|
MRC-36HWN1-RM
|
|||
|
Power Supply
|
|
|
V-Ph-Hz
|
380-400V,3Ph,50Hz
|
|||
|
Cooling
|
Cooling Capacity(1)
|
|
Btu/h
|
36,000
|
|||
|
|
|
|
kW
|
10.55
|
|||
|
|
Power input(2)
|
|
kW
|
9.9
|
|||
|
|
Heating Capacity
|
|
Btu/h
|
37,500
|
|||
|
|
|
|
kW
|
10.99
|
|||
|
|
Power Input
|
|
kW
|
3.00
|
|||
|
Max.input consumption
|
|
|
kW
|
13.5
|
|||
|
Max Power Input
|
|
|
A
|
25.6
|
|||
|
Performance
|
Indoor side air flow
|
|
CFM
|
1,500
|
|||
|
|
ESP
|
|
Pa
|
50
|
|||
|
|
EER1
|
|
Btu/h/W
|
11.8
|
|||
|
|
COP
|
|
Btu/h/W
|
12.5
|
|||
|
Indoor fan
|
Type
|
|
|
Centrifugal
|
|||
|
|
Drive type
|
|
|
Direct
|
|||
|
Compressor
|
Type
|
|
|
Scroll
|
|||
|
|
Quantity
|
|
|
1
|
|||
|
|
Brand
|
|
|
Copeland
|
|||
|
Max. power input
|
|
kw
|
|
4.25
|
|||
|
Max. current |
|
A
|
|
6.4
|
|||
|
Outdoor Fan
|
Type
|
|
|
Axial
|
|||
|
|
Drive type
|
|
|
Direct
|
|||
|
Wired controller
|
|
|
|
no
|
|||
|
sound pressure level
|
|
|
dB(A)
|
64.9
|
|||
|
Ambient temperature
|
|
|
|
21°C - 43°C
|
|||
|
Weight
|
Net/Gross
|
|
Kg
|
139/142
|
|||
|
Dimension
|
Net (W×H×D)
|
|
mm
|
1,116×830×744
|
|||
|
|
Packing (W×H×D)
|
|
mm
|
1,152×855×765
|
|||
>>Outstanding reliability
--Durable construction
Pre-painted exterior cabinet panels pass 500 hours Salt Spray Test for durability.
Weather-resistant construction with capped steams and sloped top panels.
G90 galvanized heavy gauge plate conforming to ASTM-A-653.
--Customized anti-corrosion treatment
The rooftop package air conditioners with special anti-corrosion treatment are suitable for seaside areas or the areas exposed to
acidic substances.
--Durable construction
Pre-painted exterior cabinet panels pass 500 hours Salt Spray Test for durability.
Weather-resistant construction with capped steams and sloped top panels.
G90 galvanized heavy gauge plate conforming to ASTM-A-653.
--Customized anti-corrosion treatment
The rooftop package air conditioners with special anti-corrosion treatment are suitable for seaside areas or the areas exposed to
acidic substances.
--Reliable scroll compressor
Famous brand compressor: Copeland, LG, Danfoss, etc.. More reliable.
No complex internal suction and discharge valves for quieter operation and higher reliability.
Compact, light-weight, and fewer moving parts design.
--Multi-protection design
Multiply measures to ensure units operate normally and reliably.
System current protection, High/low pressure protection, Temperature sensor protection, etc.
Three-phase protector can be customized.
Famous brand compressor: Copeland, LG, Danfoss, etc.. More reliable.
No complex internal suction and discharge valves for quieter operation and higher reliability.
Compact, light-weight, and fewer moving parts design.
--Multi-protection design
Multiply measures to ensure units operate normally and reliably.
System current protection, High/low pressure protection, Temperature sensor protection, etc.
Three-phase protector can be customized.
Our Services
* We have a professional customer service team to answer your various questions in 24h.
* Support small batch production and OEM.
* We have a professional design team to help you design drawings.
* Support small batch production and OEM.
* We have a professional design team to help you design drawings.
