- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
SKZ
-
Model Number:
-
SKZ172B
-
Temp. control range:
-
20~60℃; resolution:0.1℃
-
Temp. control accuracy:
-
±0.5℃
-
Humidity control:
-
40%RH~95%RH±2%RH
-
Humidification:
-
≥900ml/h
-
Testing time:
-
1min~999h59min
-
Circulating air speed:
-
0.02~2.5m/s
-
Number of moisture permeability cups:
-
24 pieces
-
Dimension:
-
1180x820x1850mm
-
Weight:
-
180kg
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SKZ
-
Model Number:
-
SKZ172B
-
Temp. control range:
-
20~60℃; resolution:0.1℃
-
Temp. control accuracy:
-
±0.5℃
-
Humidity control:
-
40%RH~95%RH±2%RH
-
Humidification:
-
≥900ml/h
-
Testing time:
-
1min~999h59min
-
Circulating air speed:
-
0.02~2.5m/s
-
Number of moisture permeability cups:
-
24 pieces
-
Dimension:
-
1180x820x1850mm
-
Weight:
-
180kg
Product Description

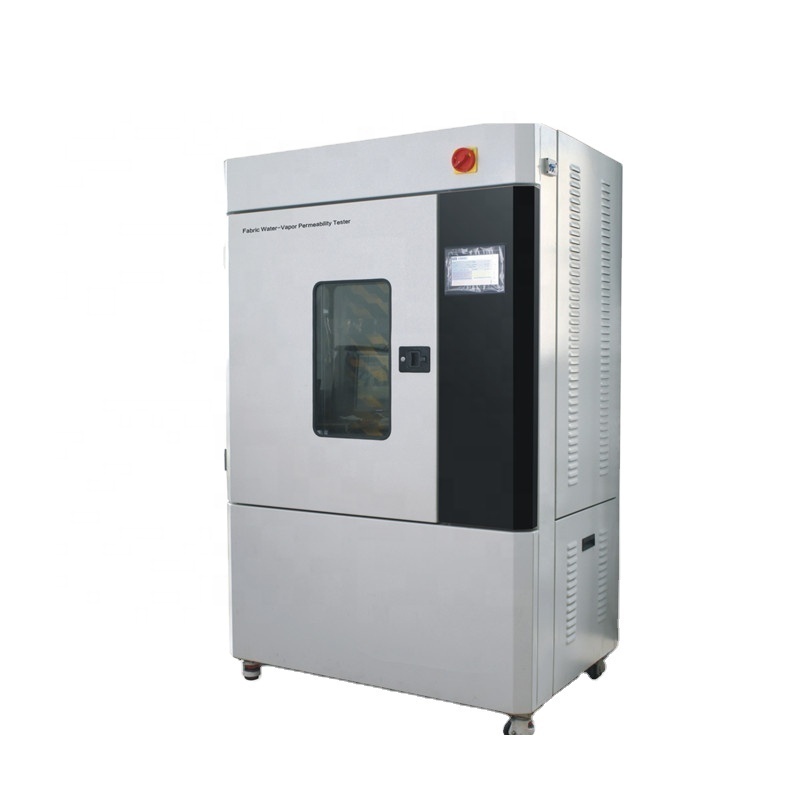

SKZ172B ASTM E96 Textile Water Vapour Transmission Tester Fabric Water Vapor Permeability Tester
To determine Water-Vapour Permeability of fabric. Used for testing the moisture permeability of all kinds of fabrics, including moisture-permeable coated fabrics and nonwoven fabrics.
Standards
ASTM E90-00 ASTM E96 JIS L1099A BS 7209 JIS L1099B
Feature
1. Rotary cup holder
2. Three layers test cup holder, suitable for high-volume testing
3. Three test areas, seperate air duct, temperature and humidity constant and uniform
4. Three test areas wind speed calibrated independently
5. Microcomputer control, color touch screen English menu operation
6. Imported high-precision temperature and humidity sensors, auxiliary digital adjustment technology, temperature and humidity signal output, high precision
Specification
|
item
|
value
|
|
Warranty
|
1 year
|
|
Customized support
|
OEM
|
|
Place of Origin
|
China
|
|
Brand Name
|
SKZ
|
|
Temp. control range
|
20~60℃; resolution:0.1℃
|
|
Temp. control accuracy
|
±0.5℃
|
|
Humidity control
|
40%RH~95%RH±2%RH
|
|
Humidification
|
≥900ml/h
|
|
Testing time
|
1min~999h59min
|
|
Circulating air speed
|
0.02~2.5m/s
|
|
Number of moisture permeability cups
|
24 pieces
|
|
Power
|
AC380V±10%V, 50Hz, 4.5KW
|
|
Dimension
|
1180x820x1850mm
|
|
Weight
|
180kg
|
Packing & Delivery
Free fumigation ply-wooden case outside, goods with Stretch film wrapped
