Quick Details
-
Model Number:
-
DAP-0208 II
-
Dimension:
-
485*265*45mm
-
Storage:
-
N/A
-
SNR:
-
≥100dB @ 1KHz 0dBu
-
Output Power:
-
≤25W
-
Format:
-
N/A
-
Model No.:
-
DAP-0208 II
-
Product Name:
-
Digital audio processor
-
Certificate:
-
CE ROHS FCC CCC
-
Packing:
-
Carton Box
-
Delivery time:
-
10 Work Days
-
Use:
-
Professional Audio System
-
Material:
-
Metal
-
FOB:
-
Guangzhou or Shenzhen
-
Keyword:
-
2in 6out professional audio processor
Quick Details
-
Warranty:
-
3years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Thinuna
-
Model Number:
-
DAP-0208 II
-
Dimension:
-
485*265*45mm
-
Storage:
-
N/A
-
SNR:
-
≥100dB @ 1KHz 0dBu
-
Output Power:
-
≤25W
-
Format:
-
N/A
-
Model No.:
-
DAP-0208 II
-
Product Name:
-
Digital audio processor
-
Certificate:
-
CE ROHS FCC CCC
-
Packing:
-
Carton Box
-
Delivery time:
-
10 Work Days
-
Use:
-
Professional Audio System
-
Material:
-
Metal
-
FOB:
-
Guangzhou or Shenzhen
-
Keyword:
-
2in 6out professional audio processor

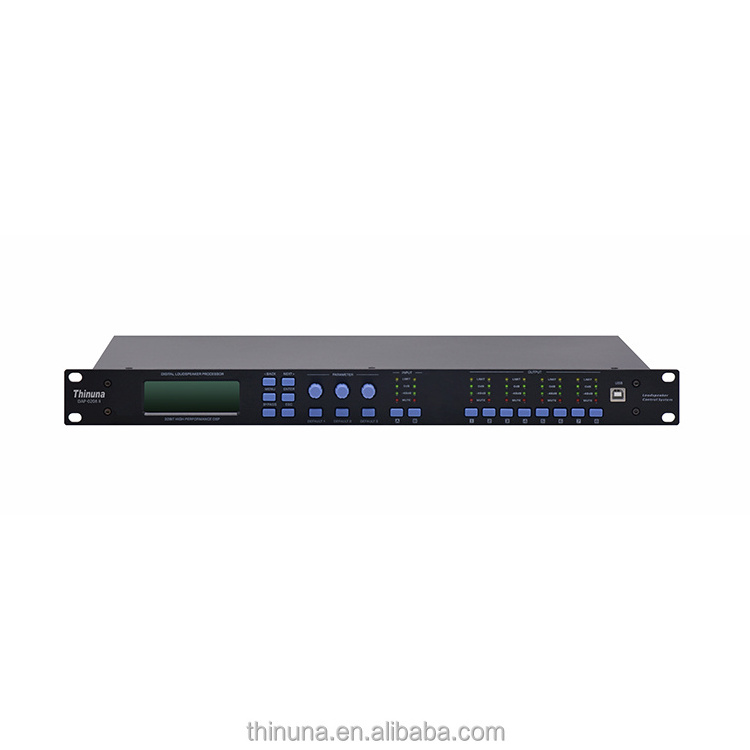

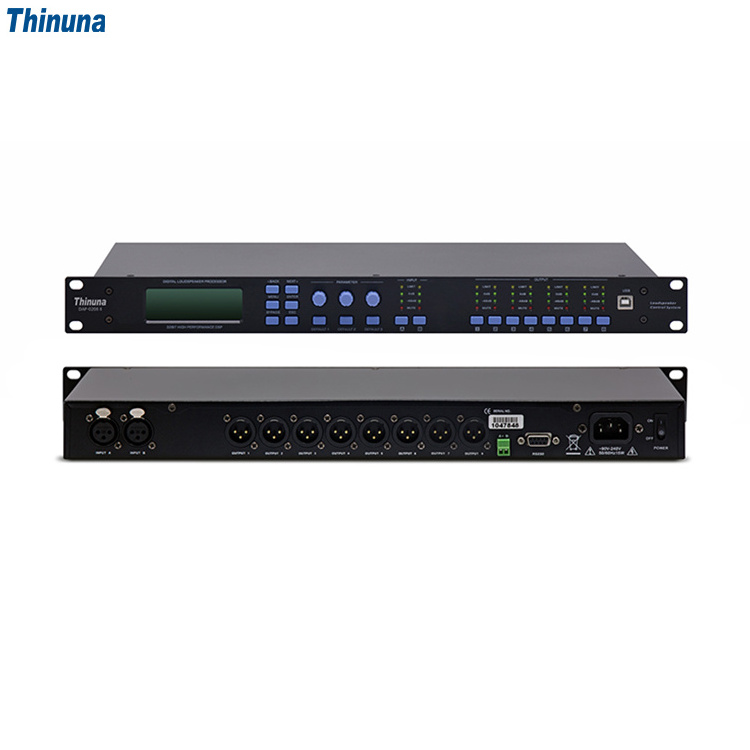

Thinuna DAP-0208 II Professional Audio Processor 2 Input 8 Output Speaker Management System DSP Digital Audio Processor
Products Description
Functional features:
* 2-CH balanced input, 8-CH balanced output
* 96KHz sampling frequency, 32-bit DSP processor, 24-bit A/D and D/A conversion.
* The channels can be mixed in any ratio and with equalization, phase, delay, crossover, limiting, gain, mute, etc.
* 1000ms delay per channel, 8 parametric equalization for input and 9 parametric equalization for output.
* Three kinds of high and low pass filters are adjustable, the frequency is 1Hz step.
* With channel copy function, you can quickly copy the set parameters.
* 24 groups of settings, all can set passwords to protect the setting data and prevent the parameters from being viewed.
* Digital limiter, start level, start release time are adjustable.
* Real USB port, driver-free, with graphical control interface, support WIN7, WIN10 system.
* Equipped with quick function buttons, more convenient adjustment.
* Global universal power supply 90-245V.
* 96KHz sampling frequency, 32-bit DSP processor, 24-bit A/D and D/A conversion.
* The channels can be mixed in any ratio and with equalization, phase, delay, crossover, limiting, gain, mute, etc.
* 1000ms delay per channel, 8 parametric equalization for input and 9 parametric equalization for output.
* Three kinds of high and low pass filters are adjustable, the frequency is 1Hz step.
* With channel copy function, you can quickly copy the set parameters.
* 24 groups of settings, all can set passwords to protect the setting data and prevent the parameters from being viewed.
* Digital limiter, start level, start release time are adjustable.
* Real USB port, driver-free, with graphical control interface, support WIN7, WIN10 system.
* Equipped with quick function buttons, more convenient adjustment.
* Global universal power supply 90-245V.
Specifications:
|
Model
|
DAP-0206 II
|
DAP-0208 II
|
DAP-0306 II
|
DAP-0408 WIFI
|
||||
|
Input channels and sockets
|
2-CH female XLR
|
2-CH female XLR
|
3-CH female XLR
|
4-CH female XLR
|
||||
|
Output channels and sockets
|
6-CH male XLR
|
8-CH male XLR
|
6-CH male XLR
|
8-CH male XLR
|
||||
|
Input impedance
|
Balance: 20KΩ
|
|
|
|
||||
|
Output impedance
|
Balance: 100Ω
|
|
|
|
||||
|
PC interface
|
1 USB interface on the panel, 1 RS232 interface and 1 RS485 interface on the back.
|
|
|
|
||||
|
Common mode rejection ratio
|
＞78dB(1KHz)
|
|
|
|
||||
|
Input range
|
≤+22dBu
|
|
|
|
||||
|
Frequency response
|
20Hz-20KHz(-0.5dB)
|
|
|
|
||||
|
SNR
|
≥100dB @ 1KHz 0dBu
|
|
|
|
||||
|
Distortion
|
＜0.002% OUTPUT=0dBu/1KHz
|
|
|
|
||||
|
Channel separation
|
＞88dB(1KHz)
|
|
|
|
||||
|
Input channel function
|
|
|
|
|
||||
|
Input mute
|
Individual mute control for each channel
|
|
|
|
||||
|
Input volume
|
Adjustment range: -40dB-+12dB, step size is 0.1dB
|
|
|
|
||||
|
Input delay
|
Each input channel has a separate delay control, the adjustment range is 0-1000ms, and the step is 10us.
|
|
|
|
||||
|
Input phase
|
In-phase (+) or anti-phase (-)
|
|
|
|
||||
|
Input equalization
|
8 parametric equalization per input channel
|
|
|
|
||||
|
Output channel function
|
|
|
|
|
||||
|
Output mute
|
Individual mute control for each channel
|
|
|
|
||||
|
Input selection
|
Each output channel can select a different input channel individually, or any combination of channels.
|
|
|
|
||||
|
Output gain
|
Adjustment range: -40dB-+12dB, step size is 0.1dB
|
|
|
|
||||
|
Output delay
|
Each channel has a separate delay control, the adjustment range is 0-1000ms, and the step is 10us.
|
|
|
|
||||
|
Output phase
|
In-phase (+) or anti-phase (-)
|
|
|
|
||||
|
Crossover settings
|
Low-pass filter (LPF) and high-pass filter (HPF) can be set individually for each output channel.
|
|
|
|
||||
|
Compressor/Limiter settings
|
Threshold: -20dBu-+22dBu, step size is 1dBu; Compression ratio: 1:1-INF; Response time: 1mS-100mS; Release time: 2X-32X
|
|
|
|
||||
|
Output EQ
|
Each output channel can set 9 parameter equalization
|
|
|
|
||||
|
Processor
|
96KHz sampling frequency, 32-bit DSP processor, 24-bit A/D and D/A conversion
|
|
|
|
||||
|
Display
|
4*20 LCD display setting, 5-segment LED can display input/output accurate digital level meter, mute and edit status.
|
|
|
|
||||
|
Power consumption
|
≤25W
|
|
|
|
||||
|
power supply
|
AC 90-245V 50/60Hz
|
|
|
|
||||
|
Dimensions(W×D×H)
|
485×265×45mm
|
|
|
|
||||
|
Net weight
|
4kg
|
|
|
|
||||
|
Packaging Dimensions (W×D×H)
|
522×370×72mm
|
|
|
|
||||
|
Gross weight
|
4.5KG
|
|
|
|
||||
Product detail:
Project Solutions
Suitable occasions:
Airports, Bus stations, Hotels, Office buildings, Gyms, Villas, Homes, Schools, Bar spas,KTV ,Saunas, Parks.......
