Quick Details
-
Model Number:
-
Pneumatic Knife Gate Valve
-
Brand Name:
-
COVNA
-
Type:
-
Pneumatic Knife Gate Valve, Gate Valves
-
Acting Mode:
-
Double Acting/Single Acting Pneumatic Actuator
-
Air Supply Pressure:
-
0.4MPa~0.6MPa
-
Pressure:
-
0.6MPa~2.5MPa
-
Sealing Material:
-
PTFE, Metal Seated
-
End Connection:
-
wafer
-
Certificate:
-
CE, RoHS, ISO9001, TUV
Quick Details
-
Port Size:
-
2''~12'', DN50~DN300
-
Warranty:
-
1 year, 12 Months
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
Pneumatic Knife Gate Valve
-
Brand Name:
-
COVNA
-
Type:
-
Pneumatic Knife Gate Valve, Gate Valves
-
Acting Mode:
-
Double Acting/Single Acting Pneumatic Actuator
-
Air Supply Pressure:
-
0.4MPa~0.6MPa
-
Pressure:
-
0.6MPa~2.5MPa
-
Sealing Material:
-
PTFE, Metal Seated
-
End Connection:
-
wafer
-
Certificate:
-
CE, RoHS, ISO9001, TUV
Product Description
Feature of COVNA Pneumatic Knite Gate Valve:
● Integral structure, ultra-thin design, full-diameter flow, not easy to leak, easy to disassemble
● Movable sealing structure, good sealing performance, strong wear resistance, automatic compensation, long life
● Fixed guide claw design, replacing the groove structure, not easy to accumulate, and prevent blocking
● Double bearing design, small torque, frequent opening and closing, no vibration, no noise
● Knife-shaped cutting edge, strong cutting force, self-cleaning function, suitable for fiber particle fluid
● Movable sealing structure, good sealing performance, strong wear resistance, automatic compensation, long life
● Fixed guide claw design, replacing the groove structure, not easy to accumulate, and prevent blocking
● Double bearing design, small torque, frequent opening and closing, no vibration, no noise
● Knife-shaped cutting edge, strong cutting force, self-cleaning function, suitable for fiber particle fluid
|
Nominal Pressure
|
0.6MPa, 1.0MPa, 1.6MPa, 2.5MPa, 150Lb
|
Nominal Diameter
|
DN50~2000 mm NPS 2"~48"
|
|
Suitable Temperature
|
0~+1100℃(Range of temperature subject to the material of sealing and property of medium)
|
Flange Drilling
|
ANSI B16.5, GB/T9113, JB/T79, HG, SH, JIS, DIN, NF, BS
|
|
Main Materials
|
C.I, WCB, ZG1Cr18Ni9Ti, ZG1Cr18Ni12Mo2Ti, CF8, CF8M, CF3,CF3M. 2Cr25Ni20
|
Seal Type
|
Stainless steel hard seal, Teflon soft seal
|
|
Leakage
|
Stainless steel hard seal: Grade D (Liquid0.1XDN mm3/s)
|
Teflon Soft Seal
|
Grade A (Zero Leakage)
|
|
Accessories
|
1.Flange 2.Solenoid valve
3.Air filter 4.Limit switch
|
Air-supply pressure
|
0.4~0.6MPa
|
|
Solenoid valve voltage
|
DC24V AC220V
|
Optional Accessories
|
Namur Solenoid Valve, Limit Switch, F.R.L, Position Indicator, Manual Device
|
Dimension:

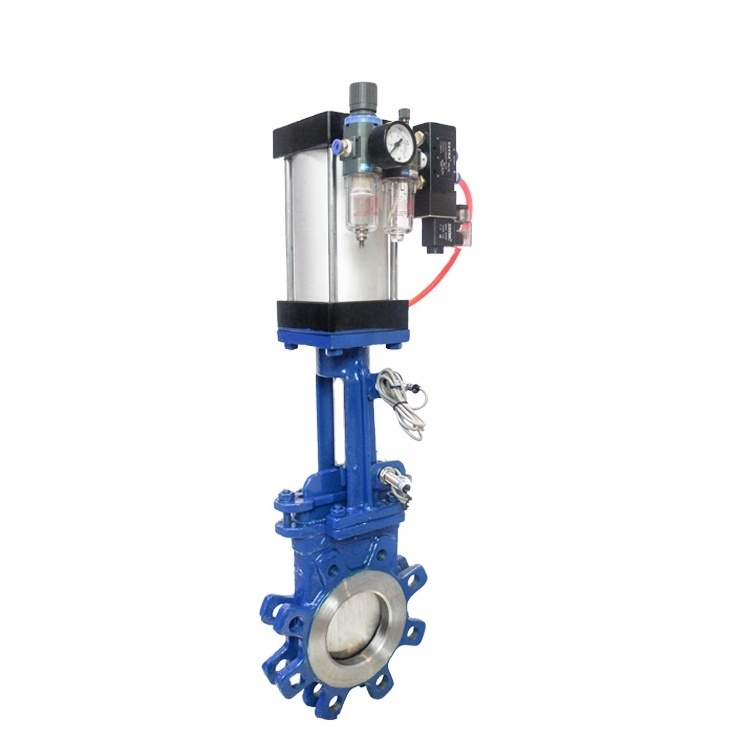

Lug Pneumatic Knife Gate Valve:
Flange Pneumatic Knife Gate Valve:
