Quick Details
-
Voltage:
-
AV380V AC220V,50Hz
-
Power:
-
0.18 KW
-
Dimension(L*W*H):
-
380X200X510(mm)
-
Weight:
-
13 kg
-
Products Name::
-
mini oil filter cart/oil purifier
-
Model::
-
FDP-P6
-
Price::
-
285 USD/Set EXW
-
Material::
-
Carbon Steel, Stainless Steel
-
Function::
-
Remove impurities from used oil
-
Applicable medium::
-
Hydraulic/Diesel/Engine/Lube/Cooking Oil
-
Delivery Time::
-
10 Days
-
Rated Pressure::
-
0.4 MPa
-
Filtration accuracy before pump::
-
40 μm
-
Filtration accuracy after pump::
-
3μm, 5μm, 10μm, 20μm
Quick Details
-
Flow:
-
6 L/min
-
Place of Origin:
-
Henan,China
-
Brand Name:
-
FluidGuard
-
Voltage:
-
AV380V AC220V,50Hz
-
Power:
-
0.18 KW
-
Dimension(L*W*H):
-
380X200X510(mm)
-
Weight:
-
13 kg
-
Products Name::
-
mini oil filter cart/oil purifier
-
Model::
-
FDP-P6
-
Price::
-
285 USD/Set EXW
-
Material::
-
Carbon Steel, Stainless Steel
-
Function::
-
Remove impurities from used oil
-
Applicable medium::
-
Hydraulic/Diesel/Engine/Lube/Cooking Oil
-
Delivery Time::
-
10 Days
-
Rated Pressure::
-
0.4 MPa
-
Filtration accuracy before pump::
-
40 μm
-
Filtration accuracy after pump::
-
3μm, 5μm, 10μm, 20μm
6 L/min Mobile Oil Purifier Mini Oil Filter Machine Remove Impurities from new hydraulic oil filling
Products Description

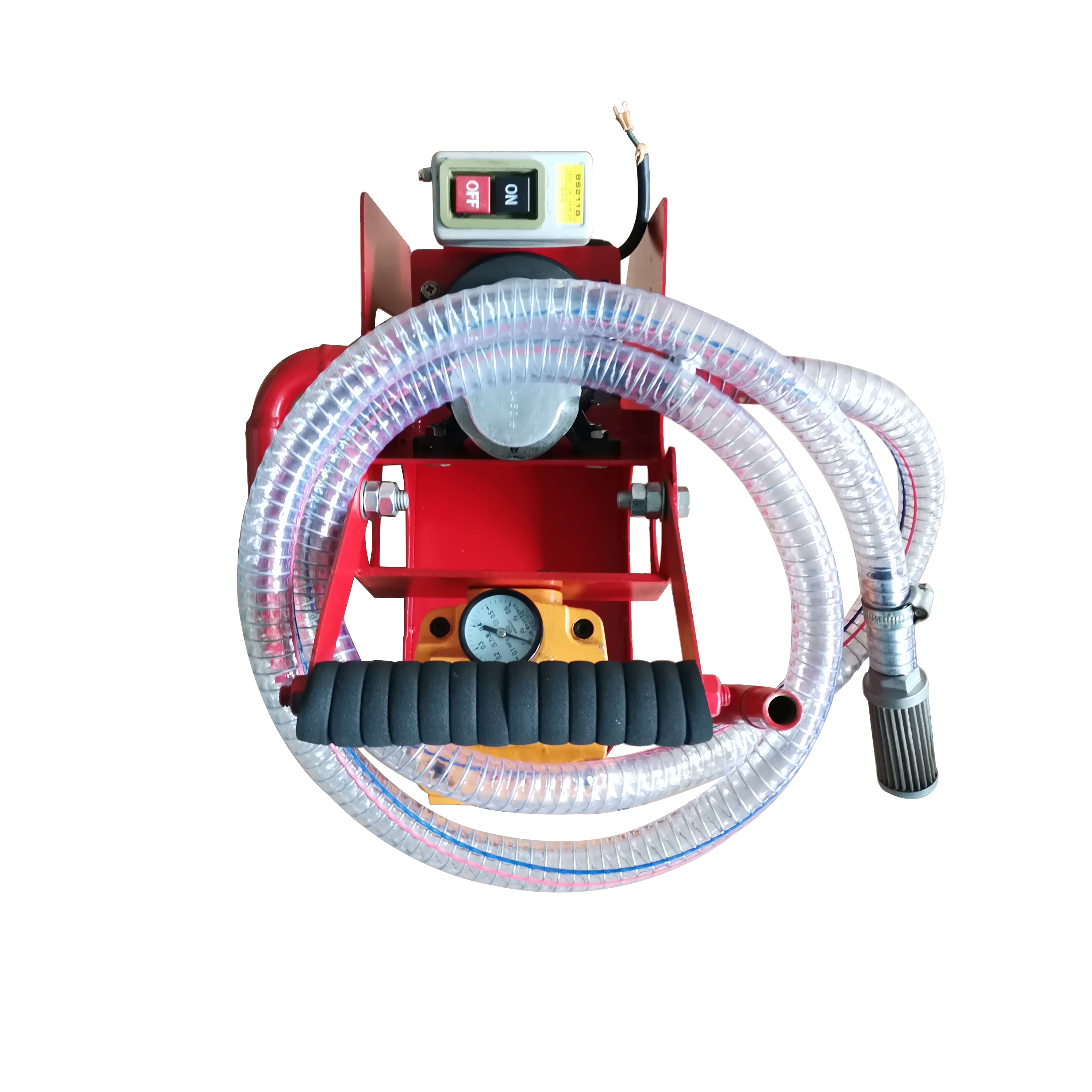

Portable oil filter machine
Portable oil filter machine are a portable way to filter multiple types of new and used oil, take oil samples, and transfer oil to and from storage containers and machines.
Portable oil filter machine are now considered a necessity when it comes to having an effective lubrication program thanks to their many benefits and uses.
Applications
1.Hydraulic lubrication system refueling and maintenance
2.The hydraulic,lubrication system bypasses filtration at work
Product Features
1.The oil filter includes a gear pump driven by a motor, which has the characteristics of low noise, strong corrosion
resistance and stable operation. It is especially suitable for liquids with weak lubrication performance.
2.Adopt thermal relay protection to prevent motor damage caused by motor overload
3.The coarse filter at the oil suction port protects the oil pump and prolongs the service life of the main filter.
4.The fine filter can select different accuracy according to different needs of users to achieve the required results.
Product Parameter
|
Item
|
Unit
|
FDP-P6
|
FDP-P10
|
FDP-P16
|
||
|
Flow Rate
|
L/min
|
6
|
10
|
16
|
||
|
Working Pressure
|
Mpa
|
0.4
|
|
≤0.3
|
||
|
Original Pressure Loss
|
Mpa
|
≤0.02
|
|
100
|
||
|
Filtration Accuracy Before Pump
|
um
|
40
|
|
3 、5
|
||
|
Filtration Accuracy After Pump
|
μm
|
3, 5, 10 20, 40
|
|
AC 380V three phase 、50Hz
adjustable |
||
|
Motor Power
|
KW
|
0.18
|
0.25
|
0.35
|
||
|
Voltage
|
V
|
AC380V three-phase AC220V two-phase
|
|
7-17 ~ 65
|
||
|
Weight
|
Kg
|
13
|
16
|
18
|
||
|
External Dimensions
|
mm
|
380×200×510
|
400×200×510
|
420×200×510
|
||
