Flexible Led Mesh Screen P3.91 Transparent Glass Led Window Display

Flexible Led Mesh Screen P3.91 Transparent Glass Led Window Display

FOB Reference Price: Get Latest Price

≥1 Pieces

US $235.8

≥100 Pieces

US $225.8

≥300 Pieces

US $215.8

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Color:: Full color

Panel Size:: 1000*500mm, 1000*500mm

Place of Origin:: Guangdong, China

Model Number:: IN--500-3.91

Brightness:: 800-1000MCD

Certificate:: CE ROHS FCC

Warranty:: 2 Years

Module size:: 250*250mm

Cabinet material:: Alumium

IP rate:: IP31

Installation:: Stacking, hanging

Cabinet power:: 200W

Input Voltage:: AC100~240V 50 /60 HZ

Scan mode:: 1/16

Quick Details

Application:: Indoor, Outdoor

Type:: LED

Brand Name:: ABXLED

Color:: Full color

Panel Size:: 1000*500mm, 1000*500mm

Place of Origin:: Guangdong, China

Model Number:: IN--500-3.91

Brightness:: 800-1000MCD

Certificate:: CE ROHS FCC

Warranty:: 2 Years

Module size:: 250*250mm

Cabinet material:: Alumium

IP rate:: IP31

Installation:: Stacking, hanging

Cabinet power:: 200W

Input Voltage:: AC100~240V 50 /60 HZ

Scan mode:: 1/16

Product Types

Outdoor Led Screen

Model: P2.5 P3 P4 P5 P6 P6.67 P8 P10

Cabinet Size: 960*960mm
Material: Die-cast aluminum/ iron
Cabinet Weight: 28/35kg

Waterproof IP Rate: IP65

Refresh Rate: 1920/3840Hz
Brightness: 4600-6500 Nist(mcd)

Indoor Led Screen

Model: P1.25 P1.538 P1.86 P2 P2.5 P3 P4 P5
Cabinet Size: 960*960mm/640*64mm/640*480mm
Material: Die-cast aluminum/iron
Cabinet Weight: 10kg/14kg/20kg
Waterproof IP Rate: IP31
Refresh Rate:1920/3840Hz
Brightness: 800Nist(mcd)

Rental Led Screen

Model: P1.95 P2.604 P2.976 P3.91 94.81
Cabinet Size: 500*500mm/500*1000mm
Material: Diecasting Aluminum
Cabinet Weight: 7.5/14kg
Waterproof IP Rate: IP31/IP65
Refresh Rate:1920/3840Hz
Brightness: 800-4500Nist(mcd)

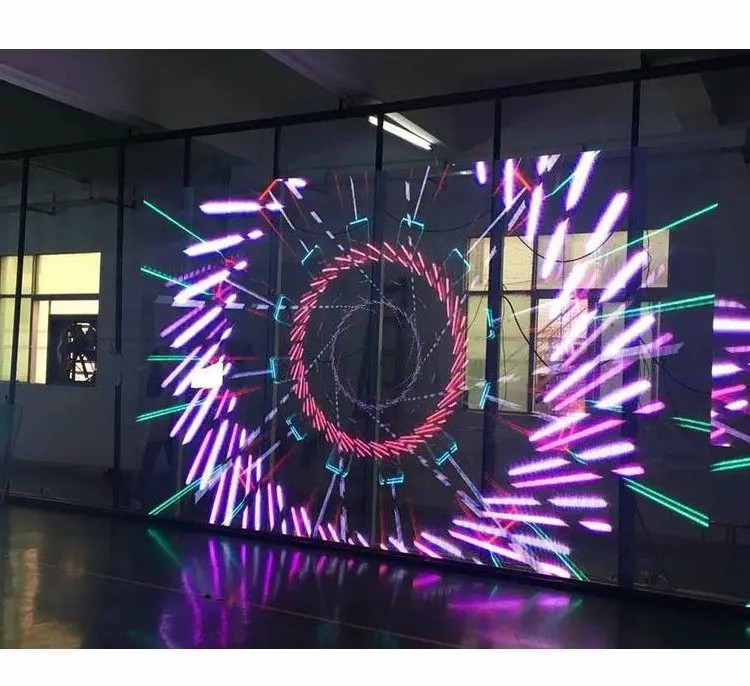

Transparent Led Screen

Model: P 3.91-7.8
Cabinet Size: 1000*500mm
Material: Diecasting Aluminum/Iron
Cabinet Weight: 10kg
Waterproof IP Rate: IP31
Refresh Rate:1920/3840Hz
Brightness: 4500Nist(mcd)

Buyer Feedback

Why Choose Us

Product Paramenters

Item			Specifications
LED Module	Color configuration	SMD2121/1921 1R1G1B 3 in 1
		Pixel Pitch（mm）	3.91x7.81mm	7.81*7.81mm
		Module Size（mm）	500（W）× 125（H）
		Module Weight（kg）	0.35
		Module Max Power（W）	25
		Module Quantity（W×H）	2×4
Cabinet	Cabinet Resolution（W×H）	256×64	128×64
		Cabinet Size（mm）	1000（W）×500（H）×80（D）
		Cabinet Weight（kg）	≤6
		Pixel Density（Dot/m2）	16384
		Transparency	55%-72%
		Cabinet Material	Die Casting Aluminum
Optical parameter	Brightness Control Level	256 degree by software
		Brightness Control Mode	Automatically/Manul Operation
		Brightness at White（nits）	≥3800, can be adjusted
		Viewing Angel（H/V°）	160/140
		Max. Power（W/m2）	380
		Ave.Power（W/m2）	190
		AC Input	AC110~220V10%, 50~60Hz,
		Drive Mode	1/16Scan	1/8Scan
		Grey Scale	16bits
		Refresh rate	≥3840Hz/s,can be adjusted
		Life Span	>100,000H
		Working Temperature,Humidity	-20℃~+50℃,

Products features:

* 1. High refresh, up to 3840Hz/s, high grayscale
* 2. Light and thin, only 12KG per square meter
* 3. Integrated pinboard and power supply, plug types.
* 4. High transparency, slim and beautiful led cabinet, strong wind resistance
