With touch screen control panel,it is more convenient to adjust different kinds of parameter.The visual working data makes the adjustment can be more accurate.This control panel can be set into English version,which can help you control the machine faster.
- Product Details
- {{item.text}}
Quick Details
-
Filling Accuracy:
-
≤±1%
-
Driven Type:
-
Electric and pneumatic
-
Voltage:
-
220V/110V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZONESUN
-
Dimension(L*W*H):
-
About 2000*1020*2050 mm
-
Weight:
-
AboutKG
-
Product name:
-
Piston Filling Machine
-
Filling range:
-
Can be chosen as need
-
Usage:
-
Grease/Liquid/Shampoo
-
After Warranty Service:
-
Video technical support
-
After-sales Service Provided:
-
Online support
-
Certification:
-
CE
Quick Details
-
Machinery Capacity:
-
20-35 bottles/min
-
Packaging Material:
-
Wood
-
Filling Material:
-
Milk, Water, Oil, Juice, shampoo
-
Filling Accuracy:
-
≤±1%
-
Driven Type:
-
Electric and pneumatic
-
Voltage:
-
220V/110V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZONESUN
-
Dimension(L*W*H):
-
About 2000*1020*2050 mm
-
Weight:
-
AboutKG
-
Product name:
-
Piston Filling Machine
-
Filling range:
-
Can be chosen as need
-
Usage:
-
Grease/Liquid/Shampoo
-
After Warranty Service:
-
Video technical support
-
After-sales Service Provided:
-
Online support
-
Certification:
-
CE
Product Description

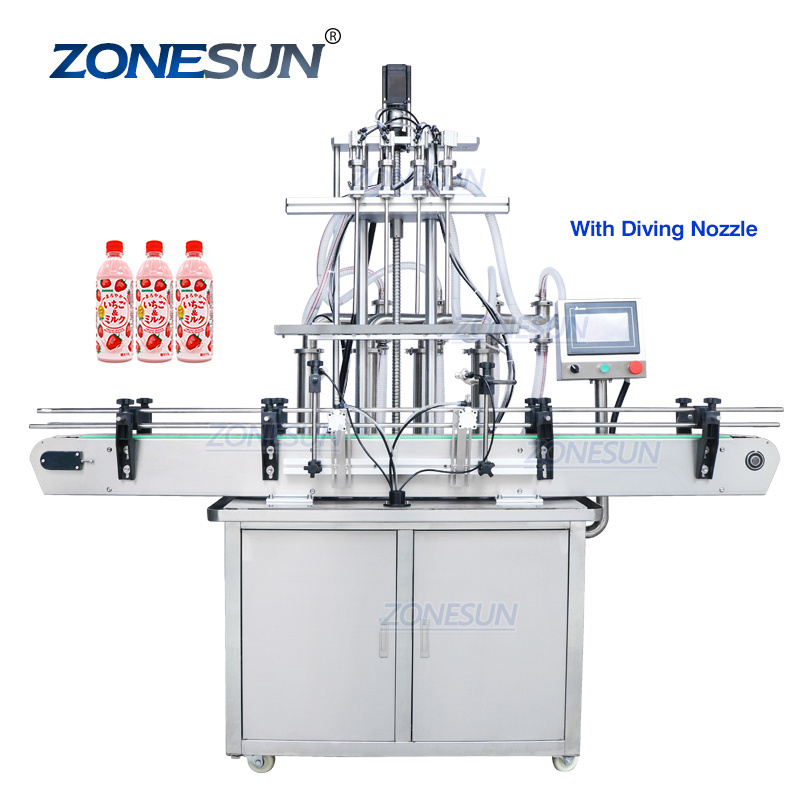

This automatic filling machine is with larger air cylinder which can help to fill liquid faster.It is designed for filling foamy liquid like liquid soap,shampoo,laundry detergent etc because of the diving filling nozzle. Each nozzle can be controlled separately,it can work with the capping machine,labeling machine to achieve to automatic production line,helps you improve working efficiency.
|
Model
|
ZS-YT4T-4D
|
|
|
|
|||
|
Voltage
|
110/220V 50-60HZ 600W
|
|
|
|
|||
|
Filling Range
|
5-100ml/10-300ml/50-500ml/100-1000ml/500-3000ml/1000-5000ml
|
|
|
|
|||
|
Working Speed
|
20-35bottles/min
|
|
|
|
|||
|
Filling Accuracy
|
≤±1%
|
|
|
|
|||
|
Air Pressure
|
0.5-0.7MPa
|
|
|
|
|||
|
Size Of Air Compressor Connector
|
OD 10mm
|
|
|
|
|||
|
Conveyor length
|
2050mm(standard )
|
|
|
|
|||
|
Conveyor material
|
Plastic(standard) / stainless steel(custom version)
|
|
|
|
|||
|
Machine Size
|
About 200*102.5*205cm（100-1000ML）
|
|
|
|
|||
|
Package Size
|
About 211*114*210cm （100-1000ML）
|
|
|
|
|||
|
Net weight/Gross weight
|
About 262kg/340kg（100-1000ML）
|
|
|
|
|||
We can customize the machine for multiple filling nozzles according to operation needs.Each nozzle can be controlled separately,this machine is equipped with diving nozzle ,this is designed for foamy liquid,helps to improve yourproduction quality.
The sensor is designed fordetecting bottles when they pass through, prevent frommissing or wasting bottles,improves the filling accuracy.
The conveyor belt can ensure the product will be transferred more smoothly and faster , the conveyor length can be customized
according to your needs, meet the need of mass production.
Please send us your request, we can help you customize a suitable machine!
We have other machine, if you want to know,please send us your request, we can help you
customize a suitable machine !
