Quick Details
-
Brand Name:
-
Aoying
-
Dimension(L*W*H):
-
Customized
-
Capacity:
-
Customized
-
Weight:
-
1000
-
Inner Material:
-
Q345R
-
Outer Material:
-
SA516
-
Design Pressure(MPa):
-
1.0
-
Design Standard:
-
GB150
-
Working Temperature(℃):
-
180 - 200 ℃
-

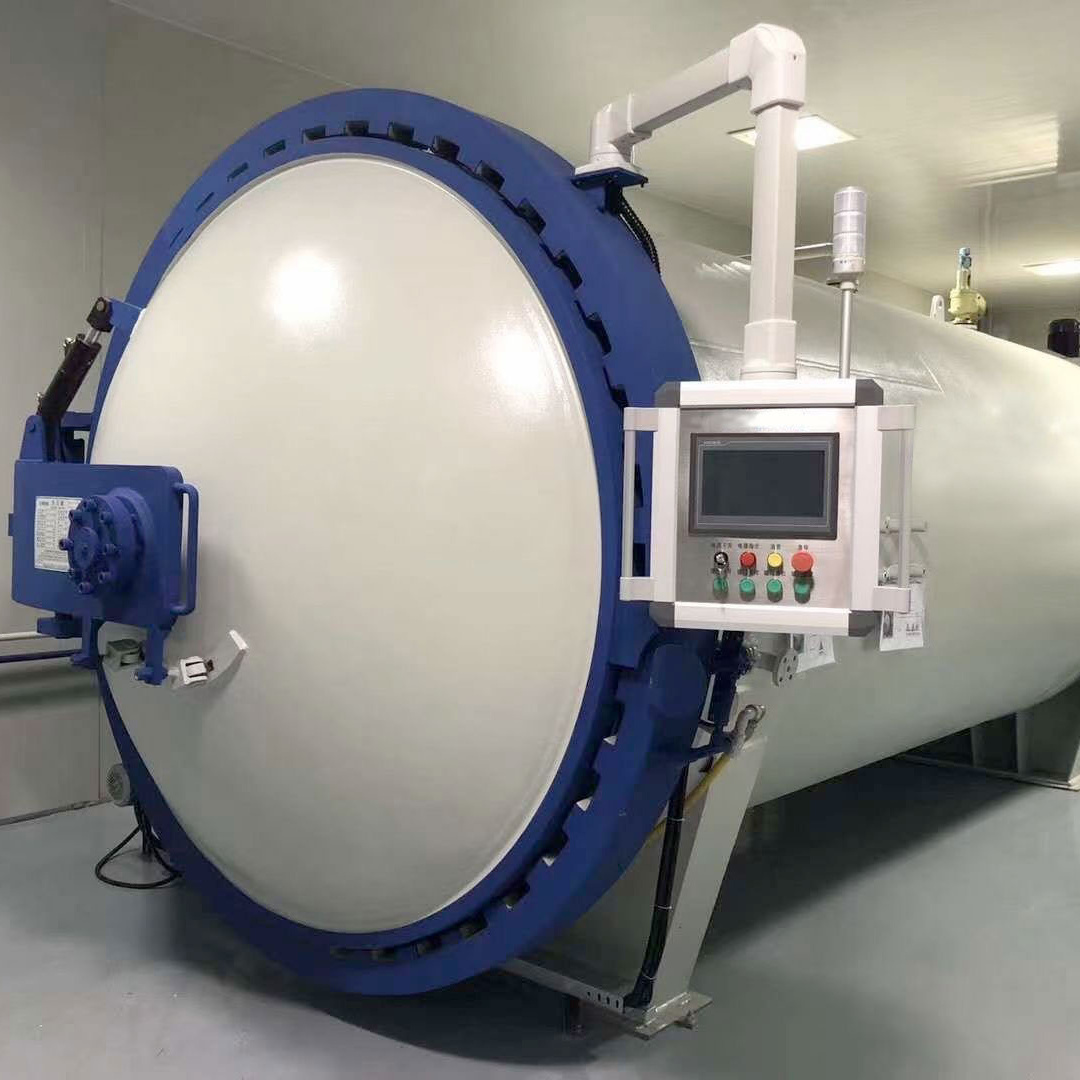

Product name:
-
Composite Autoclave
-
After-sales Service Provided:
-
Online Support
-
Material:
-
Q345R
-
Body Material:
-
SA516
-
Heating:
-
Electric Heater
-
Usage:
-
Composite
-
Cooling Rate:
-
0-3℃(Can be adjusted)
Quick Details
-
Volume (m³):
-
Customized
-
Max Working Pressure(MPa):
-
0.9
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Aoying
-
Dimension(L*W*H):
-
Customized
-
Capacity:
-
Customized
-
Weight:
-
1000
-
Inner Material:
-
Q345R
-
Outer Material:
-
SA516
-
Design Pressure(MPa):
-
1.0
-
Design Standard:
-
GB150
-
Working Temperature(℃):
-
180 - 200 ℃
-
Product name:
-
Composite Autoclave
-
After-sales Service Provided:
-
Online Support
-
Material:
-
Q345R
-
Body Material:
-
SA516
-
Heating:
-
Electric Heater
-
Usage:
-
Composite
-
Cooling Rate:
-
0-3℃(Can be adjusted)
|
Main specification
|
|
UNITE
|
|
CONTENT
|
||||
|
|
DOOR CAP
|
PCS
|
|
1
|
||||
|
|
INTERIOR DIA
|
mm
|
|
According to client
|
||||
|
|
WORK LENGTH
|
mm
|
|
According to client
|
||||
|
|
DESIGN PRESSURE
|
MPa
|
|
1.0
|
||||
|
|
WORK PRESSURE
|
MPa
|
|
0.9
|
||||
|
|
DESIGN TEMPERATURE
|
℃
|
|
200
|
||||
|
|
WORK TEMPERATURE
|
℃
|
|
180
|
||||
|
|
BODY MATERIAL
|
|
|
SA516
|
||||
|
|
INTERIOR INSULATION
|
|
|
INTERIOR
|
||||
|
|
HEATING
|
|
|
Electric Heater
|
||||
|
|
COOLING MEDIUM
|
|
|
No
|
||||
|
|
USAGE
|
|
|
Composite
|
||||
|
|
LOADING WEIGHT
|
Kg
|
|
1000
|
||||
|
|
TEMPERATURE RISING RATE
|
℃/min
|
|
0-3℃(Can be adjusted)
|
||||
|
|
INITIAL TEMPERATURE
|
℃
|
|
RT
|
||||
|
|
COOLING RATE
|
℃/min
|
|
0-3℃(Can be adjusted)
|
||||
|
|
COOLING TEM. LIMIT
|
℃
|
|
60
|
||||
|
|
TEM. UNIFORMITY
|
℃
|
|
±2℃(NON-LOADING)
|
||||
|
|
TEM CONTROL ACCURACY
|
℃
|
|
±1℃
|
||||
|
|
THERMORCOUPLE NOZS.
|
|
|
8
|
||||
|
|
EXTERIOR SHELL TEM.
|
℃/min
|
|
+25 room temperature, non - over than 60
|
||||
|
|
PRESSURE CONTROL ACCURACY
|
MPa
|
|
±0.01Mpa
|
||||
|
|
PRESSURE RISING RATE
|
MPa/min
|
|
0-0.05(Can be adjusted)
|
||||
|
|
PRESSURE RELEASE RATE
|
MPa/min
|
|
0-0.05(Can be adjusted)
|
||||
|
|
SILENSER GRADE
|
dBA
|
|
≦75
|
||||
|
|
|
|
|
|
||||
|
Basic design
|
|
|
|
|
||||
|
|
ENVIRONMENT WORKING TEMPERATURE
|
℃/min
|
|
5~40℃
|
||||
|
|
POWER VOLTAGE
|
V
|
|
380V 3Phase
|
||||
|
|
FREQUENCY
|
Hz
|
|
50
|
||||
|
|
PENUMATIC PRESSURE
|
MPa
|
|
0.8
|
||||
|
|
PENUMATIC REQUIREMENTS
|
|
|
Non-oil, -5℃,-5℃
|
||||
|
|
CIRCULATION WATER PRESSURE
|
MPa
|
|
0.3
|
||||
|
|
|
|
|
|
||||
|
Air circulation
|
|
|
|
|
||||
|
|
AIR FLOW
|
|
|
Circle
|
||||
|
|
MOTOR QUANTITY
|
|
|
1
|
||||
|
|
MOTOR POWER
|
KW
|
|
3
|
||||
|
|
|
|
|
|
||||
|
Heating system
|
|
|
|
|
||||
|
|
HEATING
|
|
|
ELECTRICAL COILS
|
||||
|
|
COILS NOZZS
|
piece
|
|
1
|
||||
|
|
COIL MATERIAL
|
|
|
Stainless steel
|
||||
|
|
HEATING POWER
|
KW
|
|
24
|
||||
|
|
|
|
|
|
||||
|
Cooling system
|
|
|
|
|
||||
|
|
COOLING MEDIUM
|
|
|
Water cooling
|
||||
|
|
COOLER NOZS
|
SET
|
|
1
|
||||
|
|
COOLER MATERIAL
|
|
|
Stainless steel
|
||||
|
|
|
|
|
|
||||
|
Pressure system
|
|
|
|
|
||||
|
|
GAS TYPE
|
|
|
Air
|
||||
|
|
GAS PRESSURE
|
|
MPa
|
1.0
|
||||
|
|
AIR COMPRESSOR
|
|
KW
|
15
|
||||
|
|
DRYER
|
|
|
MATCH TO AIR COMPRESSOR
|
||||
|
|
AIR TANK
|
|
m³
|
/
|
||||
|
|
AIR TANK DESIGN PRESSURE
|
|
MPa
|
/
|
||||
|
|
|
|
|
|
||||
|
Circulation water
|
|
|
|
|
||||
|
|
WATER GRADE
|
|
|
Soft water
|
||||
|
|
PUMP
|
m³/h
|
|
2
|
||||
|
|
WATER TANK
|
m³
|
|
/
|
||||
|
|
COOLING TOWER
|
m³/h
|
|
2
|
||||
|
|
|
|
|
|
||||
|
Vacuum system
|
|
|
|
|
||||
|
|
VACUUM PORTS NOZS.
|
|
|
4
|
||||
|
|
LIMIT VACUUM GRADE
|
Mpa
|
|
-0.098MPa
|
||||
|
|
VACUUM MOTOR
|
|
|
Rotary vane pump
|
||||
|
|
VACUUM CONNECTION
|
|
|
1/2
|
||||
|
|
VACUUM MEASUREMENT CONNECTION
|
|
|
1/2
|
||||
|
|
|
|
|
|
||||
