Quick Details
-
Range of Spindle Speed(r.p.m):
-
70 - 118 r.p.m
-
Max. Turned Length (mm):
-
300 mm
-
Spindle Motor Power(kW):
-
0.75
-
Place of Origin:
-
China
-
Brand Name:
-
TIMAC
-
Voltage:
-
as customer's request
-
Dimension(L*W*H):
-
970*920*1140mm
-
Weight (KG):
-
290 KG
-
CNC or Not:
-
Normal
-
Automatic Grade:
-
Semi-automatic
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support
-
Color:
-
customized
-
Brake Lathe:
-
Brake Drum Disc Lathe
-
Power:
-
depends on different models
-
Weight:
-
290 kg
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
Italy, Peru, Russia, UAE, Romania
-
Certification:
-
CE & ISO9001
Quick Details
-
Max. Length of Workpiece (mm):
-
180
-
Machining Capacity:
-
Light Duty
-
Spindle Bore(mm):
-
130
-
Range of Spindle Speed(r.p.m):
-
70 - 118 r.p.m
-
Max. Turned Length (mm):
-
300 mm
-
Spindle Motor Power(kW):
-
0.75
-
Place of Origin:
-
China
-
Brand Name:
-
TIMAC
-
Voltage:
-
as customer's request
-
Dimension(L*W*H):
-
970*920*1140mm
-
Weight (KG):
-
290 KG
-
CNC or Not:
-
Normal
-
Automatic Grade:
-
Semi-automatic
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support
-
Color:
-
customized
-
Brake Lathe:
-
Brake Drum Disc Lathe
-
Power:
-
depends on different models
-
Weight:
-
290 kg
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
Italy, Peru, Russia, UAE, Romania
-
Certification:
-
CE & ISO9001

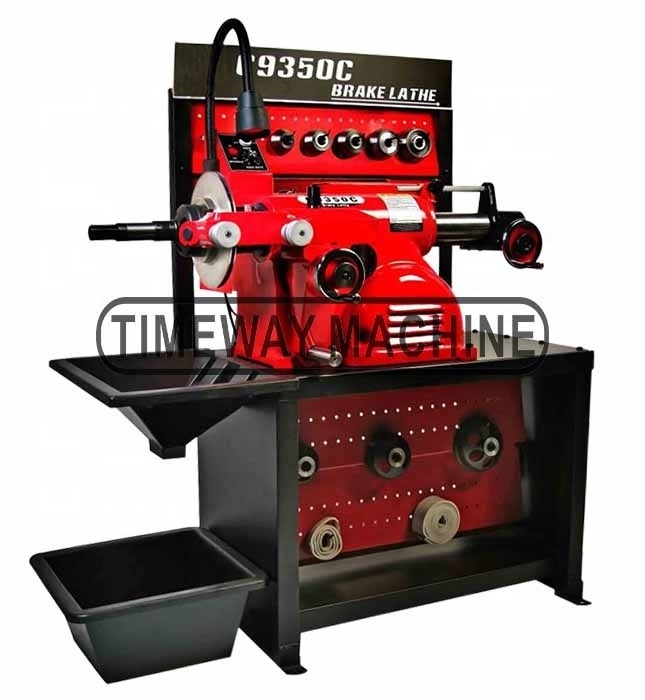

Brake Drum Lathe / Brake Lathe
Features:
1. Quickly, accurately and efficiently to cutting rotor.
2. Fast and slow setting allow cutting rotor.
3. Quickly, accurately and efficiently to cutting drum.
4. Finitely adjustably setting allow cutting drum.
5. Three kinds of speed 70,88,118 rpm to choose for spindle speed.
6. A convenient design allows to quickly change from rotor to drum, with cross feed extension plate will be
increase
the maximum rotor diameter to 22’/588mm.
7. Position of stop make the lathe stop automatically after cutting.
8. Fully equipped with adapter package.
Parameter:
| Specification | C9350 | C9350C | C9370 | C9370C | C9372 |
| Spindle Travel | 6-7/8” (175mm) | 9.875" (251mm) | 9″/229mm | ||
| Spindle speed | 70,88,118 rpm | 70,88,118 rpm | 70-320RPM | ||
| Spindle feed speed | 0.002"-0.02" (0.05-0.5mm)Rev | 0.002"-0.02" (0.05-0.5mm)Rev |
Rotor and drum feed rates 0-0.66mm |
||
| Cross feed speed | 0.002"-0.02" (0.05-0.5mm)Rev | 0.002"-0.01" (0.05-0.25mm)Rev | |||
| Handwheel graduations | 0.002"(0.05mm) | 0.002"(0.05mm) | |||
| Rotor diameter | 7" -15" (180mm-381mm) | 7" -18" (180mm-457mm) | 4″/102mm-24″/610mm | ||
| Rotor thickness | 1-7/8” (48mm) | 4" (102mm) | 2.85"/73mm | ||
| Drum diameter | 6" -28" (152mm-711mm) | 6" -28" (152mm-711mm) | 6″/152mm-28″/711mm | ||
| Drum depth | 6-7/8" (175mm) | 9.875" (251mm) | 9″/229mm | ||
| Motor | 110V/220V/380V,50/60HZ | 110V/220V/380V,50/60HZ | 110V/220V, 50/60HZ | ||
| Gross weight | 290 kg | 400 kg | 300kg | ||
| Dimension (L×W×H) | 970×920×1140mm | 1100mm ×1070mm×1140mm | 1130×720×750mm | ||
