Quick Details
-
Screw Speed (rpm):
-
100 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HUAMING
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
depend
-
Weight:
-
2000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
screw design:
-
single screw
-
After Warranty Service:
-
Video technical support
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
30:1
-
Screw diameter (mm):
-
55 mm
-
Screw Speed (rpm):
-
100 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HUAMING
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
depend
-
Weight:
-
2000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
screw design:
-
single screw
-
After Warranty Service:
-
Video technical support

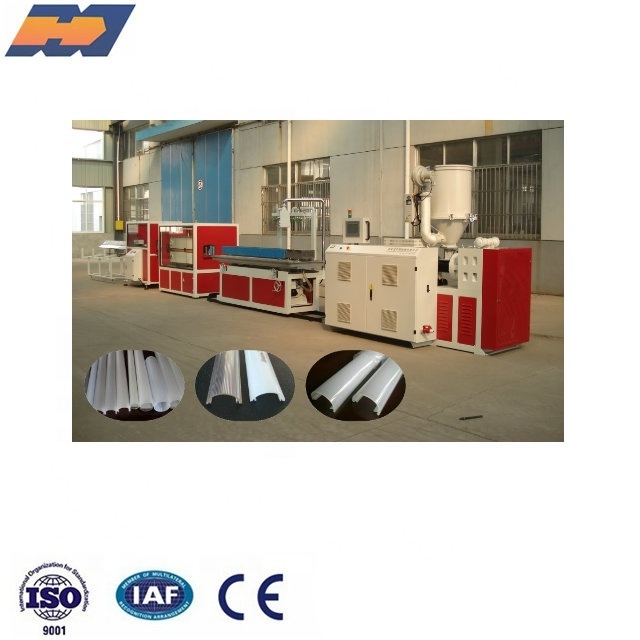

PC Lampshade Profile Production Line
1. Usage & scope of application
The production line is mainly used to produce fluorescent tube, LED tube, PC tube, transparent twin-color tube, frosted tube and types of fluorescent tube include glossy, two-color, abrasive, sandblasted, photodiffusion and semi-cycle, etc.
2. Machine composition & characteristics
Our profile production line has may advantages such as unique structure, high automation, easy to operate and continuous production stable and reliable, etc.
Production flow chart: raw material → specialized extruder → profile mould → vacuum setting table→ tractor → cutter → stacker
Main characteristics:
The extruder uses high efficient screw with frequency speed control to achieve stable start of low speed. The temperature errors can be controlled within ±1℃ by imported temperature meter. Different extruders are used according to different raw materials. The water collect basin for setting table is made by stainless steel with top quality vacuum pump. The tractor is controlled by inverter. It can lift manually or automatically. The cutter uses overseas blade to position and cut.
3. Machine parameters :
| Max.Section of Products(mm): |
50×50 |
|
Drawing speed(m/min): |
0.2-3 |
|
Power(kw): |
20 |
|
Capacity(kg/h): |
20 |
|
Water consumption (m3/h): |
1 |
|
Gas consumption(m3/h): |
0.15 |
|
Appearance size(m): |
12000×1000×1900 |
|
Weigh(kg): |
2000 |
We can also manufacture various kinds of PC covers according to customers requirement .
