Quick Details
-
Model Number:
-
NK-JX-01
-
Size:
-
Small Size, Small Size
-
Product name:
-

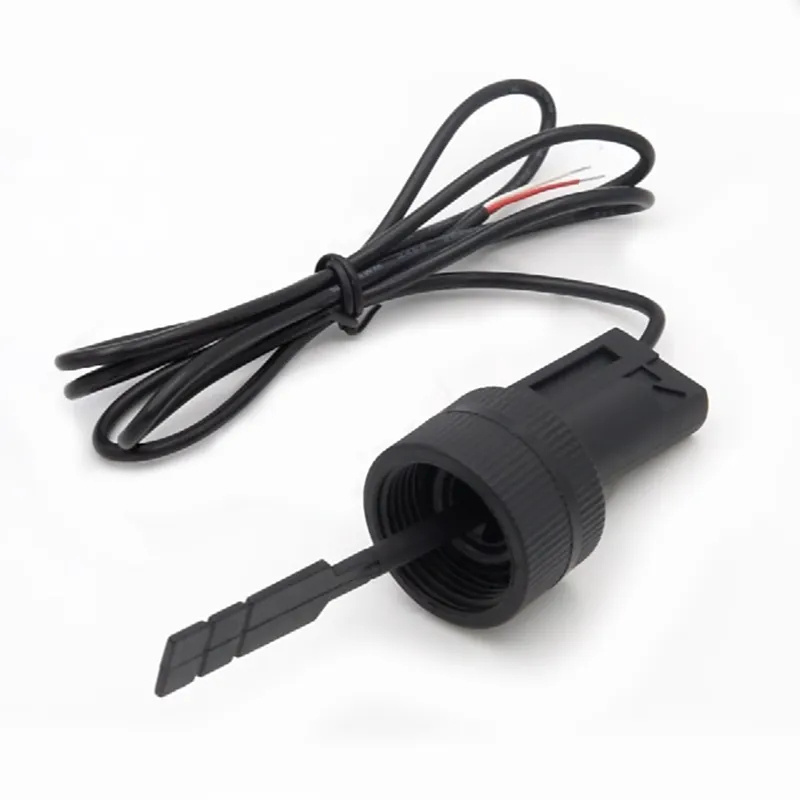

paddle water flow switch
-
Material:
-
Nylon
-
Voltage Rating:
-
DC5V-24V
-
Working Temperature:
-
-40 ~ 85°C
-
Voltage:
-
220V
-
Application:
-
Flow Switch
-
Withstand Hydraulic Pressure:
-
≤0.35Mpa
-
Media Type:
-
Liquid
-
Color:
-
Black
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
NEKO
-
Model Number:
-
NK-JX-01
-
Size:
-
Small Size, Small Size
-
Product name:
-
paddle water flow switch
-
Material:
-
Nylon
-
Voltage Rating:
-
DC5V-24V
-
Working Temperature:
-
-40 ~ 85°C
-
Voltage:
-
220V
-
Application:
-
Flow Switch
-
Withstand Hydraulic Pressure:
-
≤0.35Mpa
-
Media Type:
-
Liquid
-
Color:
-
Black
PRODUCT INFORMATION
INTRODUCTION
flow switch consists of magnetic core, external case and reed switch. Flow through the swtich activates the magnetic core to trigger switch action.
FEATURES
Flow Switch Assembly has fewer integral parts and is easy to install. Just insert the two ends of the flow switch with cable intothe correspondingly correct positions. Unplug existing (old) flow sensor, wrap enough tape and screw the switch into Run pump, do not overtighten it.
APPLICATIONS
it is used in the control of water circulation, water charging and discharging, water heating, water pump switch
on and off of solenoid valve, or powering on and off of water discharging for electric water heater, solar energy
water heater, air condition and other water systems.
on and off of solenoid valve, or powering on and off of water discharging for electric water heater, solar energy
water heater, air condition and other water systems.
PRODUCT SPECIFICATION
|
Item
|
Technical Parameters
|
|
|
|
Max Contact Rating
|
10W
|
50W
|
|
|
Max Switching Voltage
|
100VDC/100VAC
|
350VDC/300VAC
|
|
|
Min Breakdown Voltage
|
150VDC
|
500VDC
|
|
|
Max Switching Current
|
DC0.5A
|
DC0.7A/AC0.5A
|
|
|
Max Carry Current
|
1.0A
|
2.5A
|
|
|
Max Contact Resistance
|
100mΩ
|
100mΩ
|
|
|
Operating temperature
|
-1~+85°C
|
|
|
|
Material
|
1.5 ~ 15, 1.5 ~ 30, 1.5 ~ 50
|
|
|
|
Max carry pressure
|
1.2MPa
|
|
|
