Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Fangxin
-
Product name:
-

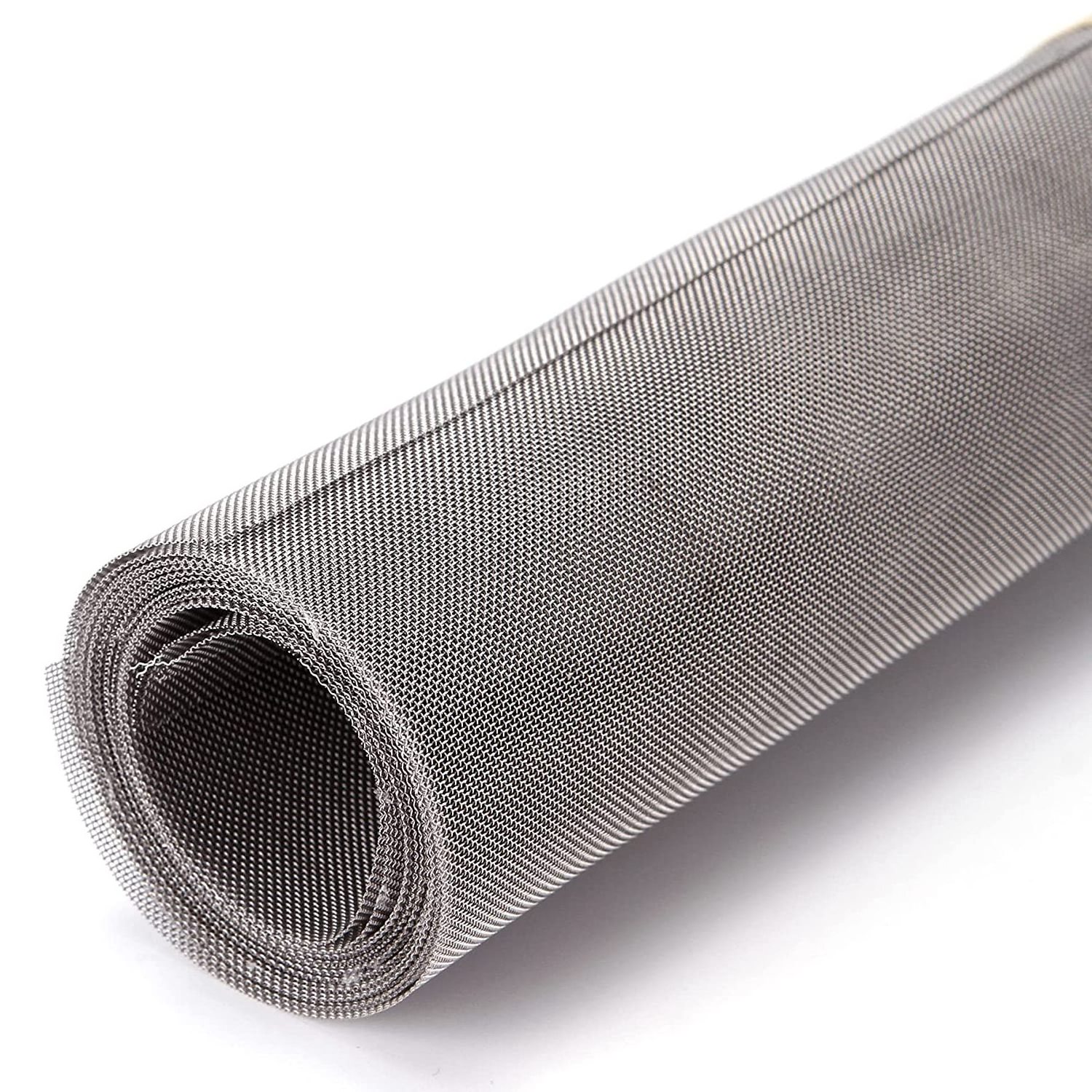

Stainless Steel Wire Mesh Screen
-
Usage:
-
Protection
-
Color:
-
Silver
-
Feature:
-
Corrosion Resistance
-
Hole shape:
-
Square Hole
-
Packing:
-
Wooden Case
-
MOQ:
-
1 Square Meter
-
Sample:
-
Avaliable
-
Mesh count:
-
3-400
-
Use:
-
Screening Test
Quick Details
-
Material:
-
stainless steel
-
Type:
-
Weave Wire Mesh
-
Application:
-
Woven Wire Mesh
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Fangxin
-
Product name:
-
Stainless Steel Wire Mesh Screen
-
Usage:
-
Protection
-
Color:
-
Silver
-
Feature:
-
Corrosion Resistance
-
Hole shape:
-
Square Hole
-
Packing:
-
Wooden Case
-
MOQ:
-
1 Square Meter
-
Sample:
-
Avaliable
-
Mesh count:
-
3-400
-
Use:
-
Screening Test
Product Description
Feature of the stainless steel wire mesh
* Corrosion resistance.
* Anti-acid and alkali resistance
* Anti-high temperature.
* Good filter performance.
* Long using life
* Corrosion resistance.
* Anti-acid and alkali resistance
* Anti-high temperature.
* Good filter performance.
* Long using life
Application
* In acid,alkali environment conditions sieving and filtering.
* Petroleum industry as mud mesh.
* Chemical fiber industry as screen mesh.
* Plating industry as acid cleaning mesh.
* Petroleum industry as mud mesh.
* Chemical fiber industry as screen mesh.
* Plating industry as acid cleaning mesh.
Specification
|
Material
|
Stainless Steel wire 304,304L,316,316L, etc
|
|
|
|
|||
|
Wire diameter
|
0.025-2.0mm
|
|
|
|
|||
|
Weaving type
|
plain weave,twill weave,dutch weave,etc.
|
|
|
|
|||
|
Mesh counts |
Plain weave can be woven up to 400 mesh.
Twill weave can be woven from 400 to 635mesh. Dutch weave can be woven up to 3200mesh |
|
|
|
|||
|
Technique
|
woven wire mesh
|
|
|
|
|||
|
Rolls size
|
1x30m 2x30m 1.524x30m 0.914x30m etc.
|
|
|
|
|||
|
Surface
|
smooth
|
|
|
|
|||
|
Application
|
Mainly used in petroleum, electronics, chemical industry,medicine,textile,food,mahinery,
building,nuclear,power,aerospace,military industry etc. |
|
|
|
|||
|
Feature
|
magnetic,acid resistance,alkali resistance,temperature resistance
|
|
|
|
|||
Products Details
|
Stainless Steel Woven Wire Mesh, Wire Mesh Screen, Screen Mesh
|
|
|
|
|
|
|||||
|
mesh/inch
|
wire diameter
mm |
aperture
mm |
mesh/inch
|
wire diameter
mm |
aperture
mm |
|||||
|
2mesh
|
1.80
|
10.90
|
60mesh
|
0.15
|
0.273
|
|||||
|
3mesh
|
1.60
|
6.866
|
70mesh
|
0.14
|
0.223
|
|||||
|
4mesh
|
1.20
|
5.15
|
80mesh
|
0.12
|
0.198
|
|||||
|
5mesh
|
0.91
|
4.17
|
90mesh
|
0.11
|
0.172
|
|||||
|
6mesh
|
0.80
|
3.433
|
100mesh
|
0.10
|
0.154
|
|||||
|
8mesh
|
0.60
|
2.575
|
120mesh
|
0.08
|
0.132
|
|||||
|
10mesh
|
0.55
|
1.990
|
140mesh
|
0.07
|
0.111
|
|||||
|
12mesh
|
0.50
|
1.616
|
150mesh
|
0.065
|
0.104
|
|||||
|
14mesh
|
0.45
|
1.362
|
160mesh
|
0.065
|
0.094
|
|||||
|
16mesh
|
0.40
|
1.188
|
180mesh
|
0.053
|
0.088
|
|||||
|
18mesh
|
0.35
|
1.060
|
200mesh
|
0.053
|
0.074
|
|||||
|
20mesh
|
0.30
|
0.970
|
250mesh
|
0.04
|
0.061
|
|||||
|
26mesh
|
0.28
|
0.696
|
300mesh
|
0.035
|
0.049
|
|||||
|
30mesh
|
0.25
|
0.596
|
325mesh
|
0.03
|
0.048
|
|||||
|
40mesh
|
0.21
|
0.425
|
350mesh
|
0.03
|
0.042
|
|||||
|
50mesh
|
0.19
|
0.318
|
400mesh
|
0.25
|
|
|||||
1.Plain Weave: also called tabby weave, linen weave or taffeta weave, is the most basic type of weaves. In plain weave, the warp and weft are aligned so they form a simple criss-cross pattern. Each weft thread crosses the warp threads by going over one, then under the next, and so on. The next weft thread goes under the warp threads that its neighbor went over, and vice versa.
2. Twill Weave: In a twill weave, each weft or filling yarn floats across the warp yarns in a progression of interlaces to the
right or left, forming a distinct diagonal line. This diagonal line is also known as a wale. A float is the portion of a yarn that
crosses over two or more yarns from the opposite direction.
2. Twill Weave: In a twill weave, each weft or filling yarn floats across the warp yarns in a progression of interlaces to the
right or left, forming a distinct diagonal line. This diagonal line is also known as a wale. A float is the portion of a yarn that
crosses over two or more yarns from the opposite direction.
Packing & Delivery
Packing:Opp bag + wooden case
We can make your own LOGO on the carton according to your requirements.Welcome to contact us.
Shipping:By air,by sea or by express:FedEx IE(DTD),FedEx IP(DTD),SF express,TNT,EMS,DHL
We will choose the reasonable transportation according to the products you purchase.
We can make your own LOGO on the carton according to your requirements.Welcome to contact us.
Shipping:By air,by sea or by express:FedEx IE(DTD),FedEx IP(DTD),SF express,TNT,EMS,DHL
We will choose the reasonable transportation according to the products you purchase.
