Quick Details
-
Rated Loading Capacity:
-
5 ton
-
Rated Lifting Moment:
-
customize
-
Max. Lifting Height:
-
15.8m
-
Span:
-
4.5-15.8
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WONWAY
-
Showroom Location:
-
USA
-
Product name:
-
Spider Crane
-
Usage:
-
Outdoor Construction Goods Lifting
-
Key words:
-
Hydraulic Mobile Lift Floor Crane
-
Crane type:
-
Truck Crane Mobile Crane Hydraulic Crane
-
Type:
-
Flexible
-
Capacity:
-
5.0T
-
Color:
-
Customer Requirements
-
Applicaton:
-
Cargo Lifting Crane
-
Power:
-
11KW 380V
Quick Details
-
Weight (KG):
-
5000
-
Marketing Type:
-
Hot Product 2023
-
Application:
-
construction
-
Rated Loading Capacity:
-
5 ton
-
Rated Lifting Moment:
-
customize
-
Max. Lifting Height:
-
15.8m
-
Span:
-
4.5-15.8
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WONWAY
-
Showroom Location:
-
USA
-
Product name:
-
Spider Crane
-
Usage:
-
Outdoor Construction Goods Lifting
-
Key words:
-
Hydraulic Mobile Lift Floor Crane
-
Crane type:
-
Truck Crane Mobile Crane Hydraulic Crane
-
Type:
-
Flexible
-
Capacity:
-
5.0T
-
Color:
-
Customer Requirements
-
Applicaton:
-
Cargo Lifting Crane
-
Power:
-
11KW 380V
Our products

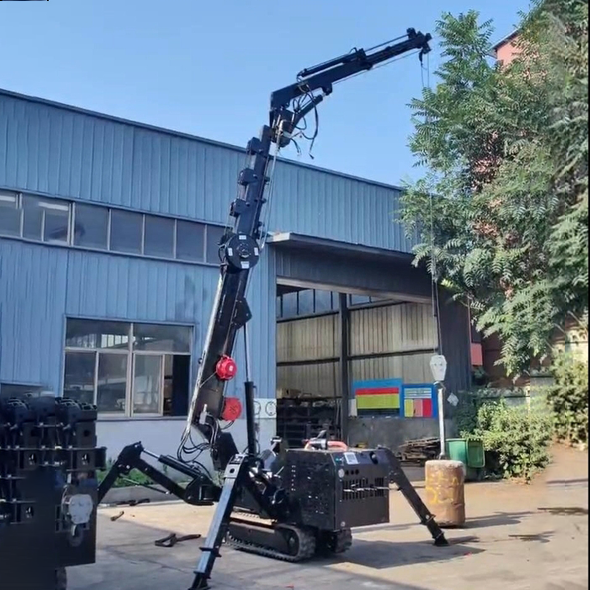

Crawler spider crane is a powerful heavy-lifting machine that is designed to operate in difficult terrain and confined spaces. It is a versatile piece of equipment that can perform a wide range of lifting tasks, from building construction to infrastructure maintenance, and from wind turbine installation to shipyard operations.
Details
Advantage:
1. The Crawler Spider Crane for moving loads quickly, easily, and safely.
1. The Crawler Spider Crane for moving loads quickly, easily, and safely.
2. Spider crane, suitable for occasions with limited space.
3. The spider crane is a full-slewing, boom-type, full-hydraulic transmission crane.
4. The main arm section adopts a U-shaped structure. The single-stage telescopic oil cylinder and the wire rope telescopic mechanism can realize the synchronous expansion and contraction of the main arm.
|
5 tons spider crane parameters
|
|
|
|
Lifting arm
|
4.5 m/5 sections （15.8 m）
|
|
|
Amplitude of variation
|
Double variable amplitude cylinder
|
|
|
Turntable
|
840mm inner tooth disc
|
|
|
Winch
|
6 tons of winch
|
|
|
Wire rope
|
10mm thick 80 meters long
|
|
|
Outrigger
|
4 double legs (manual swing hydraulic telescopic)
|
|
|
Body size
|
5 meters long, 1.6 meters wide and 2 meters high
|
|
|
Track size
|
2.6 meters long and 350 wide
|
|
|
Weight
|
5 Tons
|
|
|
engine
|
Yunnei 490 Four cylinders
|
|
|
Electric motor
|
11 KW 380V
|
|
|
Operating system
|
Onboard seat operation (Remote control is optional)
|
|
