Quick Details
Quick Details
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
DERUITE
-
Model Number:
-
KTS442R

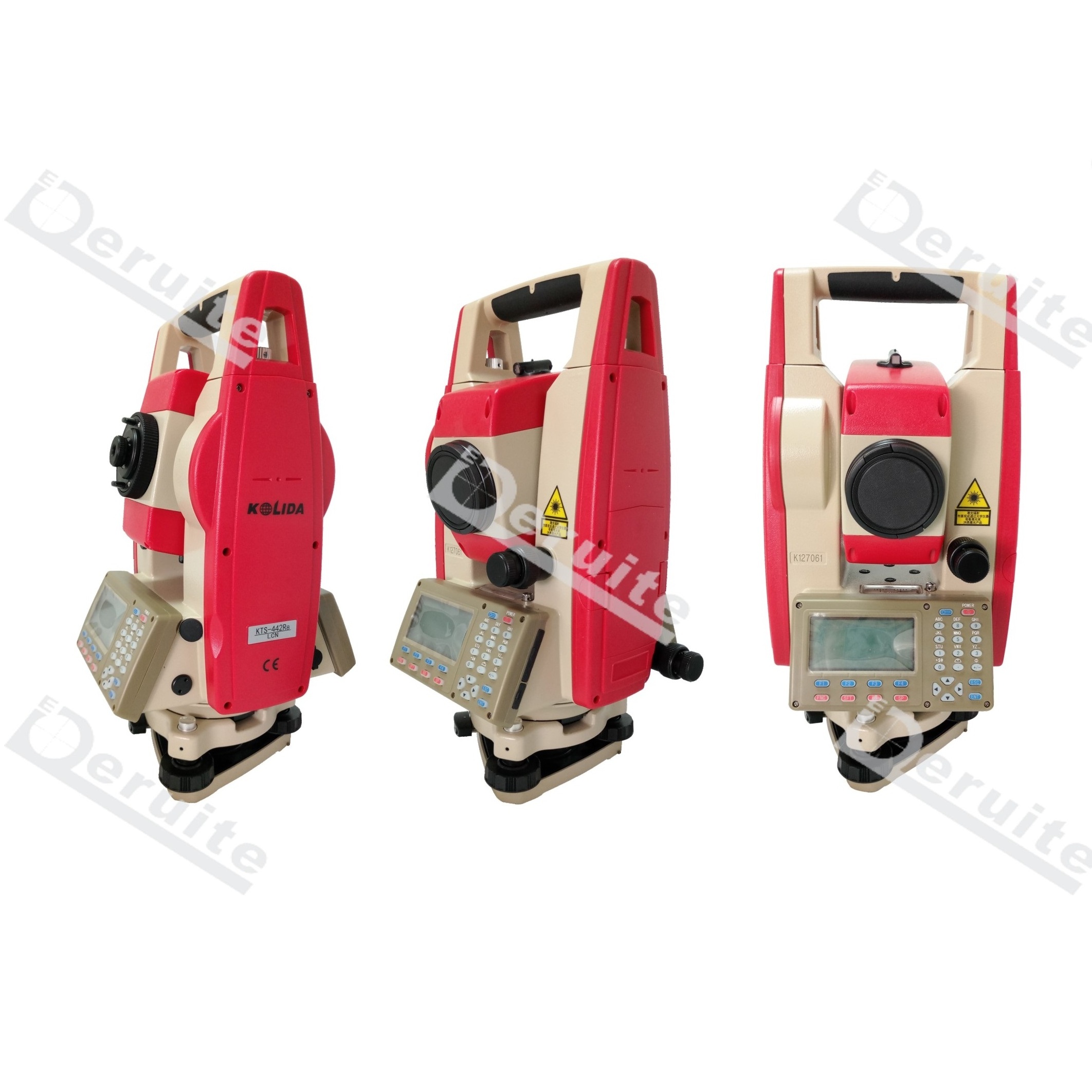

KTS-442R8LCN can measure 5km with a single prism and 800 meters with non-prism. It has been improved in circuit structure and mechanical structure. The entire circuit works more stable and reliable, forming an effective protection of the current, extending the battery working time; The Non-prism infrared laser total station is equipped with laser centering and laser pointing functions, which are more visual and intuitive; SD memory card makes the mass storage expand by 1G.
SPECIFICATION:
| Models and technical parameters | 442LL | 442R4L | 442R6L | 442R8L | 442R10L | |
| Distance measurement | With prism | 5000m | ||||
| Without prism | 400m | 600m | 800m | 1000m | ||
| Measurement Time | Fine:0.3s, Tracking: 0.1s | |||||
| Accuracy | 2mm+2ppm(with prism), 3mm+2ppm(without prism) | |||||
| Angle measurement | Angle measurement mode | Absolute angle encoder system | ||||
| Minimum reading | 0.1" /1" /5" Optional | |||||
| Accuracy | 2" | |||||
| Telescope | Image | Erect | ||||
| Magnification | 30X | |||||
| Objective aperture | Telescope: 45mm, Distance Meter: 50mm | |||||
| Field of view | 1°30' | |||||
| Minimum of focusing distance | 1.0m | |||||
| Resolution | 3" | |||||
| Compensation | System | Dual-Axis Liquid-Electric Sensor Compensation | ||||
| Range | ±6' | |||||
| Accuracy | 1' | |||||
| Level | Plate level | 30"/2mm | ||||
| Circular level | 8'/2mm | |||||
| Laser Plummet | Accuracy | 1.5mm (in 1.5m) | ||||
| Laser spot Diameter | 2.5mm (in 1.5m) | |||||
| Display | Type | 2.8" LCD Color Screen 240*320dpi | ||||
| Power | Battery | Rechargeable Li-ion battery | ||||
| Voltage | DC 7.4V | |||||
| Continue Working Time | 25hours | |||||
| Weight | 5.2kg | |||||
| Size | 160*150*335mm | |||||
