Quick Details
-
Brand Name:
-
RFcard
-
Read card type:
-
magnetic card
-
Read card Rrack:
-
123track
-
Read card format:
-
ISO7811,AMMVA,CADMV
-
Number keys:
-
0
-
Write function:
-
YES
-
Warranty:
-
1Year
-
ODM/OEM service:
-
YES
-
Interface:
-
USB
-
Built-in battery:
-
NO
-
One generation:
-
YES
Quick Details
-
Frequency:
-
0
-
Protocol:
-
ISO7811
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
RFcard
-
Read card type:
-
magnetic card
-
Read card Rrack:
-
123track
-
Read card format:
-
ISO7811,AMMVA,CADMV
-
Number keys:
-
0
-
Write function:
-
YES
-
Warranty:
-
1Year
-
ODM/OEM service:
-
YES
-
Interface:
-
USB
-
Built-in battery:
-
NO
-
One generation:
-
YES
rfWith free SDK High quality magnetic chip card reader writer programmable ic chip card reader writer MCR200 emv reader writer
Descrip tion:
MCR200 can read write magnetic card and EMV chip card, it can provide reliable magnetic stripe and EMV chip card reading/ writing solution. It's an ideal choice for retail, payment, security and other related systems.
Features:
- Compact size, easy to use
- Support Magnetic card and EMV chip card
-
Read/ write PBOC2.0,
IBM, ISO, DIN, ANSI card
- Read/ write all 1&2&3 tracks, 300-4000 oe
- Manual swipe to read/ write data with a single pass
- Tri-color LED & beeper for power on/ reading/ writing operation
- PIN pad port & two extra serial port expander available
- Module structure technology applied to ensure high efficiency and reliability
Specification:
|
Model |
MCR200 |
|
Card standard |
IBM, ISO, DIN, ANSI |
|
Manual feeding speed |
20~120mm/s |
|
Writing density |
1st track 210 BPI (max 76 characters) |
|
2nd track 75 BPI/210 BPI (max 36/104 characters) |
|
|
3rd track 210 BPI (max 104 characters) |
|
|
Interface |
RS232, 2400/4800/9600 bps at option |
|
Reliability |
MTBF > 20000H, MTTR < 30 MIN |
|
Lifetime |
Magnetic head: over 300,000 times IC card: over 100,000 times SAM card: over 5,000 times |
|
Power supply |
AC 110V~240V |
|
Working condition |
0~40° C, 15%~85% RH non-condensing |
|
Dimensions |
210 x 60 x 60mm |
|
Weight
|
1.4Kg
|
|
Housing |
Plastic Case, ivory color |

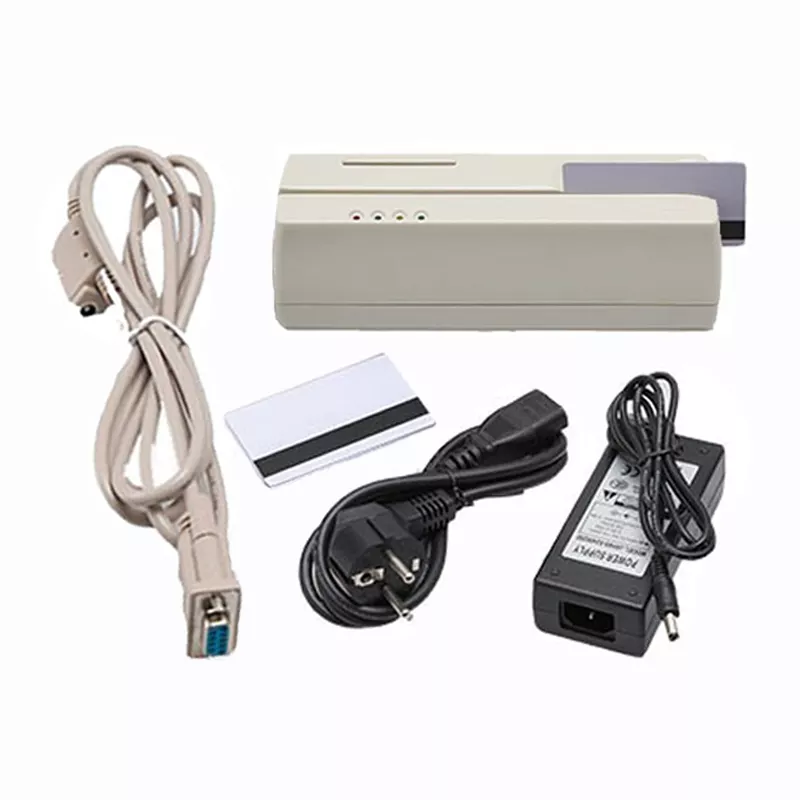

EMV reader and writer Package:
1). 1x Brand New MCR200
2). 1x Power Adapter
3). 1x USB Adapter
4). 1x Software CD
5). Some blank magnetic cards
