Quick Details
-
Product name:
-

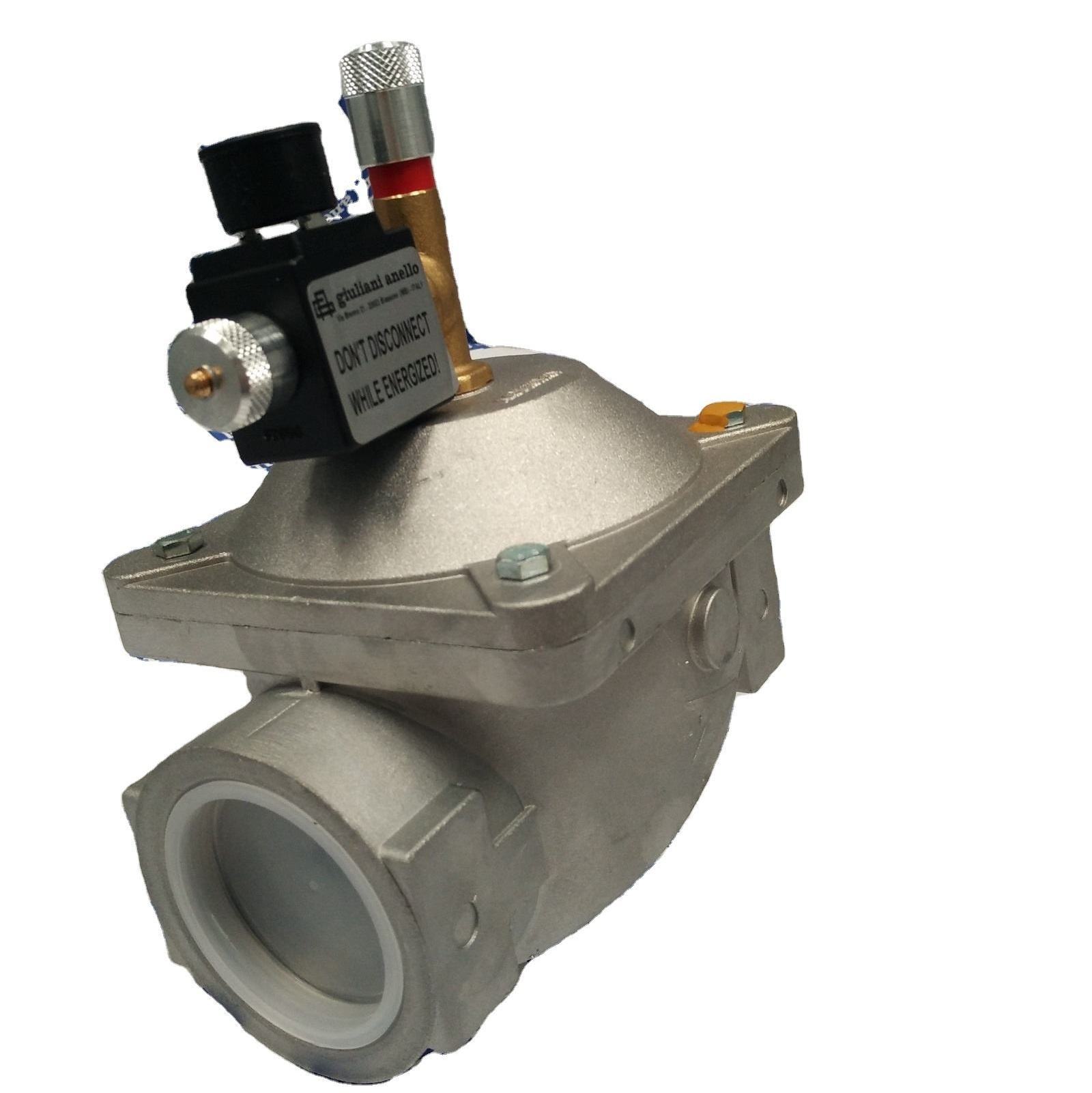

WATTS Giuliani MSV212/300 6B Series Anello Emergency Shut-Off Valve
-
Model:
-
MSV212/6B DN65 MSV300/6B DN80
-
Brand:
-
Giuliani
-
Color:
-
Silver
-
power supply:
-
12/24/230VDC 50/60HZ
-
Description Connections:
-
DN65/80
-
Temperature limite ambiente:
-
-20° +60°C
-
Max. inlet pressure:
-
0,6 MPa (MSV 6 b)
-
Type of medium:
-
methane ,natural gas propane-butane biogas1
-
Application/Usage:
-
Gas Burners Industrial Accessories
Quick Details
-
Place of Origin:
-
Germany
-
Model Number:
-
MSV212/300 6B
-
Brand Name:
-
Giuliani
-
Product name:
-
WATTS Giuliani MSV212/300 6B Series Anello Emergency Shut-Off Valve
-
Model:
-
MSV212/6B DN65 MSV300/6B DN80
-
Brand:
-
Giuliani
-
Color:
-
Silver
-
power supply:
-
12/24/230VDC 50/60HZ
-
Description Connections:
-
DN65/80
-
Temperature limite ambiente:
-
-20° +60°C
-
Max. inlet pressure:
-
0,6 MPa (MSV 6 b)
-
Type of medium:
-
methane ,natural gas propane-butane biogas1
-
Application/Usage:
-
Gas Burners Industrial Accessories
Product Description
WATTS Giuliani OR
MSV212/300 6B Series
Anello Emergency Shut-Off Pressure
Regulating Manually Resetting Valve
For Industrial
INSTALLATION:
This valve can be installed in any positions. On horizontal pipes it is
advisable to have the internal duct facing upward. Be careful to the following
instructions during the installation phase:
1. never install the valve using the duct for leverage;
2. make certain that the piping is well aligned and that there are no
obstacles or dirties inside the same;
3. follow the flow direction according to the arrow printed on the valve's
body;
4. check that all the parameters such as pressure, voltage, temperature
and others are followed;
5. install the valve such as to avoid the contact with plastered walls;
6. do not plug or obstruct the knob guide as this could compromisethe
valve’s function;
7. fit a suitable gas filter upstream the valve;
8. If the solenoid valve is installed outside, as usual, it is suggestedto
protect it by the atmosphere agents;
9. The electrical connections to the coil have to be carried out by qualified personel and in compliance with the regulations in force. Power supply cable: 3 x 0,75 mm² H05VV-F.
advisable to have the internal duct facing upward. Be careful to the following
instructions during the installation phase:
1. never install the valve using the duct for leverage;
2. make certain that the piping is well aligned and that there are no
obstacles or dirties inside the same;
3. follow the flow direction according to the arrow printed on the valve's
body;
4. check that all the parameters such as pressure, voltage, temperature
and others are followed;
5. install the valve such as to avoid the contact with plastered walls;
6. do not plug or obstruct the knob guide as this could compromisethe
valve’s function;
7. fit a suitable gas filter upstream the valve;
8. If the solenoid valve is installed outside, as usual, it is suggestedto
protect it by the atmosphere agents;
9. The electrical connections to the coil have to be carried out by qualified personel and in compliance with the regulations in force. Power supply cable: 3 x 0,75 mm² H05VV-F.
MSV solenoid valves
from Guiliani Anello are designed to isolate supply of gas to monitored facilities. They are available in two manufacturing options that differ with the operation pressure of gas lines: MSV 0.5b up to 50 kPa and MSV 6b up to 0.6 MPa and can operate with two control voltages for valve solenoids: 12 VDC or 230 V AC. The MSV valves can be installed in areas with the class of hazards from 2 to 22. In the mode of regular operation the valve is open and enables unobstructed flow of gas. Tight shutoff of the valve resulting in isolation of gas flow is carried out against an electric signal, provided for instance by the Control Unit of the Gas Detection System. The valve can be reopened only manually after making sure that the reason for the valve triggering is eliminated. Device structure: aluminium body and lid, actuating spring made of alloy steel, adjusting steel piston, rubber (NBR) membrane and sealing ring, other parts made of brass, aluminium or steel with galvanized coating. These shutoff valves are installed between the main valve at the gas line branch and the building entrance.
Specification
item
|
value
|
Condition
|
New
|
Warranty
|
1.5 years
|
Applicable Industries
|
Manufacturing Plant, Food & Beverage Factory, Farms, Home Use, Food Shop, Printing Shops, Energy & Mining, Food & Beverage Shops
|
Weight (KG)
|
4
|
Showroom Location
|
None
|
Video outgoing-inspection
|
Provided
|
Machinery Test Report
|
Provided
|
Place of Origin
|
Italy
|
Brand Name
|
Giuliani
|
Type
|
Gas Burner
|
Product name
|
WATTS Giuliani OR MSV212/300 6B Series Anello Emergency Shut-Off Valve
|
Model
|
MSV212/6B DN65 MSV300/6B DN80
|
Brand
|
Giuliani
|
Color
|
Silver
|
power supply
|
12/24/230VDC 50/60HZ
|
Description Connection
|
DN65/80
|
Temperature limite ambiente
|
-20° +60°C
|
Max. inlet pressure
|
0,6 MPa (MSV 6 b)
|
Type of medium
|
methane ,natural gas propane-butane biogas1
|
Application/Usage
|
Gas Burners Industrial Accessories
|
