Quick Details
-
Color:
-
Full color
-
Panel Size:
-
320*160mm, 320*160mm
-
Place of Origin:
-
China(Mainaland)
-
Model Number:
-
PH2
-
Brightness:
-
800 nits, 800 nits
-
pixel density:
-
250000 pixels, 250000 pixels
-
Lifespan (hours):
-
100000 hours, 100000 hours
-
IP Rating:
-
IP31, IP31
-
HS Code:
-
8531200000
-
Resolution:
-
160*80, 320*160 Dots
-
View Angle（H/V）:
-
120/160, 120/160
-
Product name:
-
P2 Soft Led Display
-
Refresh rate:
-
3840Hz
-
LED type:
-
SMD2121 (3in1)
-
Size:
-
320*160mm
-
Scan mode:
-
1/32 scan
-
Operating system:
-
Nova/LINSN/HD/Colorlight
-
Warranty:
-
2 years
-
Certificate:
-
CE, RoHS, CCC, ETL
Quick Details
-
Application:
-
Indoor
-
Type:
-
LED
-
Brand Name:
-
Chipstar
-
Color:
-
Full color
-
Panel Size:
-
320*160mm, 320*160mm
-
Place of Origin:
-
China(Mainaland)
-
Model Number:
-
PH2
-
Brightness:
-
800 nits, 800 nits
-
pixel density:
-
250000 pixels, 250000 pixels
-
Lifespan (hours):
-
100000 hours, 100000 hours
-
IP Rating:
-
IP31, IP31
-
HS Code:
-
8531200000
-
Resolution:
-
160*80, 320*160 Dots
-
View Angle（H/V）:
-
120/160, 120/160
-
Product name:
-
P2 Soft Led Display
-
Refresh rate:
-
3840Hz
-
LED type:
-
SMD2121 (3in1)
-
Size:
-
320*160mm
-
Scan mode:
-
1/32 scan
-
Operating system:
-
Nova/LINSN/HD/Colorlight
-
Warranty:
-
2 years
-
Certificate:
-
CE, RoHS, CCC, ETL
Product Description

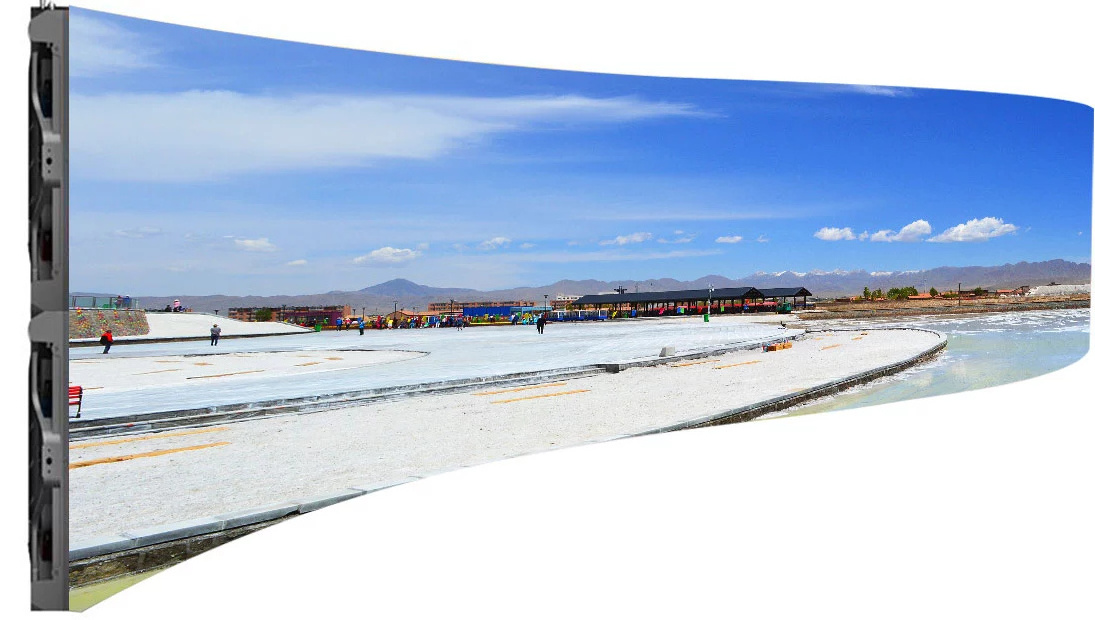

Flexible LED Display is also called as flexible LED screen or soft LED display or soft LED screen. the main feature of those LED display is that the LED panel is soft, flexible. Compare to indoor fixed LED display and outdoor fixed LED display, the flexible LED panel can be any designed, bend and swing to do any shape LED video wall as you want.
High Flexibility

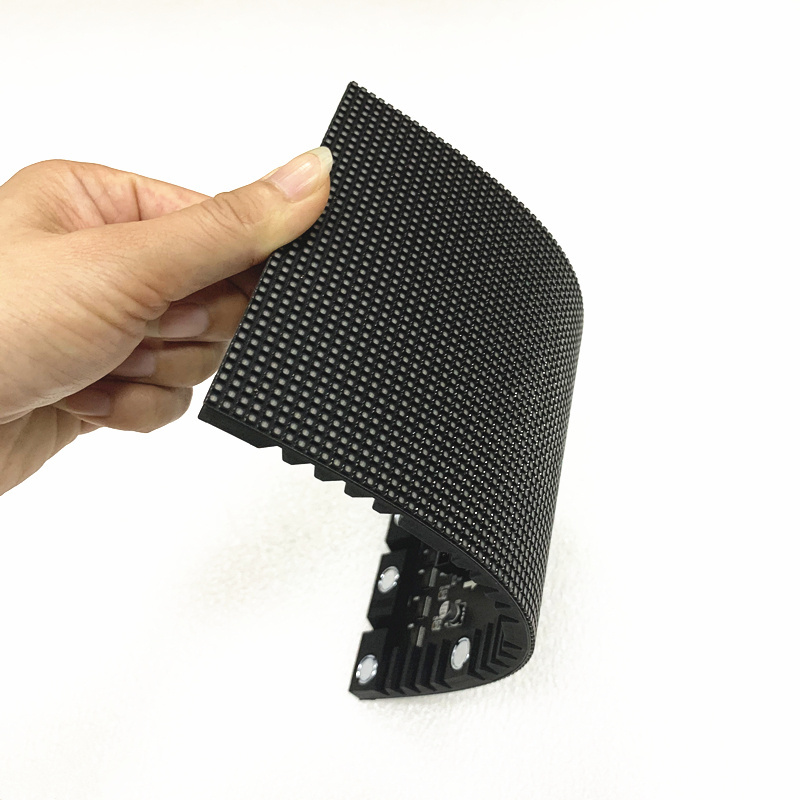

Benefit of the special material silicone mask. One of the main features of the flexible LED Panel is its ability to bend without breaking. Excellent flexibility, stable and high quality to make more complicated shapes for the LED display as customer’s requirements.

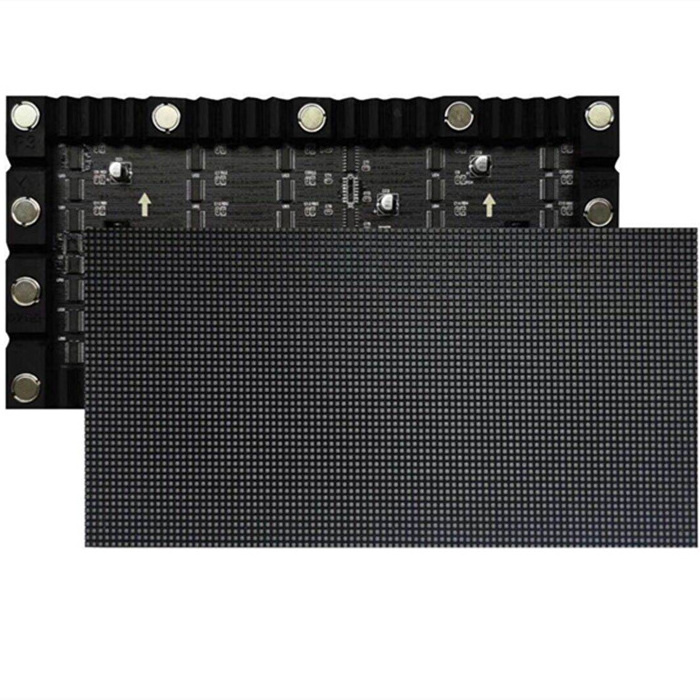

Unlike the common PCB made LED display modules , flexible LED display panel is only weight 75g without bottom frame and mask, the
weight is only 150g with bottom frame and mask. Super thin and Super soft can reduce the LED display structure load capacity
greatly.
weight is only 150g with bottom frame and mask. Super thin and Super soft can reduce the LED display structure load capacity
greatly.
Customized Shape

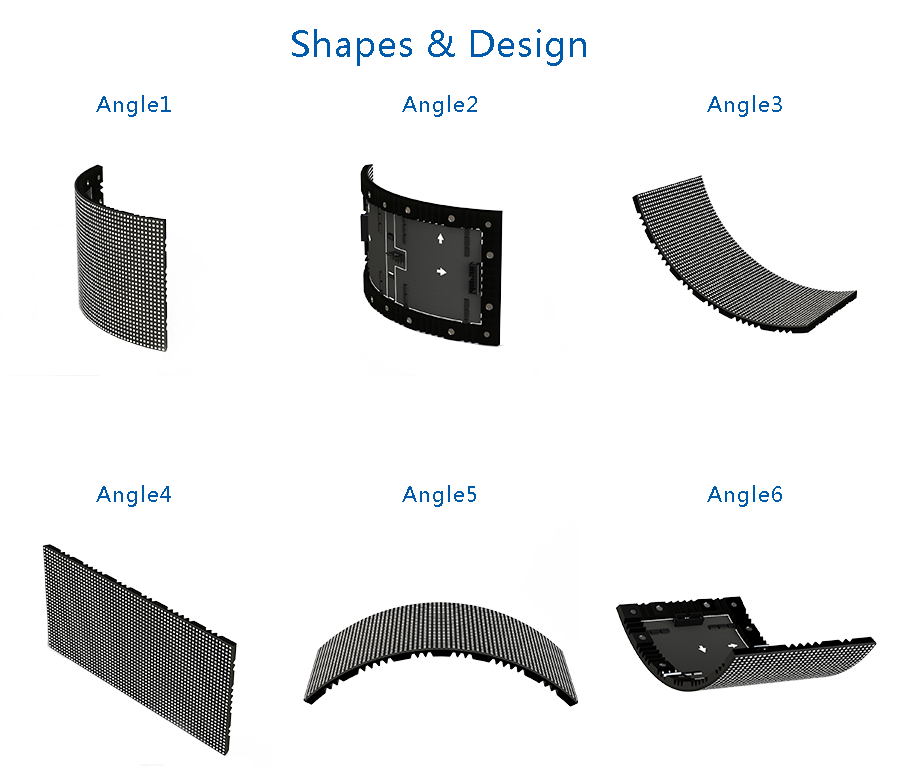

Flexible LED sign can be customized any shape as customer’s need. We have a range of sizes to meet led display requirements. Such as ball LED display, cube LED display, cylindrical LED display, round LED display, Oval LED display, wavy LED Screen and so on.
Application Scenarios
Flexible LED video wall can be used in various fields and application, such as shopping center, mall, bar, disco, stage, indoor building, outdoor building, television, exhibition, show. especially for all kinds of irregular buildings, UNIT flexible LED screen is suitable very well.
Specification
|
Module Number
|
PH1.86
|
PH2
|
PH2.5
|
PH5
|
|
1.Pixel Pitch
|
1.86mm
|
2mm
|
2.5mm
|
5mm
|
|
Physical Density
|
289050 pixels/m2
|
250000 pixels/m2
|
160000 pixels/m2
|
40000 pixels/m2
|
|
Led Arrangement
|
3 in 1SMD
|
3 in 1SMD
|
3 in 1 SMD
|
3 in 1 SMD
|
|
Module Resolution
|
172*86 pixels
|
160*80 pixels
|
128*64 pixels
|
64*32 pixels
|
|
Module Dimensions
|
320*160 mm
|
320*160 mm
|
320*160 mm
|
320*160 mm
|
|
Cabinet Dimensions
|
custom size
|
custom size
|
custom size
|
custom size
|
|
Brightness
|
800nits
|
800 nits
|
800 nits
|
800 nits
|
|
Max Power Consumption
|
45w/panel
|
45w/panel
|
45w/panel
|
45w/panel
|
|
Ave Power Consumption
|
15w/panel
|
15w/panel
|
15w/panel
|
15w/panel
|
|
Viewing Angle
|
160°(W) 160°(H)
|
160°(W) 160°(H)
|
160°(W) 160°(H)
|
160°(W) 160°(H)
|
|
Operating Power source
|
110-240V AC 50-60Hz
|
110-240V AC 50-60Hz
|
110-240V AC 50-60Hz
|
110-240V AC 50-60Hz
|
|
Operating Temperature
|
-20℃～+50℃
|
-20℃～+50℃
|
-20℃～+50℃
|
-20℃～+50℃
|
|
Refresh Rate
|
3840Hz
|
3840Hz
|
3840Hz
|
3840Hz
|
|
IP Rating
|
IP30
|
IP30
|
IP30
|
IP30
|
|
Signal Input Source
|
Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI
|
Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI
|
Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI
|
Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI
|
|
Certificate
|
ETL, FCC, CCC, RoHS, CE
|
ETL, FCC, CCC, RoHS, CE
|
ETL, FCC, CCC, RoHS, CE
|
ETL, FCC, CCC, RoHS, CE
|
