Quick Details
-
Filling Accuracy:
-
±1%
-
Voltage:
-
110v/220v
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
KEFAI
-
Dimension(L*W*H):
-
130*90*100CM
-
Weight:
-
130 KG
-
Product name:
-
Automatic Bottle Liquid Filling Capping Machine
-
Function:
-
Bottle Filling Capping
-
Usage:
-
liquid Filling Packaging
-
Material:
-
Stainless Steel
-
Operation:
-
Automatic Operation
-
Filling speed:
-
30-60 Bottles/min
Quick Details
-
Machinery Capacity:
-
4000BPH, 2000BPH
-
Packaging Material:
-
Plastic, Glass
-
Filling Material:
-
Beer, Other, Milk, Water, Oil, Juice
-
Filling Accuracy:
-
±1%
-
Voltage:
-
110v/220v
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
KEFAI
-
Dimension(L*W*H):
-
130*90*100CM
-
Weight:
-
130 KG
-
Product name:
-
Automatic Bottle Liquid Filling Capping Machine
-
Function:
-
Bottle Filling Capping
-
Usage:
-
liquid Filling Packaging
-
Material:
-
Stainless Steel
-
Operation:
-
Automatic Operation
-
Filling speed:
-
30-60 Bottles/min
Warm reminder :
The minimum product price we set is the price of a single
Diaphragm pump liquid filling
machine. If you need the price of a filling line,
you can refer to the highest price we set
.
For specific circumstances, you can contact our professional customer service staff.
Products Description
Desktop Filling Machine
Features
(1).PLC combined with LCD touch screen panel,the setting and operation is clear and easily.
(2).The equipment is complied with GMP requirements and made of SUS304 stainless steel and high-class aluminium alloy.
(3).The machine has many functions such as measuring, filling, counting.
(4).The filling speed,volume can be adjusted.
(5). The machine can be used in production line with conveyor belt.
(6). Photoelectric sensor,mechatronic filling adjusting system,material level control
feeding system.
|
Model
|
KF01-L-D
|
|
Filling volume
|
4×(5-500ml) (Can be customized according to your requirements)
|
|
Filling speed
|
1600b/h for 500ml
|
|
Filling precision
|
±0.5%
|
|
Filling head
|
4(Can be customized according to your requirements)
|
|
Filling type
|
Liquid
|
|
Air pressure
|
0.6-0.8Mpa
|
|
Weight
|
130kg
|
|
Voltage
|
220V/110V; 50hz/60hz
|
|
Size
|
1300*800*800mm
|
|
Price
|
1650 USD/unit (Diaphragm pump)
|
Desktop Capping Machine
Introduction
Automatic desktop bottle capping machine has the functions of automatic bottle feeding positioning, automatic cap feeding, automatic capping. It can be linked with filling machine, foil induction sealing machine, labeling machine and other equipment to form a fully automatic filling production line. Widely used in daily necessities, cosmetics, food, chemical and other industries.
Features
1. The machine is programmable controlled by PLC and equipped with touch screen man-machine interface system.
2. It is suitable for all kinds of duck lid, tip cover, spray cover, round cap, pump head and other rotary cover seals, which solves the difficulties of sprinkler he ad and pump head cover.
3. It is convenient and fast to replace bottles.
4. Photoelectric integrating, high degree of Itelligence, no bottle, no capping, fault self-inspection and other tests to ensure production continuity and capping accuracy.
|
Model
|
KF05-CP-D
|
|
Power
|
AV 220/110V 50/60HZ
|
|
Max workable bottles diameter
|
≤100mm, could be customized according to actual situation
|
|
Workable caps diameters
|
20-60mm, could be customized according to actual situation
|
|
Max workable bottles height
|
190mm, could be customized according to actual situation
|
|
Min workable bottles height
|
50mm, could be customized according to actual situation
|
|
Capping speed
|
20-60BPM
|
|
Machine size
|
1070*550*750mm
|
|
Weight
|
75kg
|
|
Price
|
1700 USD/unit
|
Desktop Labeling Machine
Working Principle
* Core principle: the sensor detects the product passing return signal to the control labeling system, PLC signal after processing, at the appropriate time delivering the label attached to the product in the set position, the product flows through the cover label, labels, coated solid , a label attached to the action is completed.
* Procedure: put the product (which can be accessed pipeline) -> product delivery (automatically) -> Products correct (automatically) -> Product Inspection (automatically) -> labeling (automatically) -> Cover standard (automatically ) -> label products have been collected.
Features
1. The whole machine adopts a mature PLC control system to make the whole machine run stably and at high speed.
2. General-purpose bottle separation device, no need for replacement of parts for any diameter bottle shape, quick adjustment and positioning Note: (optional and adjustable rotating wheel included) to achieve the perfect universal bottle labeling machine.
3. Operating system with touch screen control, easy operation, practical and highefficiency. Adopting labeling speed, conveying speed and dividing speed can realizestepless speed regulation and adjust according to need.
Application
* Applicable to round objects and bottom labels for food, cosmetic,chemical and other industries.
* Suitable for round bottle labeling of various sizes. brush buoy body, the label is more firmly attached。
* Optional connection line in the rear section, optionally equipped with a receiving turntable for easy collection, sorting and packaging of finished products.
|
Model
|
KF06-AL-D
|
|
Voltage
|
AC220V 50Hz
AC110V 60Hz |
|
Power
|
400w
|
|
Labeling speed
|
25-50 pcs/min
(related to material and label size) |
|
Labeling accuracy
|
± 1.0mm
(material and label size excluded) |
|
Label roll inner diameter
|
≥φ75mm
|
|
Max label roll out diameter
|
≤φ250mm
|
|
Suitable bottle
|
Φ40mm-100mm(Can be customized according to your requirements)
|
|
Biggest label size
|
W*L 150*180mm(Can be customized according to your requirements)
|
|
Packing size
|
130*80*80cm
|
|
Packing weight
|
130kg
|
|
Price
|
1850 USD/unit
|
Application
This machine is suitable for the filling of liquid, such as juice,water,beer, alcohol, oil. The whole machine with exquisite design,remove unnecessary complexity and heavy machinery. Maintenance and repair no need professionals, as long as the simple adjustment. Four filling heads with high accuracy It is also suitable for assembly line.

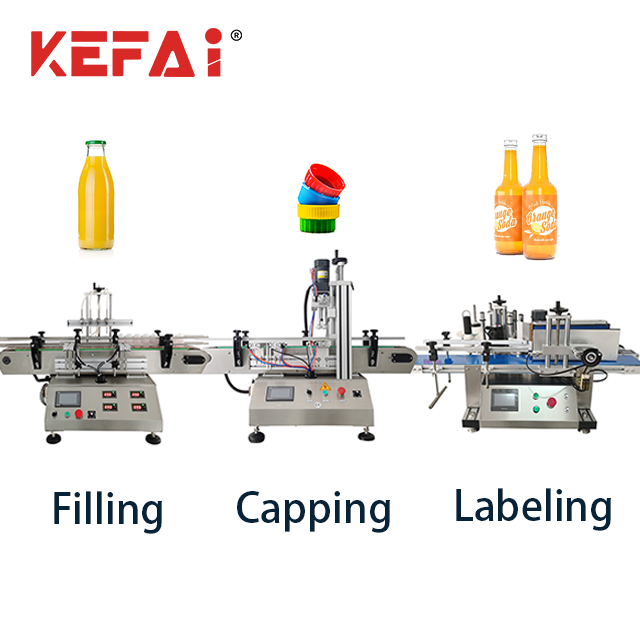

Details images
Desktop Filling Machine
Desktop Capping Machine
Desktop Labeling Machine
