- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220V, 220V/50Hz
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SENWEI
-
Dimension(L*W*H):
-
2.0x1.0x1.35M
-
Weight:
-
1400 KG
-
Max paper size:
-
530*750mm
-
Min Paper Size:
-
210*250mm
-
Operating speed:
-
0-25m/min
-
Maximum height of paper:
-
420mm
-
Feeding mode:
-
automatic
-
With slitting function:
-
with
-
Anti-curl function:
-
with
-
Auto splitting after laminating:
-
Yes
-
Paper thickness:
-
128~350g
Quick Details
-
Packaging Type:
-
case
-
Packaging Material:
-
Wood
-
Driven Type:
-
Hydraulic
-
Voltage:
-
220V, 220V/50Hz
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SENWEI
-
Dimension(L*W*H):
-
2.0x1.0x1.35M
-
Weight:
-
1400 KG
-
Max paper size:
-
530*750mm
-
Min Paper Size:
-
210*250mm
-
Operating speed:
-
0-25m/min
-
Maximum height of paper:
-
420mm
-
Feeding mode:
-
automatic
-
With slitting function:
-
with
-
Anti-curl function:
-
with
-
Auto splitting after laminating:
-
Yes
-
Paper thickness:
-
128~350g
Product Description

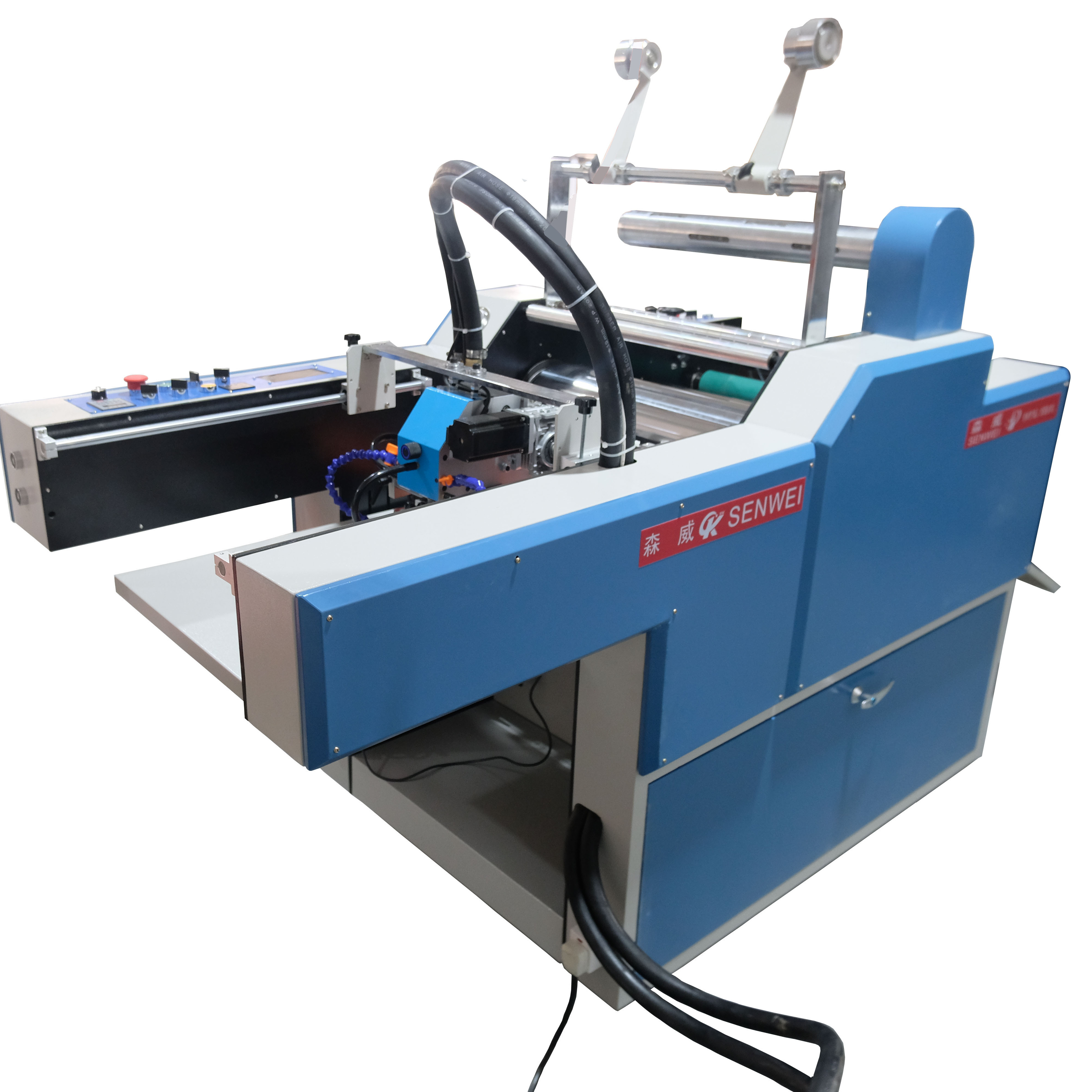

SWFM-540
Wenzhou Senwei Machinery Co., Ltd
Brand: Super Laminator 540 F series
Machine is equipped with no paper miss sensor, which are controlled by photoelectric and mechanical systems. When no paper or paper break occurs, the machine will stop automatically for self-protection.
·Man-machine interface system : color touch screen simplifies the machine operation.
Paper feeding mode: servo motor feeding
Air source: vacuum pump
Release film: air expansion shaft
Release film tightness: pneumatic
Automatic overlap function: Yes
Hydraulic system: one button automatic hydraulic 0-16 (hydraulic pressure can prevent the indentation from bursting and falling off easily after laminating)
Anti-curl function: infinitely adjustable
Heating roller surface: polishing mirror surface heating treatment
Heating roller diameter: 240mm
Pressure roll diameter: 160mm
Introduction of pressure roll: Teflon from the United States combined with silicone (non stick, anti-skid, pressure resistant)
Machine heating mode: double-layer oil heating patent (oil heating makes the coating temperature more stable.)
Speed regulation: frequency conversion
Fastest speed: 0-25m
Welcome to consult.
Product Application
This machine with polyester film as the material,can be widerly used in packing box,food box, books, drawings, advertisements,
certificates, laser glass surface and so on,the printing after the film waterproof,durable ,clear pattern,stereo senseo is strong.
certificates, laser glass surface and so on,the printing after the film waterproof,durable ,clear pattern,stereo senseo is strong.
|
Model
|
SWFM-540F
|
|
Max paper size
|
530*750mm
|
|
Min Paper Size
|
210*250mm
|
|
Operating speed
|
0-25m/min
|
|
Total power
|
4-13kw
|
|
Voltage
|
220V/50Hz
|
|
Feeding mode
|
Automatic
|
|
With slitting function
|
with
|
|
With slitting function
|
with
|
|
Maximum height of paper
|
420mm
|
|
Dimensions(LxWxH )
|
2.0x1.0x1.35M
|
Packaging&Delivery
Packaging Details :wooden case
Delivery Time :15 days after receive full payment
Delivery Time :15 days after receive full payment
Certificate
Related products
Automatic laminating machine
Semi-Automatic
laminating machine
conveyor belt feeding paper
Semi-Automatic laminating machine
conveyor belt with automatic cut-off
FAQ
1. Q: Are you factory or trading company?
A: We are a factory and manufacturer
2.Q: Do you make test before shipment?
A: Before shipment, we always test machine fully.
3.Q: Why don't person reply to me?
A: Our person is 24hours on-line. If nobody reply you , maybe he has other businesses temporarily. So please leave your
requirements on e-mail or chat tool, we will reply you as soon as possible.
4.Q: Can you guarantee your quality?
A:Of course. We are the manufacture factory. More important, we put a high value on our reputation. Best quality is our principle
all the time. You can be assured on our production completely.
5.Q: How do you make your price?
A: We make the price according to our comprehensive costing. And our price will lower than the trade company because we are
manufacture. You will get lower.
A: We are a factory and manufacturer
2.Q: Do you make test before shipment?
A: Before shipment, we always test machine fully.
3.Q: Why don't person reply to me?
A: Our person is 24hours on-line. If nobody reply you , maybe he has other businesses temporarily. So please leave your
requirements on e-mail or chat tool, we will reply you as soon as possible.
4.Q: Can you guarantee your quality?
A:Of course. We are the manufacture factory. More important, we put a high value on our reputation. Best quality is our principle
all the time. You can be assured on our production completely.
5.Q: How do you make your price?
A: We make the price according to our comprehensive costing. And our price will lower than the trade company because we are
manufacture. You will get lower.
