Quick Details
-
Brand Name:
-
iwin
-
Model Number:
-
iwin-stm01
-
Product name:
-
High Quality Apparatus Direct Shear Test Machine For Soil
-
orresponding weight:
-
1.275,2.55,5.1,7.65,10.2kgs
-
Level shear force:
-
Max. 1.2KN
-
Shear rate(mm/min):
-
0.02, 0.8, 2.4
-
Dimension(mm):
-
830 x 530 x 1260 (LxWxH)
-
Vertical load:
-
50KPa,100KPa,200KPa,300KPa,400KPa
-
Lever ratio:
-
1:12
-
Sample area(cm2 ):
-
30, height 2 CM
-
Power source:
-
220V±10%, 50Hz
Quick Details
-
Warranty:
-
1 year
-
Power:
-
Electronic
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
iwin
-
Model Number:
-
iwin-stm01
-
Product name:
-
High Quality Apparatus Direct Shear Test Machine For Soil
-
orresponding weight:
-
1.275,2.55,5.1,7.65,10.2kgs
-
Level shear force:
-
Max. 1.2KN
-
Shear rate(mm/min):
-
0.02, 0.8, 2.4
-
Dimension(mm):
-
830 x 530 x 1260 (LxWxH)
-
Vertical load:
-
50KPa,100KPa,200KPa,300KPa,400KPa
-
Lever ratio:
-
1:12
-
Sample area(cm2 ):
-
30, height 2 CM
-
Power source:
-
220V±10%, 50Hz

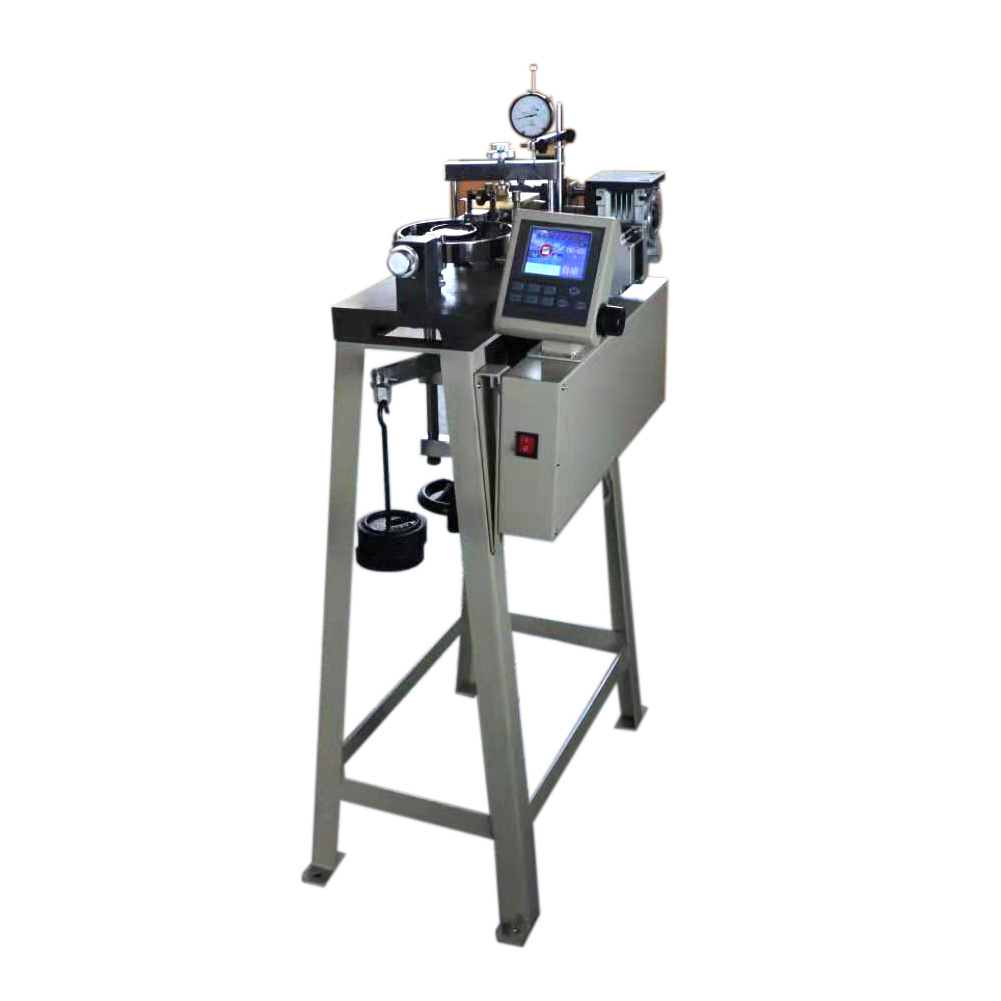

New design Soil Strength Testing Digital Direct Shear Test Machine Apparatus
Product Description
The Direct Shear Test is an experimental procedure conducted in geotechnical engineering practice and research that aims to determine the shear strength of soil materials. Shear strength is defined as the maximum resistance that a material can withstand when subjected to shearing.
Generally, the Direct Shear Test is considered one of the most common and simple tests to derive the strength of a soil and can be performed on undisturbed or remoulded samples.
| Model | IWIN-STM01 |
| Vertical load | 50KPa, 100KPa , 200KPa , 300KPa , 400KPa |
| Corresponding weight | 1.275,2.55,5.1,7.65,10.2kgs |
| Lever ratio | 0.05 |
| Level shear force | Max. 1.2KN |
| Sample area(cm2 ) | 30, height 2 CM |
| Shear rate(mm/min) | 0.02, 0.8, 2.4 |
| Power source | 220V±10%, 50Hz |
| Dimension(mm) | 830 x 530 x 1260 (LxWxH) |
| Net Weight | 80 Kg |
