Quick Details
-
Dimension(L*W*H):
-
4000*1750*2450mm
-
Weight:
-
5.8 KG
-
Product name:
-
Water Wells Drilling Rigs
-
Drilling depth:
-
200m
-
Hole diameter(mm):
-
110-305 mm
-
Working Pressure(bar):
-
10-24bar
-
Rotating torque:
-
5600N.m / 2800N.m
-
Rotate speed:
-
0-80r/min
-
Winch Pull up Force:
-
1.5T
-
Walking speed:
-
2.5KM/H
-
Climbing Ability:
-
25°
-
Drill pipe diameter:
-
76-89
Quick Details
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
ABT
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
4000*1750*2450mm
-
Weight:
-
5.8 KG
-
Product name:
-
Water Wells Drilling Rigs
-
Drilling depth:
-
200m
-
Hole diameter(mm):
-
110-305 mm
-
Working Pressure(bar):
-
10-24bar
-
Rotating torque:
-
5600N.m / 2800N.m
-
Rotate speed:
-
0-80r/min
-
Winch Pull up Force:
-
1.5T
-
Walking speed:
-
2.5KM/H
-
Climbing Ability:
-
25°
-
Drill pipe diameter:
-
76-89
Product Description

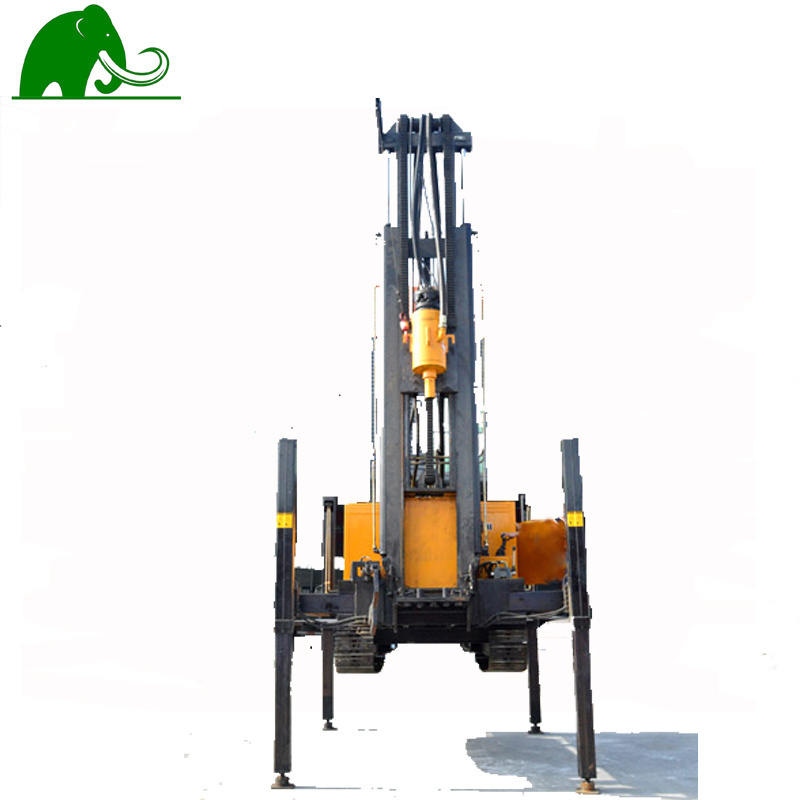

Water Wells Drilling Rigs
FY series deep(water) well-drilling rig uses full hydraulic control, and the Top drive to drive the rotation of drilling tools
with very high drilling efficiency.
with very high drilling efficiency.
Reasonable overall layout uses the tractor-mounted or full ground chassis for transportation with good maneuverability.
Very flexible in difficult roads and can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, the shallow layer of shale gas, terrestrial heat, etc, and can also be used for coal-mine gas exploitation salvage work.
The top-mounted driving head principal shaft has a great drift diameter, suitable for many kinds of construction work such as slurry drilling, air drilling, and air foam drilling, meeting the demands for well-drilling at different terrain strata.
Details Images
Specification
|
Water Wells Drilling Rigs
|
|
|
|
type
|
FY200
|
|
|
The weight
|
5.8T
|
|
|
Dimension
|
4000*17500*2450mm
|
|
|
The hole diameter
|
140-305mm
|
|
|
Drilling depth
|
200m
|
|
|
One-time advance length
|
3.4m
|
|
|
Walking speed
|
2.5KM/H
|
|
|
Climbing angles
|
30
|
|
|
Power
|
65-70KW
|
|
|
Using air pressure
|
1.7-3.0MPA
|
|
|
Air consumption
|
17-30
|
|
|
Drill pipe length
|
1.5m 2.0m 3.0m
|
|
|
Drill pipe diameter
|
76mm,89mm,
|
|
|
Rig lifting force
|
12T
|
|
|
Swing speed
|
45-70rpm
|
|
|
Swing torque
|
3500-4800N.m
|
|
