Quick Details
-
Brand Name:
-
Shenchen
-
Model Number:
-
LabF3-III
-
Place of Origin:
-
Hebei, China
-
Structure:
-
Peristaltic Pump
-
Power:
-
<80W
-
motor:
-
Closed-loop stepper motor
-
Model:
-
LabF3-III
-
Flow Rate:
-
0.0053-1808mL/min
-
Speed:
-
0.1-350rpm
-
Speed Resolution:
-
0.01rpm
-
Pump Head:
-
Easypump
-
Tubing Size:
-
13#, 14#, 15#, 24#, 25#, etc
-
Control Method:
-
Touch Screen
-
Certification:
-
RoHS, CE
Quick Details
-
Application:
-
Food and Beverage Industry, Industrial Utilities, wastewater treatment
-
Pressure:
-
Low Pressure
-
Voltage:
-
220v/110v
-
Brand Name:
-
Shenchen
-
Model Number:
-
LabF3-III
-
Place of Origin:
-
Hebei, China
-
Structure:
-
Peristaltic Pump
-
Power:
-
<80W
-
motor:
-
Closed-loop stepper motor
-
Model:
-
LabF3-III
-
Flow Rate:
-
0.0053-1808mL/min
-
Speed:
-
0.1-350rpm
-
Speed Resolution:
-
0.01rpm
-
Pump Head:
-
Easypump
-
Tubing Size:
-
13#, 14#, 15#, 24#, 25#, etc
-
Control Method:
-
Touch Screen
-
Certification:
-
RoHS, CE
Product Description
LabF3-III Peristaltic Pump Features
●
Imported 4.3'' industrial grade color LCD screen dispaly.
●
Dispensing volume, dispensing time, pause time and copy numbers can be preset.
●
Functions of intelligent calibration and online micro adjusting.
●
ABS engineering plastic shell.
●
The pump can store 60 commonly used filling modes.
●
Back suction angle setting.
● Two dispensing modes: volume dispensing and speed dispensing.
Industry Application
● Pharmaceutical machine, filling machine supporting.
● Medicine, cosmetics, food and beverage dispensing.

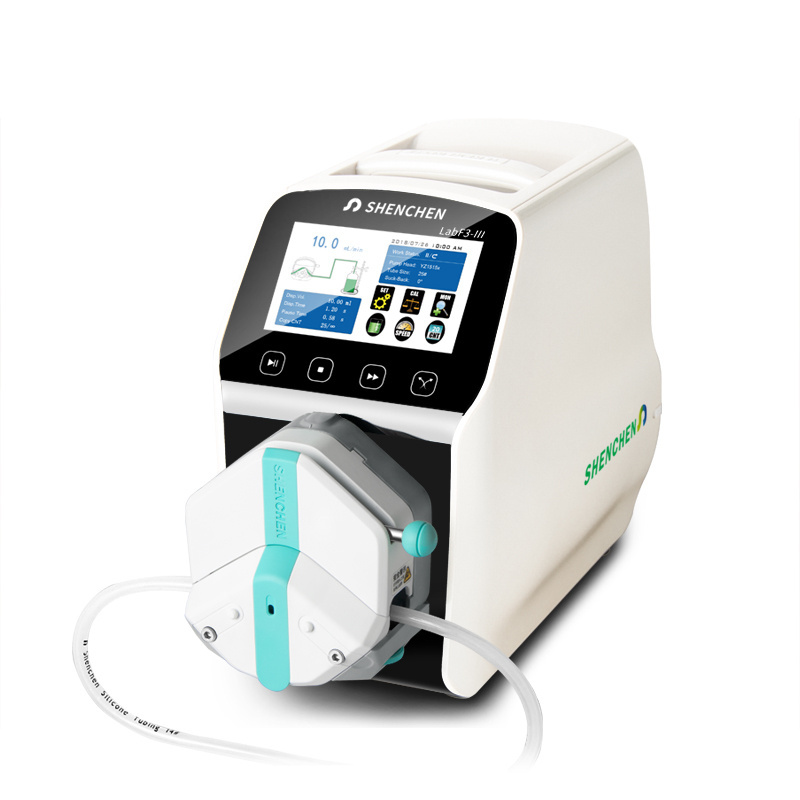

Product Introduction
LabF3-III intelligent type dispensing peristaltic pump, with ABS engineering plastic shell and add UV spray coating to have anti-static function. The working status, dispensing data, setting parameters and system configuration are displayed in the same screen. The pump can be connected with foot pedal switch or switch signal to realize remote control.
OSD
Detail
Product Dimension (unit:mm)
Pump Head
Pump Head
|
Pump Head
|
Single/Dual Channel
|
Tubing Wall Thickness(mm)
|
Pressure Adjustable
|
|
EasyPumpⅠ
|
Single channel
|
1.6
|
No
|
|
EasyPumpⅡ
|
Single channel
|
2.4
|
No
|
|
EasyPumpⅤ
|
Dual channel
|
1.6
|
No
|
|
EasyPumpⅢ
|
Single channel
|
1.6
|
Adjustable
|
|
EasyPumpⅣ
|
Single channel
|
2.4
|
Adjustable
|
|
EasyPumpⅥ
|
Dual channel
|
1.6
|
Adjustable
|
Product Parameters
|
Flow rate
|
0.0053~1808 mL/min
|
|
Speed range
|
0.1~350 rpm
|
|
Speed resolution
|
0.01 rpm
|
|
Dispensing volume range
|
0.01~9999.99 mL
|
|
Dispensing volume resolution
|
0.01 mL
|
|
Dispensing time
|
0.1-9999.99s
|
|
Pause time
|
0.1-9999.99s
|
|
Time resolution
|
0.01s
|
|
Copy numbers
|
1-9999 numbers, setting "0" means unlimited
|
|
Back suction angle
|
0-360°
|
|
Dispensing accuracy
|
﹤±0.5%
|
|
Motor type
|
Closed-loop stepper motor
|
|
Display
|
4.3 inch industrial grade true color display
|
|
Control method
|
Touch screen and mechanical keypad
|
|
Keypad lifetime
|
300,000 times
|
|
Start/stop, direction signal
|
Passive switch signal, such as foot pedal switch
Active switch signal: 5V, 12V, 24V for option
|
|
Output interface
|
Output motor working status (Open-collector output)
|
|
Communication interface
|
RS232, RS485 support MODBUS protocol (RTU mode)
|
|
Power supply
|
220V±10% 50Hz/60Hz (standard)
110V±10% 50Hz/60Hz (optional)
|
|
Drive dimension
|
259mm×157mm×237mm (L×W×H)
|
|
Dirve weight
|
4.40 kg
|
|
Power consumption
|
﹤80W
|
|
Environment temperature
|
0-40℃
|
|
Relative humidity
|
﹤80%
|
