Quick Details
-
Repeatability:
-
0.005
-
Net weight:
-
2KG
-
Air pressure:
-
6-9 bar
-
Clamping force at 6bar:
-
16KN
-
After Warranty Service:
-
Video technical support
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Video technical support
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Weight (KG):
-
2.5
-
Brand Name:
-
WARWICK
-
Repeatability:
-
0.005
-
Net weight:
-
2KG
-
Air pressure:
-
6-9 bar
-
Clamping force at 6bar:
-
16KN
-
After Warranty Service:
-
Video technical support
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Video technical support
The cost not include clamp pin (DCPA23),pls kindly click the following link to purchase clamp pin separately:

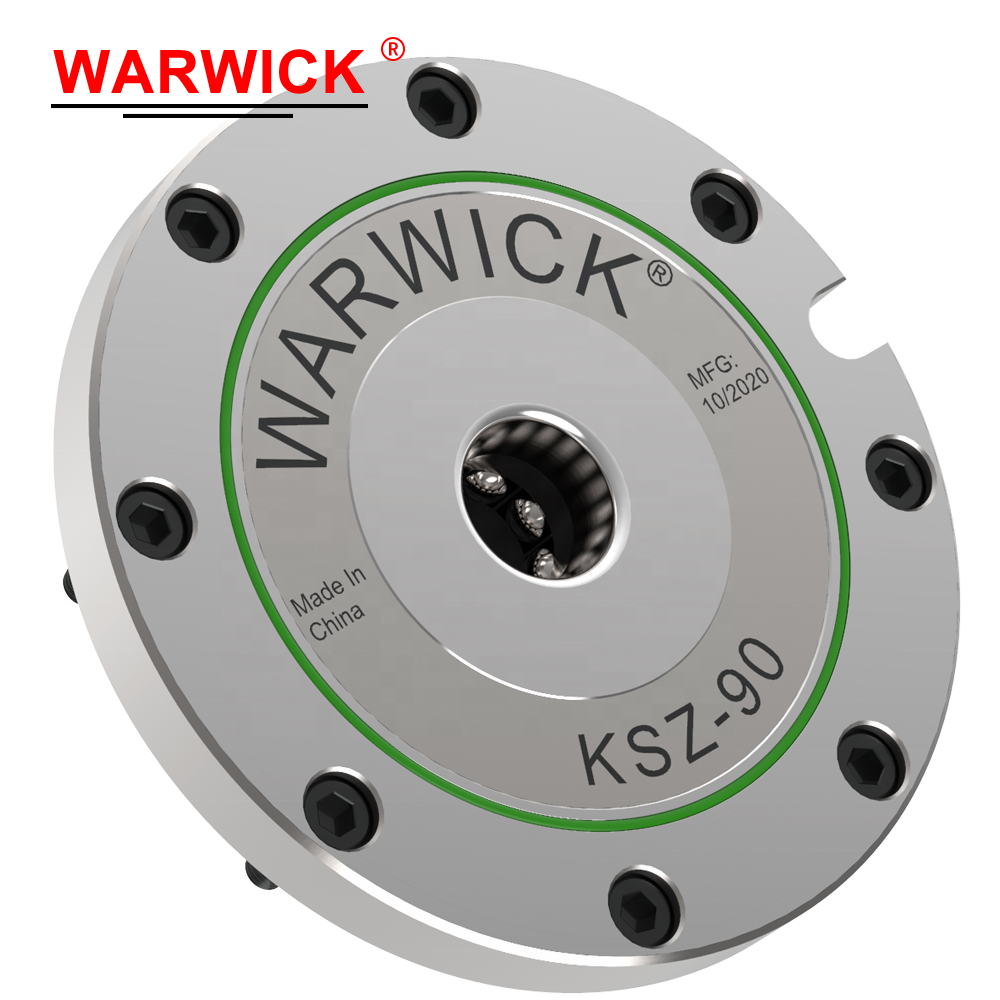

KSZ90 zero point clamping quick-change pallet system
Achieve the perfect connection between machine table and clamping device. Through μ-exact fixing, positioning, and clamping, you will increase the efficiency of your production in a single operation.
Lower your set-up times and costs by up to 90%.
pallet technology with draw-in forces of 5000 N to 25000 N guarantee maximum flexibility!
The advantage: there is one clamping pin size for all module sizes.
Advantages:
Positioning and clamping in one operation
Workpiece/device changed in seconds
Single interface for all machines
Repeat accuracy < 0.005 mm
Fast with precision to < 0.005 mm
from machine table to the measuring machine and back again
