- Product Details
- {{item.text}}
Quick Details
-
Warranty(Year):
-
2-Year
-
Lamp Luminous Flux(lm):
-
3800
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-35 - 50
-
Working Lifetime(Hour):
-
30000
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SHENDA
-
Model Number:
-
SD05PAB
-
Product name:
-
led drop ceiling light panels 600x600 60w 2x2 led panel light
-
Wattage:
-
20W 30W 42W 48W 60W
-
Size:
-
300X300/600X280/900X280/1200X280/600X600/1200X600
-
Color:
-
White Color
-
CCT:
-
3000K/4000K/5000K/6000K/7000K
-
LED Chip:
-
LEDSMD4014
-
Driver:
-
Lifud Driver
-
Dimmable:
-
0-10V/DALI
-
Thickness:
-
12mm Ultra Slim Led Panel
-
PF:
-
>0.90
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
90
-
Application:
-
Workshop
-
Lamp Body Material:
-
Aluminum Alloy
-
Warranty(Year):
-
2-Year
-
Lamp Luminous Flux(lm):
-
3800
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-35 - 50
-
Working Lifetime(Hour):
-
30000
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SHENDA
-
Model Number:
-
SD05PAB
-
Product name:
-
led drop ceiling light panels 600x600 60w 2x2 led panel light
-
Wattage:
-
20W 30W 42W 48W 60W
-
Size:
-
300X300/600X280/900X280/1200X280/600X600/1200X600
-
Color:
-
White Color
-
CCT:
-
3000K/4000K/5000K/6000K/7000K
-
LED Chip:
-
LEDSMD4014
-
Driver:
-
Lifud Driver
-
Dimmable:
-
0-10V/DALI
-
Thickness:
-
12mm Ultra Slim Led Panel
-
PF:
-
>0.90
PRODUCT DESCRIPTION

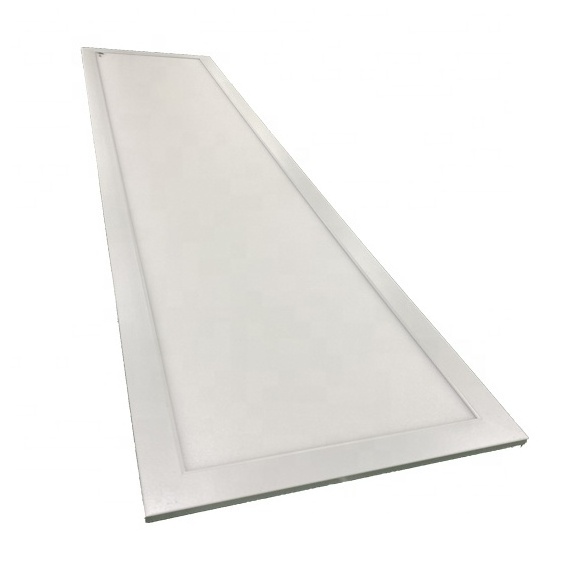

CLEANROOM ULTRA SLIM LED PANEL-SD05PA/B
cleanroom ultra slim led panel are used in where hygiene keeps great importance, such as pharmaceutical industries, laboratories and hospitals as well as food production facilities. This classic type of fixtures represent a high level of dust-proof and water-proof which give a safe use and a cleaning environment to plants. Reliable led engine delivers, symmetric lighting beams and flexible mounting ways make it access to a wide range of application.
|
MODEL
|
MQ-Y42/SD05PA/B
|
|
MQ-Y42/SD05PA/B
|
|
|||
|
WATT
|
42W
|
|
42W
|
|
|||
|
SIZE
|
600X600X12MM
|
|
1200X280X12MM
|
|
|||
|
BODY MATERIAL
|
ALUMINUM ALLOY COATED+PMMA 2.0MM LGP+PS DIFFUSER
|
|
|
|
|||
|
IP RATING
|
IP54/IP20(Front face)
|
|
|
|
|||
|
INPUT
|
220-240VAC/100-277VAC; 50/60HZ
|
|
|
|
|||
|
LED SOURCE
|
EDGELIT JINGRUI LED SMD4014 216PCS
|
|
EDGELIT JINGRUI LED SMD4014 216PCS
|
|
|||
|
DIMMABLE
|
1-10V/10V PMW/DALI DIMMING/2.4G/TUYA DIMMING
|
|
|
|
|||
|
ACCEPT CUSTOMIZED
|
YES
|
|
|
|
|||
|
EMERGENCY TIME
|
90MINS/180MINS FOR OPTION
|
|
|
|
|||
|
CERTIFIATES
|
CE EMC LVD ROHS TUV GS
|
|
|
|
|||
|
WARRANTY
|
2 YEARS
|
|
|
|
|||
|
Model(SD05P)
|
Power(W)
|
Dimension(mm)
|
Lumen(lm)
|
CCT(K)
|
CRI
|
|
MQ-Y60/SD05PAB
|
60W
|
1200X600X12
|
4700
|
3000K/4000K/6000K
|
80
|
|
MQ-Y60/SD05PAB
|
60W
|
1200X280X12
|
5500
|
3000K/4000K/6000K
|
80
|
|
MQ-Y60/SD05PAB
|
60W
|
60X600X12
|
5500
|
3000K/4000K/6000K
|
80
|
|
MQ-Y48/SD05PAB
|
48W
|
1200X280X12
|
4500
|
3000K/4000K/6000K
|
80
|
|
MQ-Y42/SD05PAB
|
42W
|
1200X280X12
|
3800
|
3000K/4000K/6000K
|
80
|
|
MQ-Y42/SD05PAB
|
42W
|
600X600X12
|
3800
|
3000K/4000K/6000K
|
80
|
|
MQ-Y24/SD05PAB
|
24W
|
900X280X12
|
2250
|
3000K/4000K/6000K
|
80
|
|
MQ-Y20/SD05PAB
|
20W
|
600X280X12
|
1800
|
3000K/4000K/6000K
|
80
|
|
MQ-Y14/SD05PAB
|
14W
|
300X300X12
|
1300
|
3000K/4000K/6000K
|
80
|
PRODUCT DETAILS
SD05PA-SREW FIXED INSTALLATION
SD05PB-BRACKET FIXED INSTALLATION
CASES
I
NDUSTRY CLEANROOM LIGHTING CASES
COMPANY INFORMATION
Established in 1994, SUZHOU SHENDA CLEANROOM LIGHTING CO., LTD is a professional manufacturer of cleanroom lighting, mainly producing cleanroom luminaires and various light fixture, and focus on designing and new customization of OEM ODM. SHENDA products have passed CCC, CE TUV GS RoHs certificates. Relying on its advanced equipment, superb exquisite craftsmanship and manchineries as well as its R&D team, SHENDA products have owned customes fond and likeness. around the world.
SHENDA products: cleanroom led panel light, cleanroom luminaires and cleanroom lighting fixtures meets customers need and cleanroom GB stanard in its quality and product design. for example, MQ-Y42/SD14TB CLEANROOM LED PANEL LIGHT is a top opening cleanroom led panel light with an installation of ceiling flush mounting, top opening enables its easily maintenance and its smooth surface makes it easy cleaning, high transfer PC/PMMA diffuser makes it enjoy a good light efficiency and high lumen.Low light decay gives long lifespan and brand leds ensures good light efficiency and high lumen and non-blue ray hazard.
FACTORY AND WORKSHOP
OUR EXHIBITION
WORLD FAIRS: HKTDC, GZ FAIR, MOSCOW PHARMA EXPO, DUBAI EXPO, FRANKFURT ACHEMA GERMANY EXPO, VIETNAM EXPO, SHANGHAI EXPO ETC.
FAQ
Q1.
Can I have a sample order for led light?
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity.
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity.
For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
