Quick Details
-
Place of Origin:
-
GUA
-
Brand Name:
-
HXT
-
Model Number:
-
X96 X6
-
Features:
-
1000M Ethernet
-
Product Name:
-
X96 X6
-
Chipset:
-
RK3566 Quad Core ARM Cor tex A55
-
RAM:
-
8GB
-
ROM:
-
64GB
-
OS Version:
-
Android 11
-
Language:
-
Multi-Language
-
Wi-Fi:
-
IEEE 802.11 b / g / n / ac
-
BT:
-
Support BT4.X
-
Warranty:
-
12 Months
Quick Details
-
Processor Core:
-
Quad Core
-
Support Resolution:
-
8K
-
WiFi:
-
802.11n 2.4G/5GHz
-
Place of Origin:
-
GUA
-
Brand Name:
-
HXT
-
Model Number:
-
X96 X6
-
Features:
-
1000M Ethernet
-
Product Name:
-
X96 X6
-
Chipset:
-
RK3566 Quad Core ARM Cor tex A55
-
RAM:
-
8GB
-
ROM:
-
64GB
-
OS Version:
-
Android 11
-
Language:
-
Multi-Language
-
Wi-Fi:
-
IEEE 802.11 b / g / n / ac
-
BT:
-
Support BT4.X
-
Warranty:
-
12 Months

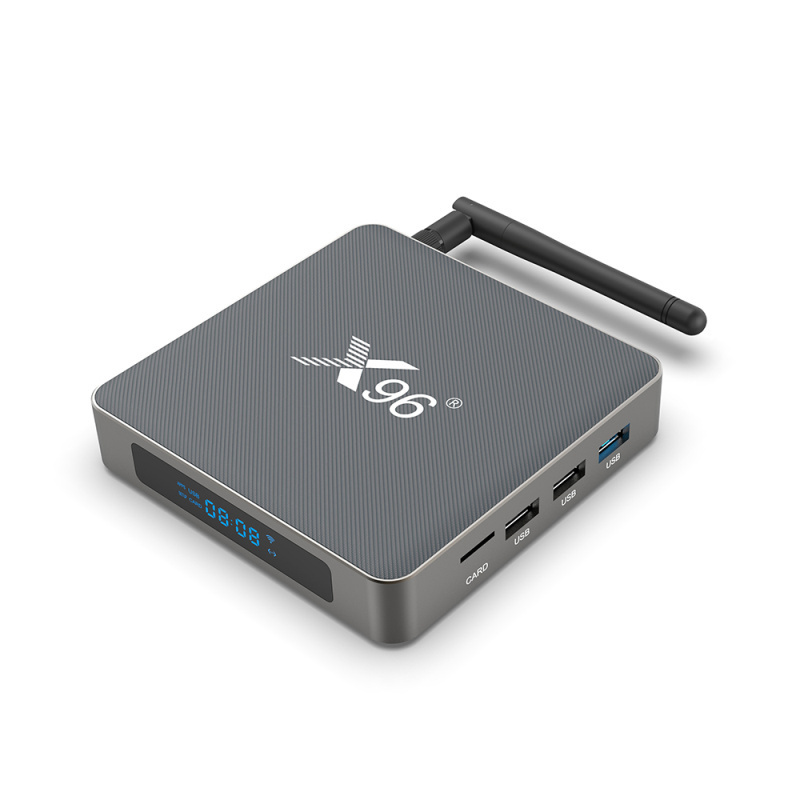

X96 X6 TV BOX Android 11.0 RK3566 Quad Core dual wifi Video HD 8K STB X96 X6
HXT Technology is a professional high-tech enterprise with independent R&D, production likes, marking, after services department.
We are leading OEM &ODM manufacturer for TV Box, Air mouse and Remote Control.
.
Products Description
The set-top box supports customization, if you need customization, please contact us
Product Paramenters
|
Basic parameters
|
|
|
|
|
||||
|
CPU
|
Chipset
|
RK3566
|
|
|
||||
|
|
Architecture
|
Quad Core ARM Cor tex A55
|
|
|
||||
|
GPU
|
Chipset
|
Mali-G52 1-Core-2EE
|
|
|
||||
|
|
Architecture
|
OpenGL ES 1.1/2.0/3.2，OpenCL 2.0，Vulkan 1.1 support
|
|
|
||||
|
NPU
|
|
Neural network acceleration engine with processing performance up to 0.8 TOPS
|
|
|
||||
|
RAM
|
Capacity
|
8GB (2/4/8GB Optional)
|
|
|
||||
|
ROM
|
Capacity
|
64GB (16/32/64/128GB Optional)
|
|
|
||||
|
External storage
|
USB Storage Devices
|
Supported
|
|
|
||||
|
|
Micro SD card
|
Supported
|
|
|
||||
|
Software
|
|
|
|
|
||||
|
Operating system
|
OS Version
|
Android 11
|
|
|
||||
|
|
Language
|
Multi-Language
|
|
|
||||
|
Multimedia
|
Video
|
* Video Decoder
|
|
|
||||
|
|
|
H.265 HEVC/MVC Main10 Profile yuv420@L5.1 up to 4096x2304@60fps
|
|
|
||||
|
|
|
H.264 AVC/MVC Main10 Profile yuv400/yuv420/yuv422/@L5.1 up to 4096x2304@60fps
|
|
|
||||
|
|
|
V P 9 Profile0/2 yuv420@L5.1 up to 4096x2304@60fps
|
|
|
||||
|
|
|
V P 8 verision2,up to 1920x1088@60fps
|
|
|
||||
|
|
|
VC1 Simple Profile@low, medium, high levels, Main Profile@low, medium, high levels, Advanced Profile@level0~3,up to
1920x1088@60fps |
|
|
||||
|
|
|
MPEG-4 Simple Profile@L0~6,Advanced Simple Profile@L0~5,up to 1920x1088@60fps
|
|
|
||||
|
|
|
MPEG-2 Main Profile, low, medium and high levels, up to 1920x1088@60fps
|
|
|
||||
|
|
|
MPEG-1 Main Profile, low, medium and high levels, up to 1920x1088@60fps
|
|
|
||||
|
|
|
H.263 Profile0,levels 10-70,up to 720x576@60fps
|
|
|
||||
|
|
|
* Video Encoder
|
|
|
||||
|
|
|
H.264/AVC BP/MP/HP@level4.2，up to 1920x1080@100fps
|
|
|
||||
|
|
|
H.265/HEVC MP@level4.1, up to 1920x1080@100fps (4096x4096@10fps with TILE)
|
|
|
||||
|
|
|
Support YUV/RGB video source with rotation and mirror
|
|
|
||||
|
|
Audio
|
Supports MP3, AAC, WMA, FLAC, Ogg.
|
|
|
||||
|
|
|
HD JPEG、BMP、GIF、PNG、TIF
|
|
|
||||
|
Network service
|
|
|
|
|
||||
|
Wi-Fi
|
Type
|
Support WiFi IEEE 802.11 b / g / n / ac
|
|
|
||||
|
|
Frequency
|
Support 2.4G and 5G
|
|
|
||||
|
|
Antenna Type
|
Two external antennas
|
|
|
||||
|
BT
|
BT
|
Support BT4.X
|
|
|
||||
|
Interface
|
|
|
|
|
||||
|
Charge
|
DC connector
|
DC IN(5V/2A)
|
|
|
||||
|
Video output
|
HD
|
4K*2K UHD Output, HD 1.4/2.0
|
|
|
||||
|
IR Reciver
|
3.5mm Earphone jack
|
Remote Reciver Connect
|
|
|
||||
|
Micro SD
|
External memory
|
Support
|
|
|
||||
|
USB port
|
USB host
|
1* USB3.0 2* USB2.0 normal type
|
|
|
||||
|
Ethernet
|
Ethernet
|
1000M Ethernet
|
|
|
||||
|
Appearance
|
|
|
|
|
||||
|
Body Material
|
Plastic
|
|
|
|
||||
|
Color
|
Black
|
|
|
|
||||
|
Size
|
105*105*20(mm)
|
|
|
|
||||
|
Weight
|
/
|
|
|
|
||||
|
Cerifications(For Unit)
|
|
|
|
|
||||
|
Standard
|
CE
|
/
|
|
|
||||
|
|
RoHS
|
/
|
|
|
||||
|
Others
|
Optional
|
/
|
|
|
||||
|
Package contents
|
|
Shipping Info
|
|
|
||||
|
User manual
|
*1
|
Gift Box Dimension(mm)
|
|
205*140*50(mm)
|
||||
|
Gift Box
|
*1
|
Carton Size(mm)
|
|
420*270*305 (mm）
|
||||
|
Remote control
|
*1
|
Qty Per Carton(pcs)
|
|
20
|
||||
|
HD external cable
|
*1
|
Gift Box.G.W(gs)
|
|
0.48Kg
|
||||
|
Power adapter
|
*1
|
Export carton (G.W.)(kgs)
|
|
9.6Kg
|
||||
Other Model with Same Chip
X88 PRO 20 RK3566 TV BOX
T95PLUS RK3566 TV BOX
H96 MAX RK3566 TV BOX
OEM
Small batch customization is one of our special services.
Small batch customization supports silk screen logo, please contact our business for details.
In addition, we also support customized retail boxes, modified software and other customized content
Customize Logo Printing
Customize Retail Package
Customize boot logo, UI and others
If you need to re-open the mold and redesign the TV box mold that is unprecedented in the market, we can help you design it, but this requires a large MOQ, please contact our business for related matters
