Quick Details
-
Model Number:
-
LWL-C23
-
Protection Level:
-
IP65
-
Operating Temperature:
-
-10℃ to +80℃
-
Max. Current:
-
10A
-
Name:
-
LWL-C23
-
Operating force:
-
1200g
-
Rating:
-
10A 250VAC
-
Contact form:
-
Double circuit
-
Application:
-
Machine tool equipment,plastic injection machine and other machines
-
Color:
-
Grey
-
Mounting Size:
-
30.2*58.7mm
-
Certification:
-
-
-
Size:
-
206*40*41.5mm
-
Material:
-
Metal
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LEMA
-
Model Number:
-
LWL-C23
-
Protection Level:
-
IP65
-
Operating Temperature:
-
-10℃ to +80℃
-
Max. Current:
-
10A
-
Name:
-
LWL-C23
-
Operating force:
-
1200g
-
Rating:
-
10A 250VAC
-
Contact form:
-
Double circuit
-
Application:
-
Machine tool equipment,plastic injection machine and other machines
-
Color:
-
Grey
-
Mounting Size:
-
30.2*58.7mm
-
Certification:
-
-
-
Size:
-
206*40*41.5mm
-
Material:
-
Metal
Product Description

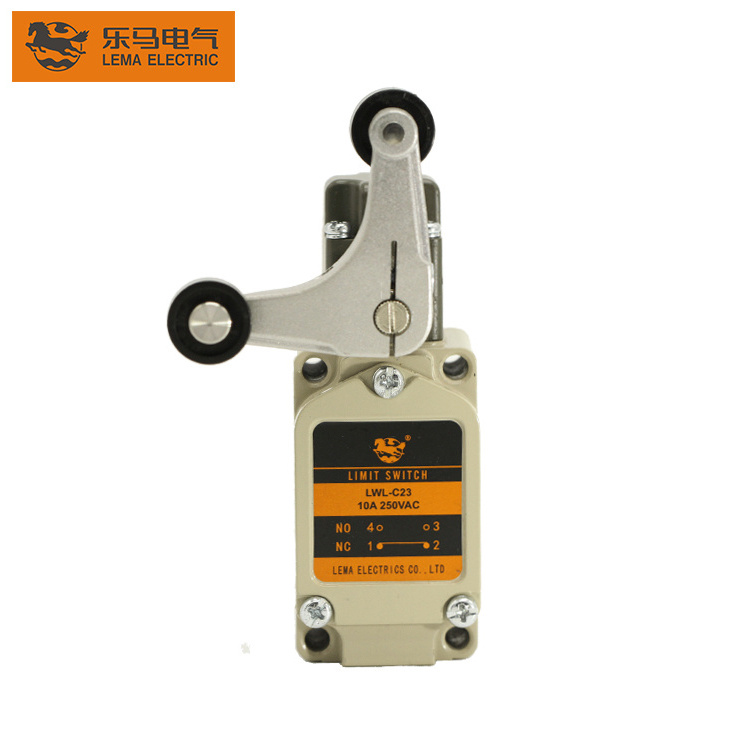

Lema LWL-C23 Fork Lever Lock Hoist Crane 10A 250VAC Limit Switch
|
||
| Brands | LEMA | |
| Model | LWL-C23 | |
| Voltage: | 250/125 VAC | |
| Electric current: | 10 A | |
| Protection level: | Ip65 | |
| Package: | CARTON | |
| Size: |
40*42*102.8mm |
|
| Operating speed | 0.5-50cm/s | |
| Operating frequency | Mechanical:120 times/min | |
| Electrical:30 times/min | ||
| Initial insulation resistance | 100MΩmin.(at 500VDC) | |
| Initial contact resistance | 25MΩmax. | |
|
Dielectric
strength |
Between non-consecutive
terminals |
1,000Vrms, 50/60Hz for 1 min |
|
Between non-current carrying
metal parts and each terminal |
1,500Vrms, 50/60Hz for 1 min | |
|
Between ground and each
terminal |
1,500Vrms, 50/60Hz for 1 min | |
| Vibration resistance | 10-55Hz,1.5mm double amplitude | |
| Shock resistance |
Mechanical durable:1000m/s2{100G,S}max.
Malfunction: 300m/s2{30G,S}max. |
|
|
Operating
life |
Mechanical life | 2,000,000 operations min. |
| Electrical life | 500,000 operations min. | |
About Us
Certifications
Transport
FAQ
|
|
1. How do you control the products’ quality? 100% Auto inspection machine and manual testing together before packing. |
|
2. What's your payment term?
Samples cost can be paid by PayPal, Western Union. |
|
|
3. Would you accept to use our logo?
If you have good quantity, we can make OEM and ODM, customized specification. |
|
|
4. Can I get a sample for reference?
We are glad to send samples for your testing. Samples are free, but you may need to pay the express cost. |
|
|
5. What is your delivery time?
Usually it takes 15-20 working days for productions. |
|
