Quick Details
-
Brand Name:
-
Good machinery
-
Voltage:
-
220V50HZ/380V50HZ
-
Power:
-
7.5KW
-
Dimension(L*W*H):
-
4.1*1.3*2.1(m)
-
Weight:
-
2500 kg
-
Raw material:
-
Wood Pulp
-
Name:
-
Facial Tissue Machine
-
Finished Products:
-
Facial tissue
-
Type:
-
Cylinder
-
Color:
-
Customized Color
-
Capacity:
-
1000pcs/min
-
Products size:
-
200*200mm
-
Application:
-
Tissue Paper Production Line
-
Whatsapp:
-
008615260500791
-
Skype:
-
wu.mavis1
Quick Details
-
Production Capacity:
-
10 sets/month
-
Product Type:
-
Facial tissue machine
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Good machinery
-
Voltage:
-
220V50HZ/380V50HZ
-
Power:
-
7.5KW
-
Dimension(L*W*H):
-
4.1*1.3*2.1(m)
-
Weight:
-
2500 kg
-
Raw material:
-
Wood Pulp
-
Name:
-
Facial Tissue Machine
-
Finished Products:
-
Facial tissue
-
Type:
-
Cylinder
-
Color:
-
Customized Color
-
Capacity:
-
1000pcs/min
-
Products size:
-
200*200mm
-
Application:
-
Tissue Paper Production Line
-
Whatsapp:
-
008615260500791
-
Skype:
-
wu.mavis1
Descriptions:

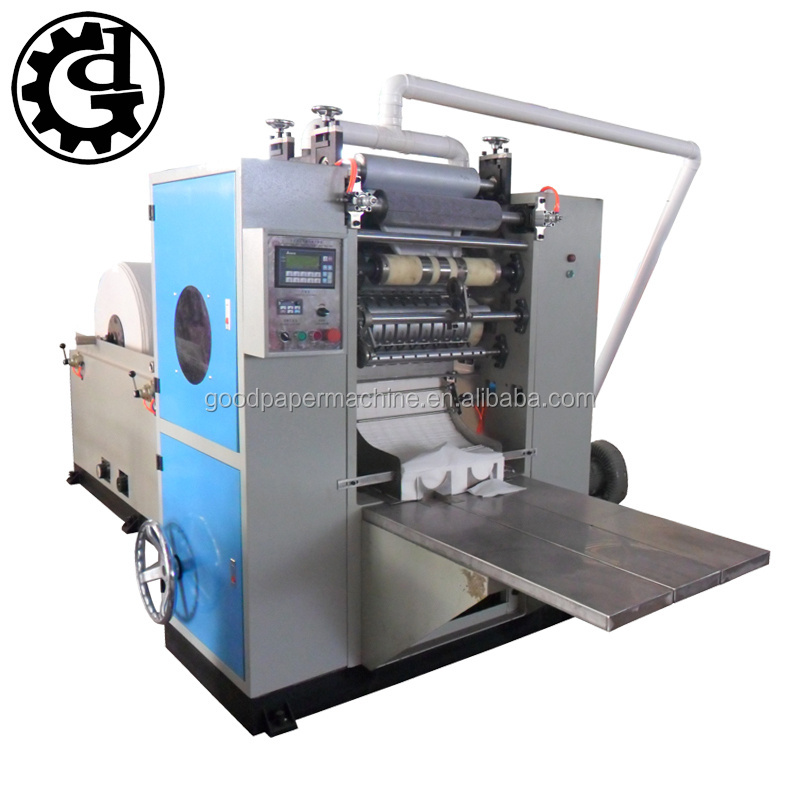

This model is designed to produce ”link type” box-drawing facial tissue, that’s mean, each sheet link together, draw the top tissue , the head of next sheet will come out the box. And this machine can produce either embossed or without embossed for customers’ selection. It has a feature of tight structure, easy operation, stable operation and elaborate designed.
We can make the machine with 2lines, 3 lines ,4 lines, 5 lines, 6 lines, 7 lines and 8 lines .
This machine can equip with single color printing or double color printing unit.
This equipment adopt PLC , frequency control and equip with touch type multi-picture man and computer interface operation system.
Adopt synchronization belt driving, speed-change machine driving for complete machine,which make the machine can suitable for various kind of raw material’s requirement , and improve the quality and efficiency.
The operation flow of this production line is easy, high production efficiency and made perfect production.
Function and Features:
1. Count automatically and output in order
2. Adopting screw turning knife to cut and vacuum absorption to fold.
3. Adopting step less adjusting speed to roll to fix different tension of raw paper.
4.electricty control, easy to operate.
5.This equipment can have embossing unit.
6.Wide range of production width for selection.
7.The machine can equipped with PLC according to requirement.
8.This machine can equip with single color and double color printing unit,the embossing pattern have very vivid designs and beautiful colors.
Technical data:
1.Production speed:60-100m/min, about 1000pcs/min
2.Production open size(mm)200(L)x140-210 W(order by customer)
3.Production folded size(mm)100(L)x140-210 W(order by customer)
4.Power:5.5Kw (380V 50Hz)
5.Overall size(m):4.1x1.3x2.1(LxWxH)
6.Weight: About 3.5T
Specification of raw material:
1.Width of raw paper:400mm-1600mm.
2.Diameter of raw paper:1200mm (order by customer)
3.Thickness of raw paper:14g/ m²-18g/ m²
4.Diameter of paper core: 76.2mm (order by customer)
Video: https://youtu.be/zcGltxVKVfM
