Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WIS Networks
-
Supplier Type:
-
wireless
-
Radio:
-
802.11a/n/ac radio
-
Frequency Range:
-
5.150-5.250GHz
-
Tx Power:
-
26dbm
-
Power:
-
24VDC, 0.5A
-
Antenna:
-
25dBi dish antenna
-
Beamwidth(HPBW) Horizontal:
-
11°
-
Vertical:
-
11°
-
Open space:
-
5-15KM
-
Working Temp:
-
-40 ~ 70°C
-
Interfaces:
-
1x 10/100/1000 Base-T Ethernet
Quick Details
-
Chipset:
-
QCA9563+QCA9886
-
Application:
-
Outdoor
-
Model Number:
-
WIS-D525AC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WIS Networks
-
Supplier Type:
-
wireless
-
Radio:
-
802.11a/n/ac radio
-
Frequency Range:
-
5.150-5.250GHz
-
Tx Power:
-
26dbm
-
Power:
-
24VDC, 0.5A
-
Antenna:
-
25dBi dish antenna
-
Beamwidth(HPBW) Horizontal:
-
11°
-
Vertical:
-
11°
-
Open space:
-
5-15KM
-
Working Temp:
-
-40 ~ 70°C
-
Interfaces:
-
1x 10/100/1000 Base-T Ethernet
Products Description

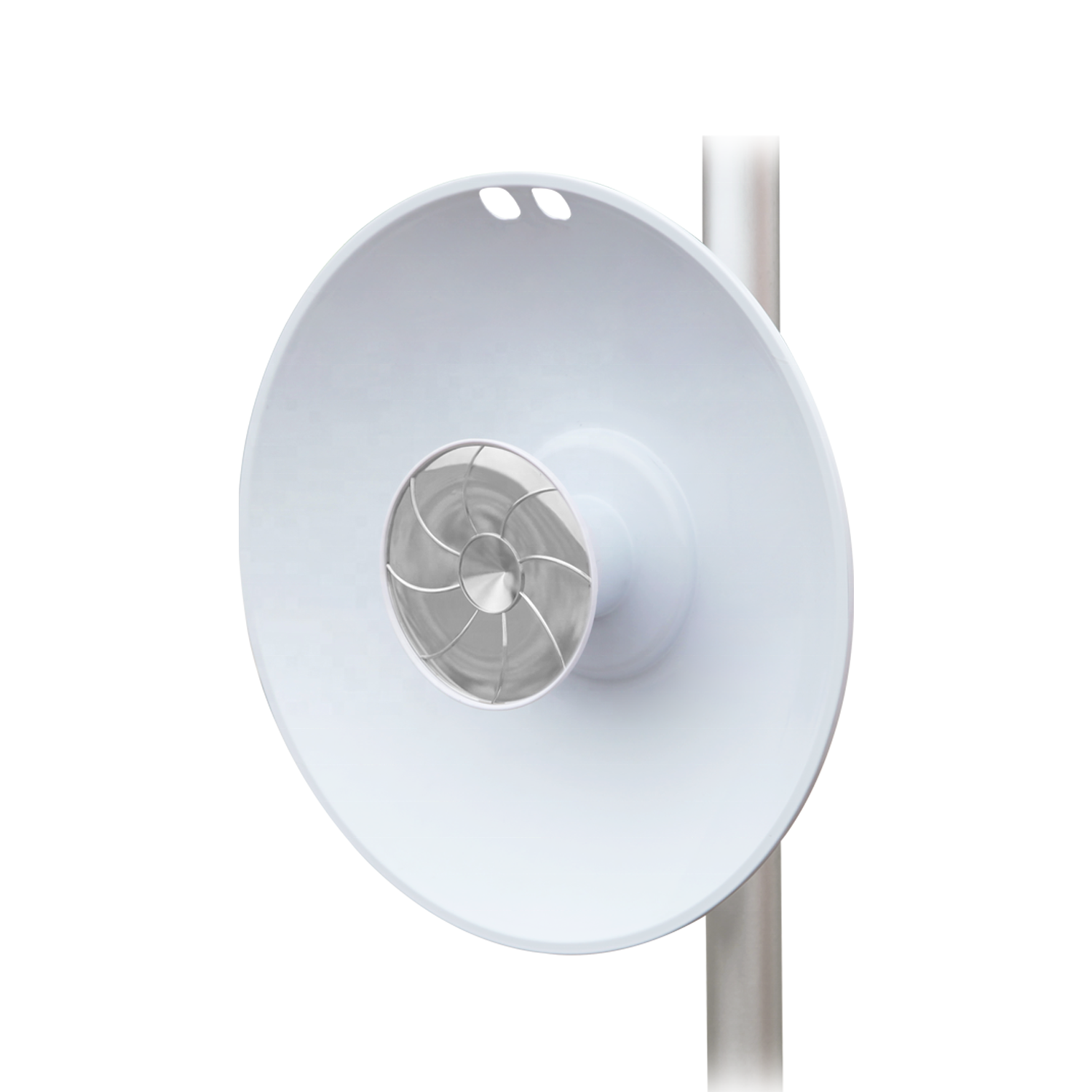

WIS-D525AC is a
867Mbps
2*2 MIMO Hi-Power outdoor wireless dish bridge based on 802.11a/n/ac
technology. It is industry die-cast IP65 design with high performance, cost-effective and dedicated to long
distance wireless network solutions. Featuring the revolutionary WiD technology, WIS-D525AC is fully
compatible with Wisnetworks base station and CPE thus greatly improving the network scalability in
throughput and latency. With 25dBi dual-polarized dish antenna, a pair of WIS-D525AC can easily build 20km+
long range wireless connection and keep a high speed rate. WIS-D525AC is best applied to rural wireless
Internet, wireless backhaul and other industrial wireless solutions.
Features
Incredible Long Range
● Up to 26dbm Tx Power
● 25dBi MIMO Dish antenna
● Wireless Speed up to 867Mbps
● Narrower Beamwidth for noise immunity
Wireless s Solutions r for Surveillance
● Cost-effective passive PoE
● IP65 Waterproof
● Multiple mounting methods
● Extremely Amazing Performance
Full Feature & & Performance
● Full WisOS Support
● Auto-Distance Adjust
● 15km+ Availability
● Fully Managed by WiController
Features and Benefifits
- 25dBi dish antenna to build robust wireless PtP link
- Compliant with 802.11ac/n/a, Wireless speed up to 867Mbps
- Wireless Solutions for Surveillance
-5 kilometers throughput 300Mbps+
- 80/40/20MHz selectable for channel bandwidth
- Easy deployment and adjustment with provided mounting kits
- Passive POE(24VDC) for flflexible deployment
- Weather-proof design for outdoor environment
- Up to16kV ESD protection
Network Diagram
Product Paramenters
|
Radio
|
- 802.11a/n/ac radio
- Wireless Speed up to 867Mbps
- Frequency Range:
- 5.150-5.250GHz
- 5.250-5.350GHz（Support DFS）
- 5.470-5.725GHz(Support DFS)
- 5.725-5.825GHz
- Tx Power up to 26dbm
- Rx Sensitivity
- 300M:-71dBm@10% PER
- 54M:-75dBm@10% PER
- 1M:-95dBm@10% PER
|
|
Antenna
|
- 25dBi dish antenna
- Beamwidth(HPBW) Horizontal:11°，Vertical:11°
- Open space 5-15KM
|
|
Physical Parameters
|
- Dimension: Φ400mm
- Wight: 2.6kg
- Enclosure: Aluminum (Dish)
- ESD Protection: 16kV
- Working Temp: -40 ~ 70°C
- Storage Temp: -40 ~85°C
- Working Humidity: 10%〜95% non-condensing |
|
Interfaces
|
- 1x 10/100/1000 Base-T Ethernet (Gigabit LAN with Passive PoE)
|
|
Security
|
Integrated Firewall
- WPA/WPA2;WPA-PSK/WPA2-PSK (AES/TKIP)
Encryption; 64/128-bit WEP;
|
|
LED
|
- Power：On/Off
- LAN:On/Off/Flashing
- WLAN:On/Off/Flashing
- RSSI Signal:1,2,3
|
|
Power
|
- 24VDC, 0.5A
- Power Consuption: 6W
|
|
Certifification
|
- CE, RoHS
|
|
Package content
|
- WIS-D525AC Radio
- 25dBi Dish
- Quick Setup Guide
- Power Adapter with Passive PoE
- Mounting bracket & kits
|
